3040-00-162-4266
Extension Shaft
3040001624266 001624266 10699496
An item consisting of a length of rigid shafting designed to be coupled to the shaft of items such as variable capacitors, switches, hand cranks and the like. It is specifically designed to increase the length of the original shaft and may also effect a change in the shaft diameter. Includes coupling(s) or has processed end(s) to facilitate the attachment of a coupling device. May have provision for electrically insulating the extension shaft from the other shaft. View more Extension Shaft
May 2023
4
Marketplace 3040-00-162-4266
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-162-4266 1+ Documents (More...)
/fsg-30/fsc-3040/us 3040-00-162-4266 Extension Shaft 3040001624266001624266 Updated Every Day 3040-00
-162-4266 RQST NE Updated Every Day 3040-00-162-4266 RQST Updated Every Day 3040-00-162-4266 RQST NE
Restrictions 3040-00-162-4266
3040-00-162-4266 is a Extension Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3040-00-162-4266
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-00-162-4266
- US Army (A920)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A186
Approved Sources 3040-00-162-4266
- Part Number
- Manufacturer
- Status
- 10699496
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 10699496
- 94117 - Bae Systems Information And (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3040-00-162-4266
- Characteristic
- Specifications
- FIIG
- Specifications
- A530J0

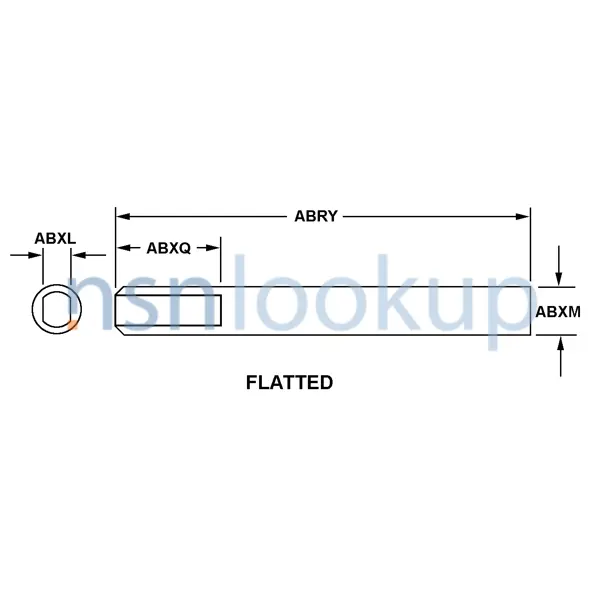

- Distance From Flat To Flat [ABXL]
- 0.200 Inches Minimum And 0.220 Inches Maximum
- End Type [APTD]
- Processed End
- Flatted Portion Length [ABXQ]
- 0.500 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-S-764,Cond A Fed Spec Single Material Response
- Material [MATT]
- Steel Comp 303
- Style Designator [STYL]
- Flatted
- Length [ABRY]
- 4.000 Inches Nominal
- Shaft End Configuration [ABYD]
- Flatted Round
- Shaft End Design [ABYC]
- Male
- Shaft End Diameter [ABXM]
- 0.250 Inches Nominal
DLA Procurement Analysis 3040-00-162-4266
Management Data 3040-00-162-4266
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 3040-00-162-4266
Freight Information 3040-00-162-4266
3040-00-162-4266 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126900. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING/SHAFTS. 3040-00-162-4266 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65750 which rates the freight between FCL and LCL. 3040-00-162-4266 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-00-162-4266 is not classified as a special type of cargo when transported by water. 3040-00-162-4266 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3040-00-162-4266 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
