3040-00-116-0469
Rigid Connecting Link
3040001160469 001160469 11992 CR5
An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified). View more Rigid Connecting Link
May 2023
8
Marketplace 3040-00-116-0469
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-116-0469 5+ Documents (More...)
NE FedMall Updated Every Day 3040-00-116-0469 RQST NE Updated Every Day 3040-00-116-0469 RQST Updated
Every Day 3040-00-116-0469 RQST NE Related Documents 3040-00-116-0469 5+ Documents ( More... ) https
-8-12 QCA/MTDS22-B-CR5-8-12 A nut, flat on top and bottom having 6 flat sides.
-8-12QCA/MTDS22-B-CR5-8-12 A nut, flat on top and bottom having 6 flat sides.
-8-13 QCA/MTDS22-B-CR5-8-13 QCA1968-1920A A nut, flat on top and bottom having 6 flat sides.
Bushing 3120013103915 013103915,CR5/8 3815 Part NumberManufacturerStatusMTDS22-B-CR5-8 https//www.nsnlookup.com
/U6M815000 48C41372ISSUEC CR5/U6M815000/1 CR5AU6815KC MILC3098 An item which consists of a quartz crystal
/www.nsnlookup.com /fsg-59/fsc-5955/us 5955-01-265-1403 Quartz Crystal Unit 5955012651403 012651403 CR5
Details... 1199-2 PISTON AND LINER,VA 1 EA NS Request Quotation Subscribe to View Vendor Details... 11992
11992 SYQ6063 An item which is mounted on the opening of a hook and prevents slipping and/or load loss
Restrictions 3040-00-116-0469
3040-00-116-0469 is a Rigid Connecting Link that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 3040-00-116-0469
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
Approved Sources 3040-00-116-0469
- Part Number
- Manufacturer
- Status
- 11992
- Manufacturer
- 03476 - Terex Reedrill Dba Reedrill Texoma (Active)
- Primary Buy
- Primary Buy
- CR5
- 03476 - Terex Reedrill Dba Reedrill Texoma (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3040-00-116-0469
- Characteristic
- Specifications
- FIIG
- Specifications
- A524L0
- Body Construction [AZHL]
- Solid
- Body Thickness [ADPR]
- 1.500 Inches Nominal
- Body Width [ADAT]
- 0.438 Inches Nominal
- Material [MATT]
- Steel

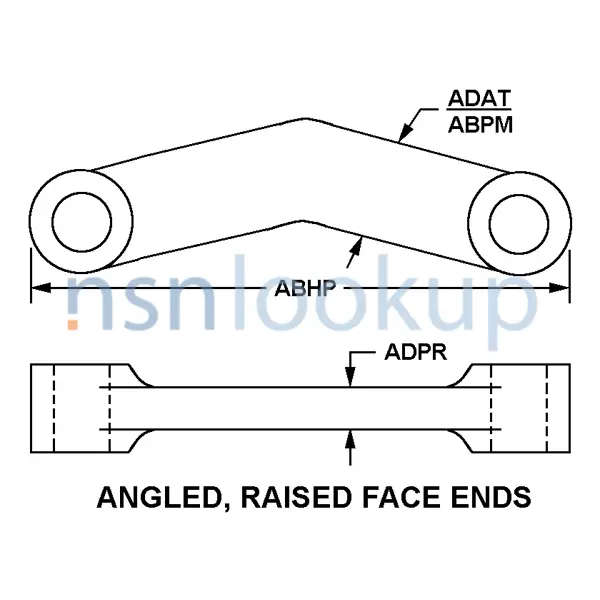

- Link Style [AJXT]
- Angled, Raised Face Ends
- Special Features [FEAT]
- 1 End Clevised,0.656 In.Fork Span Width,1.500 In.Fork Width
- Overall Length [ABHP]
- 7.063 Inches Nominal
DLA Procurement Analysis 3040-00-116-0469
Management Data 3040-00-116-0469
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 3040-00-116-0469
Freight Information 3040-00-116-0469
3040-00-116-0469 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095630. A Sub NMFC of X. It has a NMFC Description of LAP/CONNECTING LINKS/RINGS STEEL. 3040-00-116-0469 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50070 which rates the freight between FCL and LCL. 3040-00-116-0469 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 3040-00-116-0469 is not classified as a special type of cargo when transported by water. 3040-00-116-0469 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3040-00-116-0469
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 5lb to 7.5lb, all dimensions less than 24"
- Above 110G
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 3040-00-116-0469 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
