3040-00-085-9259
Hub Clamp
3040000859259 000859259 10606946-1 C136
An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP. View more Hub Clamp
May 2023
22
Marketplace 3040-00-085-9259
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-085-9259 5+ Documents (More...)
C136 CLAMP,HUB 1 EA NS Request Quotation Subscribe to View Vendor Details... 10606946-1 CLAMP,HUB 10
CLAMP,HUB 1 EA NS Request Quotation Subscribe to View Vendor Details... 10606946-1 CLAMP,HUB 10 C136
/fsg-70/fsc-7025/uk
,RMK91/C136 /www.nsnlookup.com /fsg- Kit 7025993526711993526711,RMK91/C136 . ) https//www.nsnlookup.com
/fsg-70/fsc-7025/uk 7025-99 -352-6711 Kit 7025993526711993526711 ,RMK91/C136 /www.nsnlookup.com /fsg
C136 BELT,V 291 EA NS Request Quotation Updated Every Day C136 RQST NE Updated Every Day 3030-00-234-
-6130/us 6130-01-354-4845 Power Supply 6130013544845 013544845,C136 Upgrade for $1 a day C136 https//
,C136 Upgrade for $1 a day C136 https /fsc-6130/us 6130-01-354-4845 Power Supply 6130013544845 013544845
Plug Connector 5935661479801,C136 Electrical Plug Connector 5935661479801,C136 Connector 5935661479801
C136L22TE95P6W2H8 An electrical fitting with electrical Electrical Plug Connector 5935661479801,C136
Electrical Plug Connector 5935661479801,C136 Connector 5935661479801,C136 C136L22TE95P6W2H8 https your
Restrictions 3040-00-085-9259
3040-00-085-9259 is a Hub Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 3040-00-085-9259
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- BD
- Spain (YB01)
- Effective Date:
- 1 Sep 2008
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 3040-00-085-9259
- Part Number
- Manufacturer
- Status
- 10606946-1
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- C136
- 00328 - Designatronics Incorporated (Active)
- Secondary Buy
- Secondary Buy

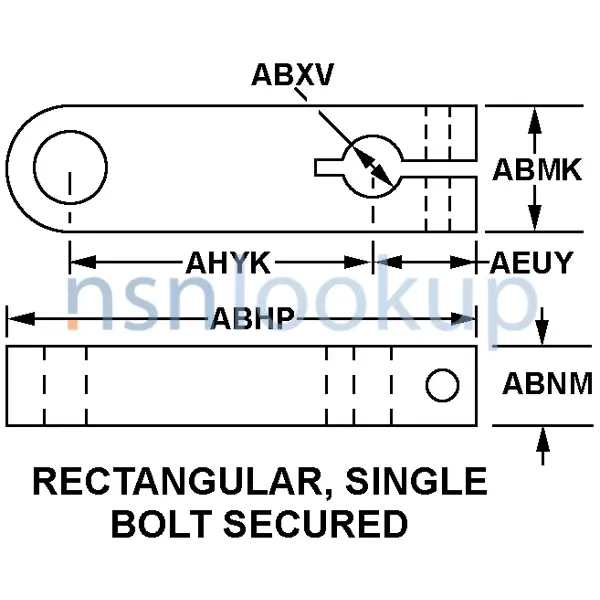

Datasheet 3040-00-085-9259
- Characteristic
- Specifications
- FIIG
- Specifications
- A231A0
- Distance From Bore Centerline To End [AEUY]
- 0.250 Inches Nominal
- Bore Diameter [ABXV]
- 0.1195 Inches Minimum And 0.1200 Inches Maximum
- Center To Center Distance Between Shaft Hole And Bore [AHYK]
- 0.625 Inches Nominal
- Clamp Securing Hole Style [AHYJ]
- Threaded
- Material [MATT]
- Steel Comp 416
- Nominal Thread Size [CQJX]
- 0.086 Inches
- Material Document And Classification [MDCL]
- Fed Std 66 Fed Std Single Material Response Or Aisi 416 Assn Std Single Material Response Or Sae 51416 Assn Std Single Material Response
- Plain Hole Diameter [ADCQ]
- 0.1120 Inches Nominal
- Screw Thread Series Designator [AJYP]
- Unc
- Special Features [FEAT]
- 0.1530 In. Min,0.1590 In. Max Dia Shaft Hole
- Overall Length [ABHP]
- 1.078 Inches Nominal
- Overall Width [ABMK]
- 0.250 Inches Nominal
- Style Designator [STYL]
- Rectangular, Single Bolt Secured
- Surface Treatment [SFTT]
- Passivate
- Thickness [ABNM]
- 0.190 Inches Nominal
DLA Procurement Analysis 3040-00-085-9259
Management Data 3040-00-085-9259
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 3040-00-085-9259
Freight Information 3040-00-085-9259
3040-00-085-9259 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 3040-00-085-9259 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 3040-00-085-9259 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-00-085-9259 is not classified as a special type of cargo when transported by water. 3040-00-085-9259 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
