3020-01-476-2701
Spur Gear
3020014762701 014762701 6009452 3020PL0773133
A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION. View more Spur Gear
Managed by United States
NSN Created on 6 Jul 2000
Data Last Changed
October 2025
October 2025
NATO Update Count
16
16
NATO Data Quality
Marketplace 3020-01-476-2701
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3020-01-476-2701 4+ Documents (More...)
6009452 3020PL0773133 A gear, cylindrical in form, with straight teeth on the outer surface parallel

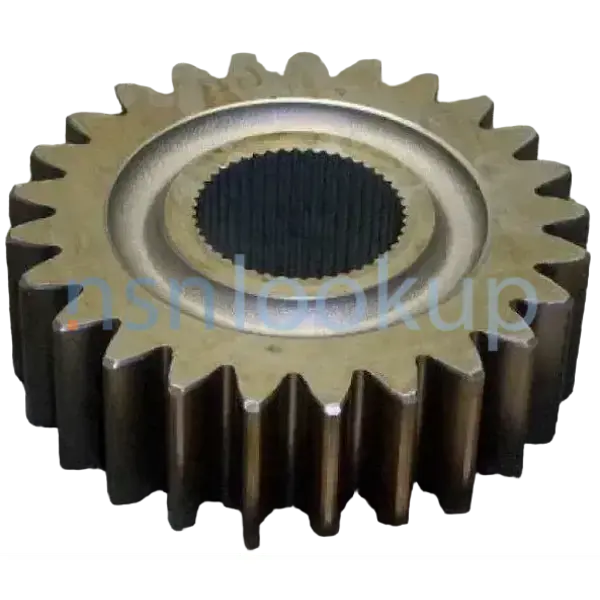

Photo 1/3 NSN 3020-01-476-2701 (Identification) 2/3 NSN 3020-01-476-2701 (Identification) 3/3 -
Updated 45 Days Ago 6009452 GEAR 12 EA NS Request Quotation 6009452 GEAR 6 EA NS Request Quotation Subscribe
Photo 1/3 NSN 3020-01-476-2701 (Identification) 2/3 NSN 3020-01-476-2701 (Identification) 3/3 -
Updated 45 Days Ago 6009452 GEAR 12 EA NS Request Quotation 6009452 GEAR 6 EA NS Request Quotation Subscribe
Day 3020-01-458-9456 RQST Updated Every Day 3020 https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-01-476-2701
Spur Gear 3020014762701 014762701 Subscribe to View Vendor Details... 6009452 GEAR,SPUR https//
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IZDiscontinued-Use 3020-01-476-2701
Spur Gear 3020014762701 014762701 Subscribe to View Vendor Details... 6009452 GEAR,SPUR https//
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IZDiscontinued-Use 3020-01-476-2701
272-6038 3020-00-678-4238 3020-00-053-5135 3020-00-776-8070 3020-00-943-7506 3020-00-817-9538 3020-01-476-2701
272-6038 3020-00-678-4238 3020-00-053-5135 3020-00-776-8070 3020-00-943-7506 3020-00-817-9538 3020-01-476-2701
Restrictions 3020-01-476-2701
3020-01-476-2701 is a Spur Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-01-476-2701
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-476-2701
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Marine Corps (MC40)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 Jun 2004
- Slovenia (WL01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Canada (ZC01)
- Effective Date:
- 1 Jun 2011
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Denmark (ZS01)
- Effective Date:
- 1 Aug 2001
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- Turkey (ZW01)
- Effective Date:
- 1 Mar 2007
Approved Sources 3020-01-476-2701
- Part Number
- Manufacturer
- Status
- 6009452
- Manufacturer
- 34623 - Am General Llc (Active)
- Primary Buy
- Primary Buy
- 3020PL0773133
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 6009452
- 4B014 - American Motors Corp (Active)
- Informational Drawing
- Informational Drawing
Datasheet 3020-01-476-2701
- Characteristic
- Specifications
- FIIG
- Specifications
- A27300
- Material [MATT]
- Steel Comp 4320 Body
- Material Document And Classification [MDCL]
- Astm A322 Comp 432 Assn Std Single Material Response Body
- Teeth Quantity [AJLA]
- 25
- Pressure Angle [CWPP]
- 25.0000 Degrees
- Style Designator [STYL]
- Flush Hub
- Pitch Diameter [AGJS]
- 5.0000 Inches Nominal
- Nominal Outside Diameter [CWCD]
- 5.395 Inches
- Face Nominal Width [CWRM]
- 1.736 Inches
- Bore Style [ANTP]
- Involute Spline Both Ends
- Bore Nominal Diameter [CWRS]
- 1.984 Inches Both Ends
- Spline Quantity [ABSA]
- 46 Both Ends
- Spline Pitch Diameter [BDTX]
- 1.9167 Inches Nominal Both Ends
- Hub Style Designator [CWTR]
- Plain Both Ends
- Hub Nominal Diameter [CWTX]
- 2.500 Inches Both Ends
- Body Style [AAQL]
- Webbed, Solid
- End Item Identification [AGAV]
- Truck, Vehicle System, 1 1/4 Ton (Hmmwv); 23200-01-455-9593
Weapon Systems (WSDC) 3020-01-476-2701
