3020-01-447-1874
Roller Chain Link
3020014471874 014471874 A6Q7-25OSCL ANSI B29.1 25OSCL NO.25 OSCL
An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH. View more Roller Chain Link
May 2023
3
Marketplace 3020-01-447-1874
Request a Quotation from participating marketplace vendors
Related Documents 3020-01-447-1874 1+ Documents (More...)
BUY NE FedMall Updated Every Day 3020-01-447-1874 RQST NE Updated Every Day 3020-01-447-1874 RQST
Updated Every Day 3020-01-447-1874 RQST NE Related Documents 3020-01-447-1874 1+ Documents ( More...
Restrictions 3020-01-447-1874
3020-01-447-1874 is a Roller Chain Link that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-01-447-1874
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-447-1874
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 3020-01-447-1874
- Part Number
- Manufacturer
- Status
- A6Q7-25OSCL
- Manufacturer
- 59076 - Designatronics Inc Stock Drive (Active)
- Primary Buy
- Primary Buy
- NO.25 OSCL
- 71176 - Emerson Electric Co Browning Mfg Div (Active)
- Primary Buy
- Primary Buy
- NO.25 OSCL
- 72625 - Diamond Chain Co Div Of Amsted (Active)
- Primary Buy
- Primary Buy
- ANSI B29.1 25OSCL
- 80204 - American National Standards (Active)
- Secondary Buy
- Secondary Buy
- NO.25 OSCL
- 76474 - Emerson Power Transmission (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- NO.25 OSCL
- 61412 - Rexnord Industries Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3020-01-447-1874
- Characteristic
- Specifications
- FIIG
- Specifications
- A23500
- Material [MATT]
- Steel
- Nominal Pitch Distance [AKGQ]
- 0.2500 Inches

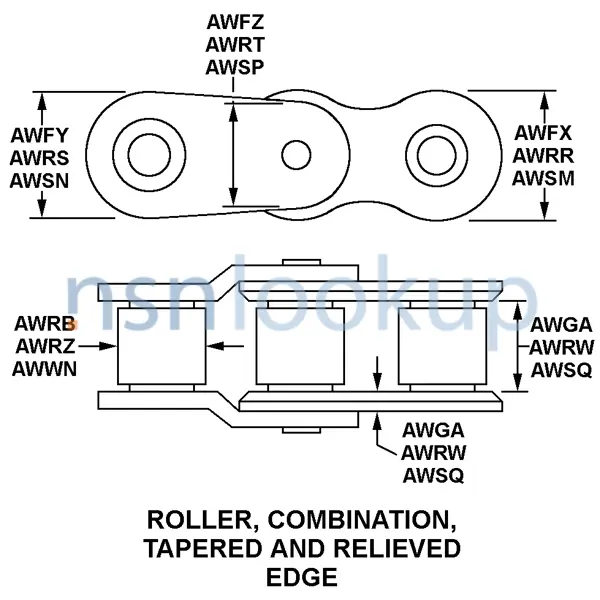

- Link Style [AJXT]
- Roller, Combination, Tapered And Relieved Edge
- Link Plate Nominal Thickness [AWSQ]
- 0.0300 Inches
- Link Roller Nominal Diameter [AWWN]
- 0.1300 Inches
- Link Nominal Width Between Plates [AWWP]
- 0.1250 Inches
- Link Plate Width [AWSM]
- 0.2300 Inches Nominal
- Link Plate Width At Bushing End [AWSN]
- 0.2300 Inches Nominal
- Link Row Quantity [AWFN]
- 1
- Pin Fastening Method [AWFW]
- Riveted
- Minimum Tensile Strength [CQBC]
- 925 Pounds Per Square Inch
- End Item Identification [AGAV]
- Ticonderoga Class Cg(47)
DLA Procurement Analysis 3020-01-447-1874
Management Data 3020-01-447-1874
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3020-01-447-1874
Freight Information 3020-01-447-1874
3020-01-447-1874 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 132330. A Sub NMFC of X. It has a NMFC Description of TRANSMISSIONS/CLUTCHES/PARTS,NOI. 3020-01-447-1874 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64340 which rates the freight between FCL and LCL. 3020-01-447-1874 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 3020-01-447-1874 is not classified as a special type of cargo when transported by water. 3020-01-447-1874 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-01-447-1874
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- No Requirement
- No Requirement
- Not Applicable
- Any bag or sack used by the vendor
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 3020-01-447-1874 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
