Spur Gear
3020014322553 014322553 6009453 RCSK17046 3020PL0773128

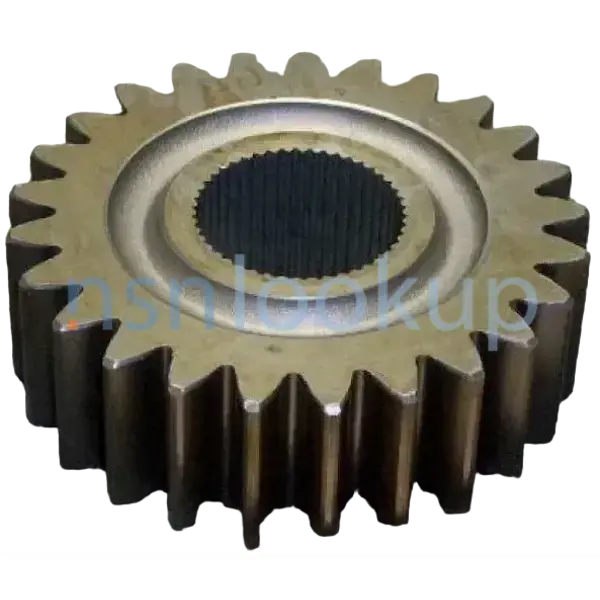

A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION. View more Spur Gear
Managed by United States
NSN Created on 30 May 1996
Data Last Changed
November 2023
November 2023
NATO Update Count
16
16
NATO Data Quality
Marketplace 3020-01-432-2553
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3020-01-432-2553 1+ Documents (More...)
6009453 RCSK17046 3020PL0773128 A gear, cylindrical in form, with straight teeth on the outer surface
(Identification) 1/2 NSN 3020-01-432-2553 (Identification) 2/2 - - 1.
United States (US) 4. 3020-01-432-2553 Marketplace Restrictions Approved Sources Datasheet Management
(Identification) 1/2 NSN 3020-01-432-2553 (Identification) 2/2 - - 1.
United States (US) 4. 3020-01-432-2553 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 3020-01-432-2553
3020-01-432-2553 is a Spur Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-01-432-2553
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-432-2553
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 Jun 2004
- Slovenia (WL01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Canada (ZC01)
- Effective Date:
- 1 Jun 2011
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Denmark (ZS01)
- Effective Date:
- 1 Jul 2000
- Greece (ZU01)
- Effective Date:
- 1 Sep 2007
- Turkey (ZW01)
- Effective Date:
- 1 Mar 2005
Approved Sources 3020-01-432-2553
- Part Number
- Manufacturer
- Status
- 6009453
- Manufacturer
- 34623 - Am General Llc (Active)
- Primary Buy
- Primary Buy
- RCSK17046
- 34623 - Am General Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3020PL0773128
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 3020-01-432-2553
- Characteristic
- Specifications
- FIIG
- Specifications
- A27300
- Material [MATT]
- Steel Comp 8620 Overall
- Material Document And Classification [MDCL]
- Astm A322 Assn Std Single Material Response Overall
- Teeth Quantity [AJLA]
- 13
- Pressure Angle [CWPP]
- 25.0000 Degrees
- Precision Classification [CWWK]
- Quality Number 6
- Style Designator [STYL]
- Protruding Hubs
- Pitch Diameter [AGJS]
- 2.6000 Inches Nominal
- Nominal Outside Diameter [CWCD]
- 3.095 Inches
- Face Nominal Width [CWRM]
- 1.880 Inches
- Nominal Distance Between Body Face And Protruding Hub End [CWQL]
- 0.930 Inches Both Ends
- Bore Style [ANTP]
- Involute Spline Both Ends
- Bore Style [ANTP]
- W/Counterbore Counterbore, First End
- Bore Style [ANTP]
- W/Counterbore Counter Bore, Second End
- Bore Nominal Diameter [CWRS]
- 1.4010 Inches Both Ends
- Spline Quantity [ABSA]
- 32 Both Ends
- Spline Pitch Diameter [BDTX]
- 1.3333 Inches Nominal Both Ends
- Counterbore Nominal Depth [CWTB]
- 0.930 Inches Counterbore, First End
- Counterbore Nominal Depth [CWTB]
- 0.390 Inches Counter Bore, Second End
- Counterbore Nominal Diameter [CWTG]
- 1.487 Inches Both Ends
- Hub Style Designator [CWTR]
- 1 Step Both Ends
- End Nominal Length [CWWH]
- 0.870 Inches Both Ends
- End Nominal Diameter [CWWN]
- 2.000 Inches Both Ends
- First Step Nominal Length [CWWS]
- 0.060 Inches Both Ends
- First Step Nominal Diameter [CWXB]
- 2.500 Inches Both Ends
- Body Style [AAQL]
- Plain, Solid
- End Item Identification [AGAV]
- Truck, Vehicle, System, 1 1/4-Ton (Hmmwv)
