3020-01-414-7959

Internal Gear

3020014147959 014147959 845-6556499 835-6556499 845-6603141-50 6556499 6603141

A gear with teeth formed on the inner surface of a cylinder or cone. View more Internal Gear

Managed by United States

NSN Created on 14 Jun 1995

Data Last Changed
May 2023

NATO Update Count
3

NATO Data Quality

AAQL Style 3B for 3020-01-414-7959 1/2 — NSN 3020-01-414-7959 (Identification) 1/2

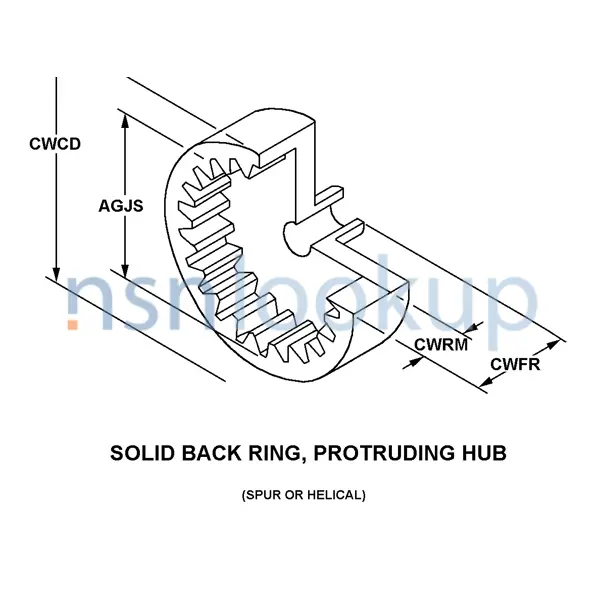

STYL Style 49A for 3020-01-414-7959 2/2 — NSN 3020-01-414-7959 (Identification) 2/2

Marketplace 3020-01-414-7959

Need Help?
Request a Quotation from participating marketplace vendors

FedMall

Updated Every 15 Minutes

3020-01-414-7959 BUY NE FedMall

Updated Every Day

3020-01-414-7959 RQST NE

Updated Every Day

3020-01-414-7959 RQST

Updated Every Day

3020-01-414-7959 RQST NE

Related Documents 3020-01-414-7959 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-30/fsc-3020/us

3020-01-414-7959 Internal Gear 3020014147959 014147959

845-6556499 835-6556499 845-6603141-50 6556499 6603141 A gear with teeth formed on the inner surface
-6800704-050 845-6603141-50 Managed by United States NSN Created on 1 Nov 1993 Data Last Changed https
845-6800704-050 845-6603141-50 Managed by United States NSN Created on 1 Nov 1993 Data Last Changed

https//www.nsnlookup.com
/fsg-30/fsc-3020/us

3020-01-382-3563 Ring Gear 3020013823563 013823563

Upgrade for $1 a day Upgrade your Account Upgrade 3020-01-382-3563Ring Gear3020013823563 013823563 845-6556499
845-6800704-050 845-6603141-50 Managed by United States NSN Created on 1 Nov 1993 Data Last Changed
Internal Gear 3020014147959 014147959 835-6556499 845-6603141-50 6556499 6603141 A gear with teeth

https//www.nsnlookup.com
/fsg-58/fsc-5895/fr

5895-14-255-7109 Electronic Frequency Converter 5895142557109

6603141 A gear with teeth formed on the inner https//www.nsnlookup.com /fsg-44/fsc-4470/us 4470-01-309
Ring Gear 3020013823563 013823563 Account Upgrade 3020-01-382-3563Ring Gear3020013823563 013823563 845-6556499
845-6800704-050 845-6603141 fsg-30/fsc-3020/us 3020-01-382-3563 Ring Gear 3020013823563013823563 845

https//www.nsnlookup.com
/fsg-48/fsc-4820/us

4820-01-415-4349 Valve Gear Operator 4820014154349 014154349

-84 6603141 A hand controlled device maneuvered by a gear designed to open and close the flow control
Ring Gear 3020013823563 013823563 Account Upgrade 3020-01-382-3563Ring Gear3020013823563 013823563 845-6556499
845-6800704-050 845-6603141 fsg-30/fsc-3020/us 3020-01-382-3563 Ring Gear 3020013823563013823563 845

https//www.nsnlookup.com
/fsg-44/fsc-4470/us

4470-01-309-4635 Hydraulic Actuator 4470013094635 013094635

a day Upgrade your Account Upgrade 4470-01-309-4635Hydraulic Actuator4470013094635 013094635 845-6603141
Electronic Frequency Converter 5895142557109 Hydraulic Actuator 6603141 Account Upgrade 3020-01-414-
7959Internal Gear3020014147959 014147959 845-6556499 835-6556499 845-6603141 https//www.nsnlookup.com

Restrictions 3020-01-414-7959

3020-01-414-7959 is a Internal Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 3020-01-414-7959

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 3020-01-414-7959

US Navy (N9BC)
Effective Date:: 1 Jul 2005
Former MOE Rule:: N9CD
Supplementary Collaborators:: HDJBHX; AMC 2 AMSC G IMC Z IMCACTY HX

Approved Sources 3020-01-414-7959

Part Number
Manufacturer
Status
835-6556499: 53711 - Naval Sea Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
845-6603141-50: 53711 - Naval Sea Systems Command (Active); Secondary Buy; RNCC 5 RNVC 2 DAC E
845-6556499: 53711 - Naval Sea Systems Command (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
6556499: 53711 - Naval Sea Systems Command (Active); Informational Drawing; RNCC D RNVC 9 DAC A
6603141: 53711 - Naval Sea Systems Command (Active); Informational Drawing; RNCC D RNVC 9 DAC A

Datasheet 3020-01-414-7959

Characteristic
Specifications
FIIG: A27300
Body Style [AAQL]: Webbed, Offset, Solid
Bore Nominal Diameter [CWRS]: 4.500 Inches Second End
Bore Style [ANTP]: W/Counterbore Second End
Counterbore Nominal Depth [CWTB]: 0.943 Inches Counter Bore, Second End
Counterbore Nominal Diameter [CWTG]: 4.801 Inches Counter Bore, Second End
End Item Identification [AGAV]: Weapons System Seawolf Class Ssn
Face Nominal Width [CWRM]: 1.630 Inches
First Groove Nominal Diameter [CWYD]: 5.720 Inches Second End
First Groove Nominal Width [CWXY]: 0.120 Inches
Hardness Rating [CQFM]: 28.0 Rockwell C Minimum Body And 48.0 Rockwell C Maximum Body
Hub Style Designator [CWTR]: 2 Grooves Second End
Hub Nominal Diameter [CWTX]: 5.750 Inches Second End
Nominal Distance Between Body Face And Protruding Hub End [CWQL]: 2.894 Inches Second End
Nominal Distance From End To First Groove [CWYL]: 0.390 Inches
Nominal Distance From End To Second Groove [CWZC]: 2.122 Inches
Nominal Outside Diameter [CWCD]: 10.630 Inches
Nominal Overall Length [CWFR]: 5.336 Inches
Material [MATT]: Steel Comp 4140 And Steel Comp 4142 Overall
Material Document And Classification [MDCL]: Astm A322 Assn Std Single Material Response Overall
Pitch Diameter [AGJS]: 9.2500 Inches Nominal
Precision Classification [CWWK]: Accuracy Grade 10
Pressure Angle [CWPP]: 20.0000 Degrees
Second Groove Nominal Width [CWYR]: 0.220 Inches Second End
Second Groove Nominal Diameter [CWYW]: 5.720 Inches Second End
Special Features [FEAT]: Hub End External Threaded 5.750-12 Un-2A, And 60 Splines Between First And Second Groove, Gear Used On Valve Operator
Tooth Form [CWNH]: Stub
Style Designator [STYL]: Solid Back Ring, Protruding Hub
Teeth Quantity [AJLA]: 74
Teeth Type [CWMW]: Spur

Subscribe
View Data

DLA Procurement Analysis 3020-01-414-7959

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 3020-01-414-7959

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Department of the Navy (DN); EA; Subscribe; 1
Oct 2019: Department of the Navy (DN); EA; Subscribe; 1

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

NATO Stock Numbers Related to 3020-01-414-7959

3020-99-557-1525 3020-12-187-5242 3020-66-122-3555 3020-12-170-6241 3020-12-325-5454 3020-99-226-1430 3020-33-207-9954 3020-12-392-9242 3020-12-386-2472 3020-99-425-0510 3020-66-064-5430 3020-99-803-6514 3020-99-829-4379 3020-12-158-5309 3020-12-314-9516 3020-00-517-4305 3020-99-866-4573 3020-00-171-3072

Freight Information 3020-01-414-7959

3020-01-414-7959 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 197339. A Sub NMFC of X. It has a NMFC Description of WHEELS COG/GEAR/PINION I/S. 3020-01-414-7959 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 96710 which rates the freight between FCL and LCL. 3020-01-414-7959 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-01-414-7959 is not classified as a special type of cargo when transported by water. 3020-01-414-7959 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 3020-01-414-7959

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 12.0" H x 12.0" W x 7.0" L; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; --; --; Any Suitable Fiber Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --; No Requirement
