3020-01-389-9652

Internal Gear

3020013899652 013899652 801-6406709 FIND 62 211041106 801-6406709

A gear with teeth formed on the inner surface of a cylinder or cone. View more Internal Gear

Managed by United States

NSN Created on 8 May 1994

Data Last Changed
November 2023

NATO Update Count
1

NATO Data Quality

AAQL Style 1 for 3020-01-389-9652 1/2 — NSN 3020-01-389-9652 (Identification) 1/2

STYL Style 49C for 3020-01-389-9652 2/2 — NSN 3020-01-389-9652 (Identification) 2/2

Marketplace 3020-01-389-9652

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

801-6406709 GEAR,INTERNAL 44 EA NS

Subscribe to View Vendor Details...

Updated 6 Days Ago

211041106 GEAR, INTERNAL 2 EA NS

801-6406709 FIND 62 GEAR, INTERNAL 2 EA NS

FedMall

Updated Every 15 Minutes

3020-01-389-9652 BUY NE FedMall

Updated Every Day

3020-01-389-9652 RQST NE

Updated Every Day

3020-01-389-9652 RQST

Updated Every Day

3020-01-389-9652 RQST NE

Related Documents 3020-01-389-9652 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-30/fsc-3020/us

3020-01-389-9652 Internal Gear 3020013899652 013899652

801-6406709 FIND 62 211041106 801-6406709 A gear with teeth formed on the inner surface of a cylinder
2 EA NS Request Quotation 801-6406709 FIND 62 GEAR, INTERNAL 2 EA NS Request Quotation FedMall Updated
Every Day 3020-01-389-9652 RQST Updated Every Day 3020-01-389-9652 RQST NE Related Documents 3020-01-

https//www.nsnlookup.com
/fsg-59/fsc-5940/ca

5940-21-104-1106 Electrical Binding Post 5940211041106

to enable JavaScript in your web browser . 5940-21-104-1106Electrical Binding Post5940211041106 211041106
to enable JavaScript in your web browser . 5940-21-104-1106Electrical Binding Post5940211041106 211041106
Internal Gear 3020013899652 013899652 Upgrade your Account Upgrade 3020-01-389-9652Internal Gear3020013899652

https//www.nsnlookup.com
/fsg-51/fsc-5120/ca

5120-21-105-2692 Socket Wrench Socket 5120211052692 211052692

3020013796154 013796154 Upgrade your Account Upgrade 3020-01-379-6154Internal Gear3020013796154 013796154 801-6406709
Internal Gear 3020013796154013796154 Upgrade your https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-01-389-9652
Internal Gear 3020013899652 013899652 www.nsnlookup.com /fsg-30/fsc-3020/us 3020-01-379-6153 Internal

https//www.nsnlookup.com
/fsg-30/fsc-3020/us

3020-01-379-6154 Internal Gear 3020013796154 013796154

for $1 a day Upgrade your Account Upgrade 3020-01-379-6154Internal Gear3020013796154 013796154 801-6406709
-46 211052692 801-6406709 A gear with teeth formed on the inner surface of a cylinder or cone.
Internal Gear 3020013899652 013899652 3020013796154013796154 Upgrade your Account Upgrade 3020-

https//www.nsnlookup.com
/fsg-48/fsc-4820/us

4820-01-379-4447 Valve Opening Indicator 4820013794447

FIND 2 801-6406709-2 801-6406709 An item specifically designed to show the open, intermediate, and closed
An item specifically designed to show the open, intermediate, and closed FIND 2 801-6406709 -2 801-6406709
An item specifically designed to show the open, intermediate, and closed FIND 2 801-6406709 /fsg-30/

Restrictions 3020-01-389-9652

3020-01-389-9652 is a Internal Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 3020-01-389-9652

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 3020-01-389-9652

US Navy (N9BC)
Effective Date:: 1 Jul 2005
Former MOE Rule:: N9CD
Supplementary Collaborators:: HD; AMC 1 AMSC G IMC Z IMCACTY HD

Approved Sources 3020-01-389-9652

Part Number
Manufacturer
Status
801-6406709 FIND 62: 53711 - Naval Sea Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
211041106: 53711 - Naval Sea Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
801-6406709: 53711 - Naval Sea Systems Command (Active); Informational Drawing; RNCC D RNVC 9 DAC A

Datasheet 3020-01-389-9652

Characteristic
Specifications
FIIG: A27300
Body Style [AAQL]: Plain, Solid
Bore Nominal Diameter [CWRS]: 1.719 Inches First End
Bore Nominal Diameter [CWRS]: 3.780 Inches Second End
Bore Style [ANTP]: Straight Spline First End
Bore Style [ANTP]: W/Stepped Counterbore Second End
Counterbore Nominal Diameter [CWTG]: 3.940 Inches Second End
Counterbore Nominal Depth [CWTB]: 0.219 Inches Second End
End Nominal Diameter [CWWN]: 3.500 Inches First End
End Nominal Length [CWWH]: 0.846 Inches First End
First Step Nominal Diameter [CWXB]: 4.498 Inches First End
First Step Nominal Length [CWWS]: 0.219 Inches First End
Flange Nominal Diameter [CWNK]: 5.320 Inches
Flange Nominal Thickness [CWPS]: 0.750 Inches
Hardness Rating [CQFM]: 39.0 Rockwell C Minimum Overall And 42.0 Rockwell C Maximum Overall
Hub Style Designator [CWTR]: 1 Step First End
Nominal Outside Diameter [CWCD]: 5.342 Inches
Nominal Overall Length [CWFR]: 3.940 Inches
Material [MATT]: Steel Overall
Pitch Diameter [AGJS]: 4.2000 Inches Nominal
Pressure Angle [CWPP]: 20.0000 Degrees
Tooth Form [CWNH]: Stub
Spline Quantity [ABSA]: 8 First End

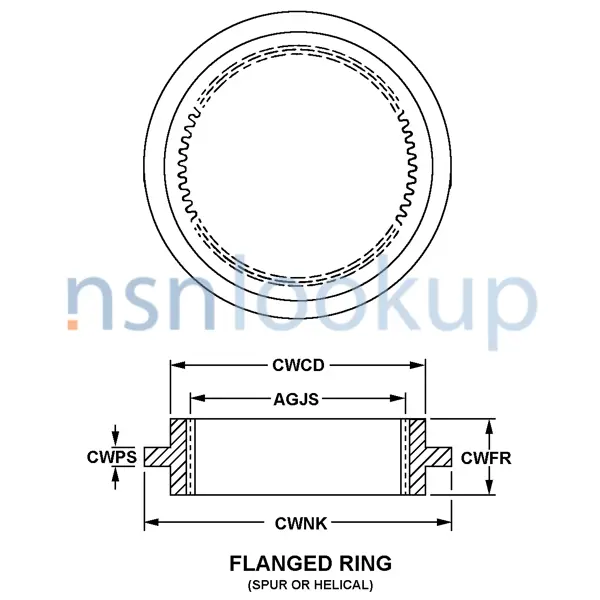

Style Designator [STYL]: Flanged Ring
Teeth Quantity [AJLA]: 42
Teeth Type [CWMW]: Spur

Weapon Systems (WSDC) 3020-01-389-9652

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 3020-01-389-9652

Last Stock Position:: 1 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 3020-01-389-9652

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Department of the Navy (DN); EA; Subscribe; 1
Oct 2019: Department of the Navy (DN); EA; Subscribe; 1

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 3020-01-389-9652

Freight Information 3020-01-389-9652

3020-01-389-9652 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 197339. A Sub NMFC of X. It has a NMFC Description of WHEELS COG/GEAR/PINION I/S. 3020-01-389-9652 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 96710 which rates the freight between FCL and LCL. 3020-01-389-9652 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-01-389-9652 is not classified as a special type of cargo when transported by water. 3020-01-389-9652 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 3020-01-389-9652

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Preservative Coating Only; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: Vendor's Protective Grease or Oil Coating; --; --; --; ASTM - D5118, Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: ASTM - D5118, Fiberboard Box
