3020-01-353-0599
Leaf Chain
3020013530599 013530599 R9481-7 PL52546-01 ITEM 7 70874-8
A flexible mechanical device consisting of flat leaf plates assembled with pins or rivets to form a chain. The chain uses a flanged sheave in lieu of a sprocket. Each end has a termination hole through which securing pins are inserted when the chain terminations are attached. Excludes CHAIN, SILENT; and CHAIN, BLOCK. View more Leaf Chain
May 2023
4
Marketplace 3020-01-353-0599
Request a Quotation from participating marketplace vendors
Related Documents 3020-01-353-0599 1+ Documents (More...)
BUY NE FedMall Updated Every Day 3020-01-353-0599 RQST NE Updated Every Day 3020-01-353-0599 RQST
Updated Every Day 3020-01-353-0599 RQST NE Related Documents 3020-01-353-0599 1+ Documents ( More...
Restrictions 3020-01-353-0599
3020-01-353-0599 is a Leaf Chain that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-01-353-0599
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-353-0599
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 3020-01-353-0599
- Part Number
- Manufacturer
- Status
- PL52546-01 ITEM 7
- Manufacturer
- 07443 - Landoll Corporation (Replaced)
- Original Design
- Original Design
- R9481-7
- 07516 - Manitou North America Inc (Active)
- Secondary Buy
- Secondary Buy
- 70874-8
- 07443 - Landoll Corporation (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3020-01-353-0599
- Characteristic
- Specifications
- FIIG
- Specifications
- A23500
- Material [MATT]
- Steel
- Nominal Pitch Distance [AKGQ]
- 1.000 Inches

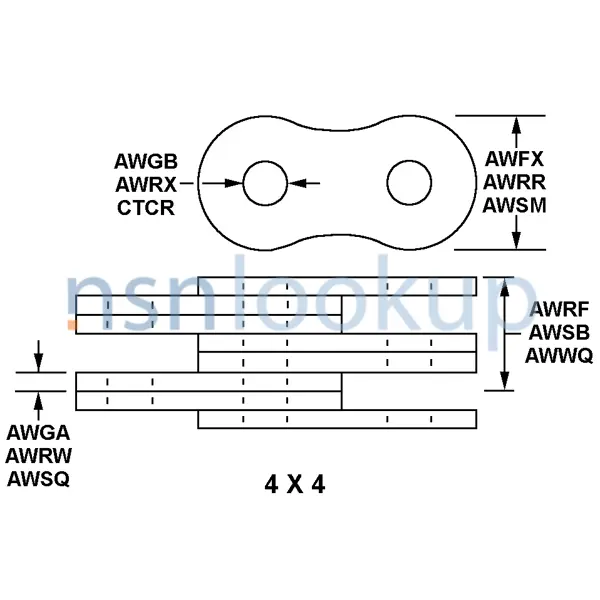

- Link Style [AJXT]
- 4 X 4
- Link Plate Nominal Thickness [AWSQ]
- 0.1560 Inches
- Link Pin Nominal Diameter [CTCR]
- 0.3740 Inches
- Link Nominal Width [AWWQ]
- 1.2480 Inches
- Link Plate Width [AWSM]
- 0.953 Inches Nominal
- Link Row Quantity [AWFN]
- 1
- Pin Fastening Method [AWFW]
- Riveted
- Effective Length [ABNZ]
- 3.5833 Feet Nominal
DLA Procurement Analysis 3020-01-353-0599
Management Data 3020-01-353-0599
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 3020-01-353-0599
Freight Information 3020-01-353-0599
3020-01-353-0599 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 094050. A Sub NMFC of X. It has a NMFC Description of CHAINS NOI I/S PLAIN/GALVANIZED ETC. 3020-01-353-0599 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49180 which rates the freight between FCL and LCL. 3020-01-353-0599 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 3020-01-353-0599 is not classified as a special type of cargo when transported by water. 3020-01-353-0599 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
