3020-01-280-8979
Roller Chain
3020012808979 012808979 WCD203 WC203 C220120
A flexible mechanical device consisting of one or more rows of links used for conveying or power transmission. The link side plates are flat or offset and are spaced apart by rollers, bushings and/or pins. The chain mates with a sprocket with an articulating action. The non-rotating bushing type chain is limited to that designated by the American National Standards Institute as "roller chain". Excludes CHAIN, BLOCK. View more Roller Chain
November 2023
4
Marketplace 3020-01-280-8979
Request a Quotation from participating marketplace vendors
Related Documents 3020-01-280-8979 2+ Documents (More...)
C220120 CHAIN,ROLLER 1 EA NS Request Quotation FedMall Updated Every 15 Minutes 3020-01-280-8979 BUY
//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-01-280-8979 Roller Chain 3020012808979012808979,WCD203 WCD203WC203C220120
Documents 3020-01-111-3970 2+ Documents ( More https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-01-280-8979
Roller Chain 3020012808979 012808979,WCD203 FedMall Updated Every 15 Minutes 3020-01-280-8979 BUY
Restrictions 3020-01-280-8979
3020-01-280-8979 is a Roller Chain that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-01-280-8979
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-280-8979
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 3020-01-280-8979
- Part Number
- Manufacturer
- Status
- WCD203
- Manufacturer
- 07586 - Kornylak Corp (Active)
- Primary Buy
- Primary Buy
- WC203
- 07586 - Kornylak Corp (Active)
- Secondary Buy
- Secondary Buy
- C220120
- 60587 - Federal Equipment Co (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3020-01-280-8979
- Characteristic
- Specifications
- FIIG
- Specifications
- A23500
- Material [MATT]
- Steel

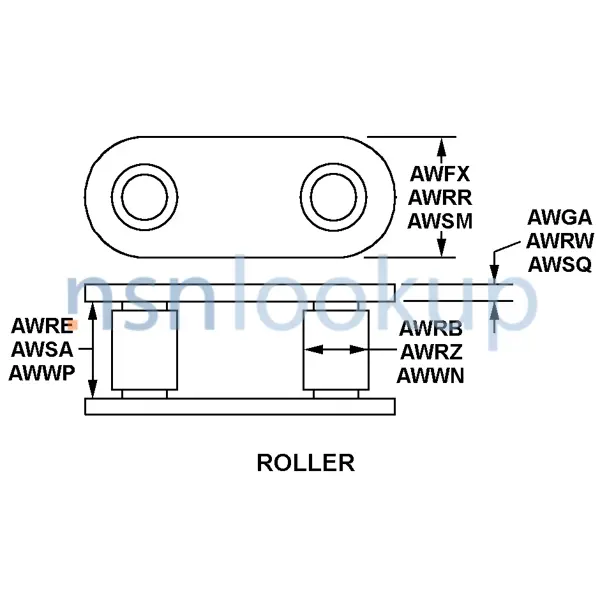

- First Chain Link Style [AWFQ]
- Roller
- First Chain Link Plate Nominal Thickness [AWGA]
- 0.2810 Inches
- First Chain Link Roller Nominal Diameter [AWRB]
- 1.1250 Inches
- First Chain Link Nominal Width Between Plates [AWRE]
- 1.2500 Inches
- First Chain Link Plate Width [AWFX]
- 1.900 Inches Nominal
- Second Chain Link Style [AWFR]
- Pin
- Second Chain Link Plate Nominal Thickness [AWRW]
- 0.2810 Inches
- Second Chain Link Pin Nominal Diameter [AWRX]
- 0.5620 Inches
- Second Chain Link Nominal Width Between Plates [AWSA]
- 1.2500 Inches
- Second Chain Link Plate Width [AWRR]
- 1.900 Inches Nominal
- Link Row Quantity [AWFN]
- 1
- Effective Length [ABNZ]
- 3.3333 Feet Nominal
Weapon Systems (WSDC) 3020-01-280-8979
DLA Procurement Analysis 3020-01-280-8979
- Last Stock Position:
- 19 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3020-01-280-8979
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3020-01-280-8979
Freight Information 3020-01-280-8979
3020-01-280-8979 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093940. A Sub NMFC of X. It has a NMFC Description of CHAINS BELTING/SPROCKET. 3020-01-280-8979 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49140 which rates the freight between FCL and LCL. 3020-01-280-8979 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 3020-01-280-8979 is not classified as a special type of cargo when transported by water. 3020-01-280-8979 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-01-280-8979
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 36.0" H x 2.0" W x 2.0" L
- --
- --
- --
- --
- 36.0" H x 2.0" W x 2.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 3020-01-280-8979 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
