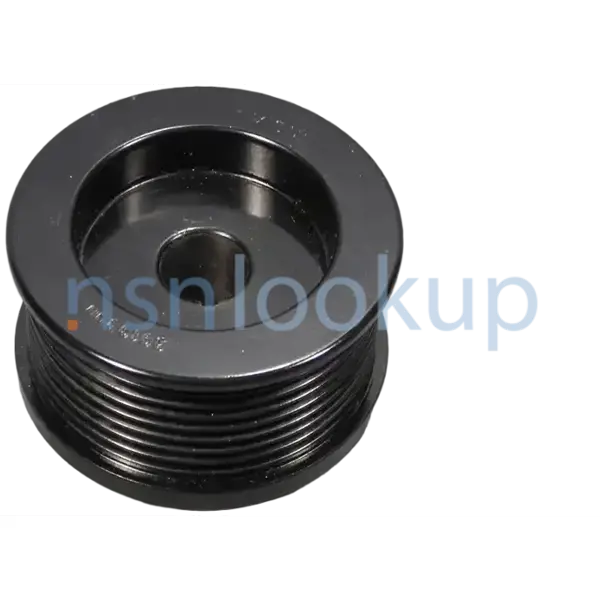

3020-01-271-3832
Groove Pulley
3020012713832 012713832 3919390 3912477
A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE.For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION. View more Groove Pulley
Managed by United States
NSN Created on 23 Jan 1988
Data Last Changed
January 2026
January 2026
NATO Update Count
6
6
NATO Data Quality
Marketplace 3020-01-271-3832
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3020-01-271-3832 2+ Documents (More...)
3919390 3912477 A pulley with one or more grooved faces or rims of the same diameter.
RQST NE Updated Every Day 3912477 RQST NE Updated Every Day 3020-01-271-3832 RQST NE Updated Every Day
3020-01-271-3832 RQST Updated Every Day 3020-01-271-3832 RQST NE Related Documents 3020-01-271-3832
RQST NE Updated Every Day 3912477 RQST NE Updated Every Day 3020-01-271-3832 RQST NE Updated Every Day
3020-01-271-3832 RQST Updated Every Day 3020-01-271-3832 RQST NE Related Documents 3020-01-271-3832
for $1 a day Upgrade your Account Upgrade 5330-01-104-4895Preformed Packing5330011044895 011044895 3912477
Groove Pulley 3020012713832 012713832,3919390 $1 a day Upgrade your Account Upgrade 3020-01-271
-3832Groove Pulley3020012713832 012713832 3919390 3912477 271-3832 Marketplace Restrictions Approved
Groove Pulley 3020012713832 012713832,3919390 $1 a day Upgrade your Account Upgrade 3020-01-271
-3832Groove Pulley3020012713832 012713832 3919390 3912477 271-3832 Marketplace Restrictions Approved
Restrictions 3020-01-271-3832
3020-01-271-3832 is a Groove Pulley that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-01-271-3832
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-271-3832
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZCLBD
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2006
Approved Sources 3020-01-271-3832
- Part Number
- Manufacturer
- Status
- 3919390
- Manufacturer
- 15434 - Cummins Inc. (Active)
- Primary Buy
- Primary Buy
- 3912477
- 15434 - Cummins Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3020012713832
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3020-01-271-3832
- Characteristic
- Specifications
- FIIG
- Specifications
- T353-A
- Style Designator [STYL]
- Plain
- Outside Diameter [ABHE]
- 3.000 Inches Nominal
- Overall Length [ABHP]
- 1.796 Inches Nominal
- Face Width [AQPL]
- 1.650 Inches Nominal
- Hub End Outside Diameter And Location [BYZD]
- 1.182 Inches Nominal Aa End
- Distance From Outside Flange/Rim To Hub End And Location [BYZF]
- 0.125 Inches Nominal Aa End
- Design Form [ARJD]
- Plain
- Lightening Hole [BXSJ]
- Not Included
- Integral Cooling Vane [BXSK]
- Not Included
- Material And Location [ANNQ]
- Steel Overall
- Groove Shape [BXSM]
- V
- Groove Quantity [AXHQ]
- 8
- Groove Depth [ABGA]
- 0.125 Inches Nominal
- Groove Width [ABGF]
- 0.125 Inches Nominal
- V Groove Angle In Deg [AGGS]
- 15.0
- Bore Feature [BYDS]
- Included
- Bearings [AWJQ]
- Not Included
- Bore Type [ASBP]
- Straight
- Bore Diameter [ABXV]
- 0.664 Inches Nominal
- Bore Length [ADGE]
- 1.312 Inches Nominal
- Counterbore Feature [AXND]
- Not Included
- Keying Facility [BSGG]
- Included
- Keying Facility Type [BSGK]
- Keyway
- Quantity [NMBR]
- 1
- Keyway Width [ABRR]
- 0.125 Inches Nominal
- Distance From Center Of Bore To Bottom Of Keyway [AEVF]
- 0.368 Inches Nominal
- Split Hub Feature [BSYG]
- Not Included
Weapon Systems (WSDC) 3020-01-271-3832
DLA Procurement Analysis 3020-01-271-3832
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3020-01-271-3832
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3020-01-271-3832
Freight Information 3020-01-271-3832
3020-01-271-3832 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127320. A Sub NMFC of X. It has a NMFC Description of PULLEYS/SHEAVES,NOI. 3020-01-271-3832 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3020-01-271-3832 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-01-271-3832 is not classified as a special type of cargo when transported by water. 3020-01-271-3832 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-01-271-3832
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 3.0" H x 3.0" W x -- L
- --
- --
- --
- Any Suitable Process
- 3.0" H x 3.0" W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 3020-01-271-3832 35 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7L122FAGPU
- 27 Jul 2022
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7L121FA6HS
- 21 Apr 2021
- Subscribe
- 37
- Subscribe
- Subscribe
- Subscribe
- SPE7L121FA6HS
- 21 Apr 2021
- Subscribe
- 37
- Subscribe
- Subscribe
- Subscribe
- SPE7M119FA0LL
- 13 Dec 2018
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7M119FA958
- 16 Oct 2018
- Subscribe
- 24
- Subscribe
- Subscribe
- Subscribe
- SPE7M119FA689
- 12 Oct 2018
- Subscribe
- 7
- Subscribe
- Subscribe
- Subscribe
- SPE7LX16D002300QQ
- 29 Mar 2017
- Subscribe
- 43
- Subscribe
- Subscribe
- Subscribe
- SPE7LX16D00237318
- 14 Oct 2016
- Subscribe
- 155
- Subscribe
- Subscribe
- Subscribe
- SPE7LX16D00236156
- 17 Aug 2016
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7LX16D00232167
- 17 Feb 2016
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE7LX16D00230601
- 09 Dec 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7LX16D00230503
- 04 Dec 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7LX16D00230303
- 25 Nov 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900544KW
- 24 Jun 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900543YZ
- 11 Jun 2015
- Subscribe
- 24
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900538AG
- 12 Dec 2014
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900537DX
- 14 Nov 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900536FB
- 15 Oct 2014
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900533ZN
- 12 Aug 2014
- Subscribe
- 32
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900529YE
- 16 Apr 2014
- Subscribe
- 44
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900528HJ
- 27 Feb 2014
- Subscribe
- 14
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900522TK
- 25 Jul 2013
- Subscribe
- 86
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900521ME
- 05 Jun 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900521DL
- 28 May 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900520WP
- 08 May 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D9005205B
- 03 Apr 2013
- Subscribe
- 6
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D9005201Q
- 29 Mar 2013
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900519XE
- 25 Mar 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900519VT
- 21 Mar 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D900519GY
- 07 Mar 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D9005195U
- 22 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D9005192X
- 18 Feb 2013
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D9005192N
- 17 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D9005190K
- 14 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX10D9005184W
- 14 Jan 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 3020-01-271-3832 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
