3020-01-270-5861
Roller Chain Link
3020012705861 012705861 15648-001
An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH. View more Roller Chain Link
May 2023
3
Marketplace 3020-01-270-5861
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 3020-01-270-5861 1+ Documents (More...)
5861 BUY NE FedMall Updated Every Day 3020-01-270-5861 RQST NE Updated Every Day 3020-01-270-5861 RQST
Updated Every Day 3020-01-270-5861 RQST NE Related Documents 3020-01-270-5861 1+ Documents ( More...
Restrictions 3020-01-270-5861
3020-01-270-5861 is a Roller Chain Link that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-01-270-5861
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-270-5861
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 3020-01-270-5861
- Part Number
- Manufacturer
- Status
- 15648-001
- Manufacturer
- 11457 - Vermeer Manufacturing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 3020-01-270-5861
- Characteristic
- Specifications
- FIIG
- Specifications
- A23500
- Material [MATT]
- Steel
- Nominal Pitch Distance [AKGQ]
- 4.000 Inches

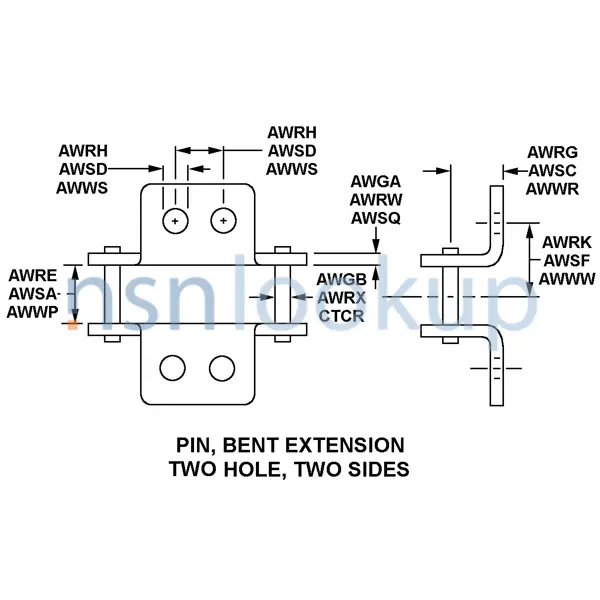

- Link Style [AJXT]
- Pin, Bent Extension Two Holes, Two Sides
Weapon Systems (WSDC) 3020-01-270-5861
DLA Procurement Analysis 3020-01-270-5861
Management Data 3020-01-270-5861
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3020-01-270-5861
Freight Information 3020-01-270-5861
3020-01-270-5861 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 132330. A Sub NMFC of X. It has a NMFC Description of TRANSMISSIONS/CLUTCHES/PARTS,NOI. 3020-01-270-5861 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64340 which rates the freight between FCL and LCL. 3020-01-270-5861 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 3020-01-270-5861 is not classified as a special type of cargo when transported by water. 3020-01-270-5861 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-01-270-5861
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb to 5lb, all dimensions less than 24"
- Above 110G
- MIL-PRF-16173, Cosmoline, Grade 2, Soft Film
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 2, Corrosion Preventive, Solvent Cutback, Cold Application, Soft Film
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- 1/4 inch thick
- --
- No special marking
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 3020-01-270-5861 1 Records
Contracting Technical Data File (CTDF) 3020-01-270-5861 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
