Leaf Chain
3020012569079 012569079 AL-688 X 71 IN. 1986-71IN.
A flexible mechanical device consisting of flat leaf plates assembled with pins or rivets to form a chain. The chain uses a flanged sheave in lieu of a sprocket. Each end has a termination hole through which securing pins are inserted when the chain terminations are attached. Excludes CHAIN, SILENT; and CHAIN, BLOCK. View more Leaf Chain
May 2023
4
Marketplace 3020-01-256-9079
Request a Quotation from participating marketplace vendors
Related Documents 3020-01-256-9079 1+ Documents (More...)
3020-01-256-9079 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-01-256-9079
Leaf Chain 3020012569079012569079 AL-688 X 71 IN. 1986-71IN.
Restrictions 3020-01-256-9079
3020-01-256-9079 is a Leaf Chain that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-01-256-9079
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-256-9079
- National Security Agency (DGX1)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- DAX1
- Supplementary Receivers:
- AX
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 3020-01-256-9079
- Part Number
- Manufacturer
- Status
- AL-688 X 71 IN.
- Manufacturer
- 08481 - Texas Hydraulics, Inc. (Active)
- Primary Buy
- Primary Buy
- 1986-71IN.
- 62080 - Windham Lifts Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 3020-01-256-9079
- Characteristic
- Specifications
- FIIG
- Specifications
- A23500
- Material [MATT]
- Steel
- Nominal Pitch Distance [AKGQ]
- 0.750 Inches
- Link Style [AJXT]

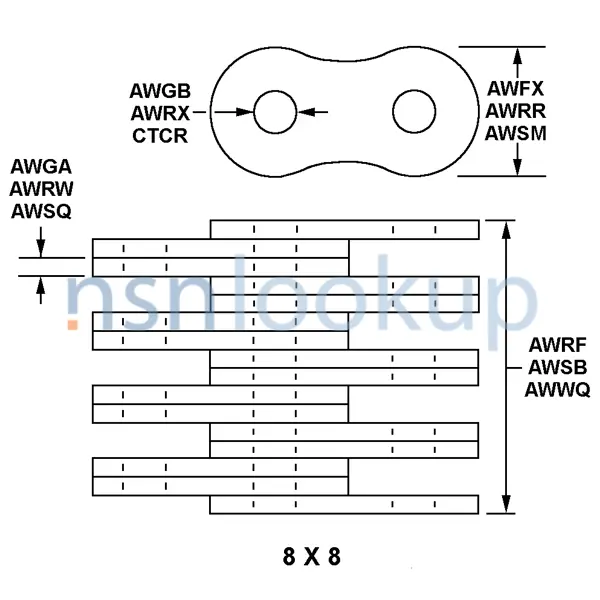

- 8 X 8
