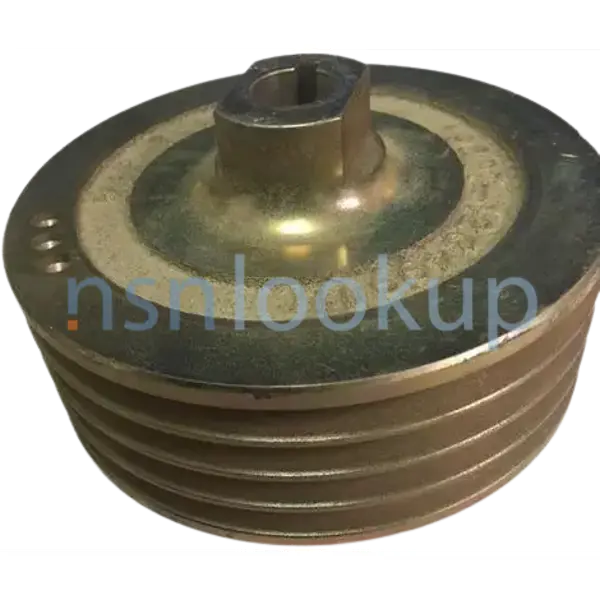

Groove Pulley
3020012487342 012487342 12349901
A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE.For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION. View more Groove Pulley
March 2025
6
Marketplace 3020-01-248-7342
Request a Quotation from participating marketplace vendors
Related Documents 3020-01-248-7342 1+ Documents (More...)
Photo 1/2 NSN 3020-01-248-7342 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 3020-01-248-7342 RQST Updated Every Day 3020-01-248-7342 RQST NE Related
Restrictions 3020-01-248-7342
3020-01-248-7342 is a Groove Pulley that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-01-248-7342
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-248-7342
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Canada (ZC01)
- Effective Date:
- 1 Oct 2001
Approved Sources 3020-01-248-7342
- Part Number
- Manufacturer
- Status
- 12349901
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 3020-01-248-7342
- Characteristic
- Specifications
- FIIG
- Specifications
- T353-A
- Distance From Center Of Bore To Bottom Of Keyway [AEVF]
- 0.463 Inches Nominal
- Distance From Outside Flange/Rim To Hub End And Location [BYZF]
- 0.898 Inches Nominal Aa End And 1.168 Inches Nominal Bb End
- Bearings [AWJQ]
- Not Included
- Bore Diameter [ABXV]
- 0.753 Inches Nominal
- Bore Feature [BYDS]
- Included
- Bore Length [ADGE]
- 1.650 Inches Nominal
- Bore Type [ASBP]
- Straight
- Counterbore Feature [AXND]
- Not Included
- Design Form [ARJD]
- Webbed
- Face Width [AQPL]
- 1.920 Inches Nominal
- Groove Depth [ABGA]
- 0.390 Inches Nominal
- Groove Quantity [AXHQ]
- 4
- Groove Shape [BXSM]
- V
- Groove Width [ABGF]
- 0.344 Inches Nominal
- Hub End Outside Diameter And Location [BYZD]
- 1.110 Inches Nominal Aa End And 1.120 Inches Nominal Bb End
- Outside Diameter [ABHE]
- 6.052 Inches Nominal
- Integral Cooling Vane [BXSK]
- Not Included
- Keyway Width [ABRR]
- 0.189 Inches Nominal
- Keying Facility [BSGG]
- Included
- Keying Facility Type [BSGK]
- Keyway
- Lightening Hole [BXSJ]
- Not Included
- Material And Location [ANNQ]
- Steel Overall Or Iron, Cast Overall
- Pitch Diameter [AGJS]
- 5.272 Inches Nominal
- Quantity [NMBR]
- 1
- Overall Length [ABHP]
- 2.818 Inches Nominal
- Special Features [FEAT]
- Flatted On Two Sides Of Hub 0.1925 In. Deep
- V Groove Angle In Deg [AGGS]
- 38.0
- Web/Spoke Relationship To Face Centerline [BXSH]
- Offset
- Split Hub Feature [BSYG]
- Not Included
- Style Designator [STYL]
- Webbed Or Spoked
