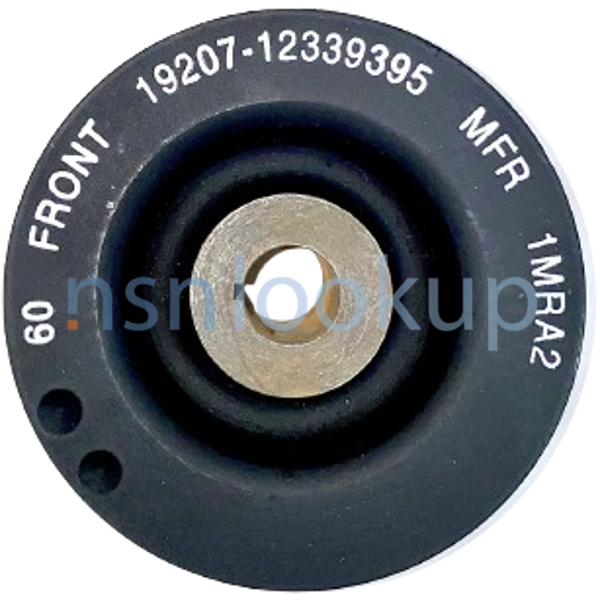

3020-01-198-0633
Groove Pulley
3020011980633 011980633 12339395 5591680
A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE.For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION. View more Groove Pulley
Managed by United States
NSN Created on 4 Jan 1985
Data Last Changed
October 2025
October 2025
NATO Update Count
12
12
NATO Data Quality
Marketplace 3020-01-198-0633
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
12339395 PULLEY 5 EA NS
12339395 PULLEY 209 EA NS
12339395 PULLEY 12 EA NS
12339395 PULLEY 1 EA NS
12339395 PULLEY 34 EA NS
Updated Every Day 3020-01-198-0633 RQST NE
Updated Every Day 3020-01-198-0633 RQST
Updated Every Day 3020-01-198-0633 RQST NE
Related Documents 3020-01-198-0633 5+ Documents (More...)
12339395 5591680 A pulley with one or more grooved faces or rims of the same diameter.
Updated 56 Days Ago 12339395 PULLEY 5 EA NS Request Quotation 12339395 PULLEY 209 EA NS Request Quotation
12339395 PULLEY 12 EA NS Request Quotation 12339395 PULLEY 1 EA NS Request Quotation 12339395 PULLEY
Updated 56 Days Ago 12339395 PULLEY 5 EA NS Request Quotation 12339395 PULLEY 209 EA NS Request Quotation
12339395 PULLEY 12 EA NS Request Quotation 12339395 PULLEY 1 EA NS Request Quotation 12339395 PULLEY
491-2671 3020-00-181-3068 3020-01-060-2547 3020-00-679-9189 3020-00-035-6513 3020-00-186-2840 3020-01-198-0633
491-2671 3020-00-181-3068 3020-01-060-2547 3020-00-679-9189 3020-00-035-6513 3020-00-186-2840 3020-01-198-0633
491-2671 3020-00-181-3068 3020-01-060-2547 3020-00-679-9189 3020-00-035-6513 3020-00-186-2840 3020-01-198-0633
491-2671 3020-01-488-5635 3020-01-060-2547 3020-00-679-9189 3020-00-035-6513 3020-00-186-2840 3020-01-198-0633
Restrictions 3020-01-198-0633
3020-01-198-0633 is a Groove Pulley that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-01-198-0633
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-198-0633
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AJBDAZ
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Aug 2003
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 3020-01-198-0633
- Part Number
- Manufacturer
- Status
- 12339395
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5591680
- 34623 - Am General Llc (Active)
- Secondary Buy
- Secondary Buy
- 3020011980633
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3020-01-198-0633
- Characteristic
- Specifications
- FIIG
- Specifications
- T353-A
- Distance From Center Of Bore To Bottom Of Keyway [AEVF]
- 0.402 Inches Nominal
- Distance From Outside Flange/Rim To Hub End And Location [BYZF]
- 0.140 Inches Nominal Aa End
- Bearings [AWJQ]
- Not Included
- Bore Diameter [ABXV]
- 0.669 Inches Nominal
- Bore Feature [BYDS]
- Not Included
- Bore Length [ADGE]
- 1.340 Inches Nominal
- Bore Type [ASBP]
- Straight
- Counterbore Feature [AXND]
- Not Included
- Design Form [ARJD]
- Webbed
- Face Width [AQPL]
- 1.200 Inches Nominal
- Groove Depth [ABGA]
- 0.438 Inches Nominal
- Groove Quantity [AXHQ]
- 2
- Groove Shape [BXSM]
- V
- Groove Width [ABGF]
- 0.380 Inches Nominal
- Hub End Outside Diameter And Location [BYZD]
- 1.460 Inches Nominal Both Ends
- Outside Diameter [ABHE]
- 4.045 Inches Nominal
- Integral Cooling Vane [BXSK]
- Not Included
- Keying Facility [BSGG]
- Included
- Keying Facility Type [BSGK]
- Keyway
- Keyway Width [ABRR]
- 0.126 Inches Minimum And 0.128 Inches Maximum
- Lightening Hole [BXSJ]
- Included
- Material And Location [ANNQ]
- Iron, Ductile Overall
- Pitch Diameter [AGJS]
- 3.985 Inches Nominal
- Protruding Hub Characteristic [BYDZ]
- Plain
- Quantity [NMBR]
- 1
- Securing Location [BYFF]
- Both Ends
- Securing Method [BSNP]
- Key And Press Fit
- Overall Length [ABHP]
- 1.340 Inches Nominal
- V Groove Angle In Deg [AGGS]
- 36.0
- Web/Spoke Relationship To Face Centerline [BXSH]
- Not Offset
- Split Hub Feature [BSYG]
- Not Included
- Style Designator [STYL]
- Webbed Or Spoked
Weapon Systems (WSDC) 3020-01-198-0633
DLA Procurement Analysis 3020-01-198-0633
- Last Stock Position:
- 4 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3020-01-198-0633
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- N5
- Tactical Vehicles
High Mobility Multi-Purpose Wheeled Vehicle(HMMWV)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 3020-01-198-0633
Freight Information 3020-01-198-0633
3020-01-198-0633 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127320. A Sub NMFC of X. It has a NMFC Description of PULLEYS/SHEAVES,NOI. 3020-01-198-0633 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3020-01-198-0633 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-01-198-0633 is not classified as a special type of cargo when transported by water. 3020-01-198-0633 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
