3020-01-060-2549
Flat Pulley
3020010602549 010602549 12253519-2
A pulley with a straight or crowned face. The item may include belt aligning flange(s). Excludes PULLEY, CONE. For pulleys encased in a shell or frame, see BLOCK, TACKLE. View more Flat Pulley
March 2025
28
Marketplace 3020-01-060-2549
Request a Quotation from participating marketplace vendors
Related Documents 3020-01-060-2549 4+ Documents (More...)

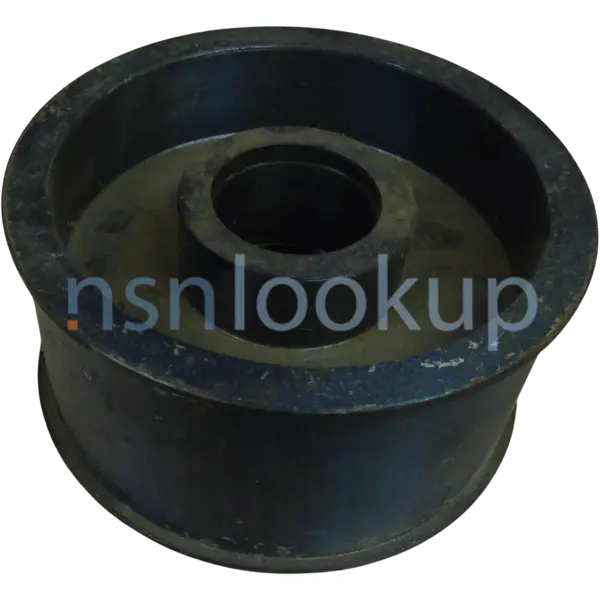

Photo 1/2 NSN 3020-01-060-2549 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 3020-01-060-2549 RQST Updated Every Day 3020-01-060-2549 RQST NE Related
/fsg-30/fsc-3020/us
Restrictions 3020-01-060-2549
3020-01-060-2549 is a Flat Pulley that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-01-060-2549
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-060-2549
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Mar 1997
- Australia (ZA01)
- Effective Date:
- 1 Jul 2002
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Feb 2002
- Denmark (ZS01)
- Effective Date:
- 1 Jan 2000
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 3020-01-060-2549
- Part Number
- Manufacturer
- Status
- 12253519-2
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 12253519-2
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- Related NATO Reproduction
- Related NATO Reproduction
Datasheet 3020-01-060-2549
- Characteristic
- Specifications
- FIIG
- Specifications
- T353-A
- Bearings [AWJQ]
- Not Included
- Bore Feature [BYDS]
- Included
- Bore Diameter [ABXV]
- 1.574 Inches Nominal
- Bore Length [ADGE]
- 1.380 Inches Nominal
- Bore Type [ASBP]
- Straight
- Counterbore Feature [AXND]
- Not Included
- Crown Face [BXSL]
- Not Included
- Design Form [ARJD]
- Plain
- Face Width [AQPL]
- 2.560 Inches Nominal
- Outside Diameter [ABHE]
- 5.380 Inches Nominal
- Integral Cooling Vane [BXSK]
- Not Included
- Keying Facility [BSGG]
- Not Included
- Lightening Hole [BXSJ]
- Included
- Material And Location [ANNQ]
- Steel Overall
- Protruding Hub Characteristic [BYDZ]
- Plain
- Rim Type [BYDP]
- Double Split
- Split Hub Feature [BSYG]
- Not Included
- Style Designator [STYL]
- Plain
- Surface Treatment [SFTT]
- Cadmium
Weapon Systems (WSDC) 3020-01-060-2549
DLA Procurement Analysis 3020-01-060-2549
- Last Stock Position:
- 591 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3020-01-060-2549
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- MC
- Armored Carriers
M113A1/A2 Armored Personnel Carrier, Combat Vehicle, Anti-tank
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3020-01-060-2549
Freight Information 3020-01-060-2549
3020-01-060-2549 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127320. A Sub NMFC of X. It has a NMFC Description of PULLEYS/SHEAVES,NOI. 3020-01-060-2549 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3020-01-060-2549 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-01-060-2549 is not classified as a special type of cargo when transported by water. 3020-01-060-2549 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-01-060-2549
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x 4.0" W x 8.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x 4.0" W x 8.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 3020-01-060-2549 1 Records
Contracting Technical Data File (CTDF) 3020-01-060-2549 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
