3020-01-051-9824
Roller Chain Link
3020010519824 010519824 CB57-42532-10 P K1 40 R/L 40K1 CB57-42532-10 PIECE4
An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH. View more Roller Chain Link
May 2023
6
Marketplace 3020-01-051-9824
Request a Quotation from participating marketplace vendors
Related Documents 3020-01-051-9824 5+ Documents (More...)
FedMall Updated Every Day 3020-01-051-9824 RQST NE Updated Every Day 3020-01-051-9824 RQST Updated Every
Day 3020-01-051-9824 RQST NE Related Documents 3020-01-051-9824 5+ Documents ( More... ) https//www.nsnlookup.com
Chain Link3020010519824 010519824 CB57-42532 -10 P K1 40 R/L 40K1 CB57-42532-10 PIECE4 An assembled
K1 40 R/L 40K1 CB57-42532-10 PIECE4 An assembled unit of a CHAIN, ROLLER consisting of side plates
40K1 CB57-42532-10 PIECE4 An assembled unit of https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020
40K1 CB57-42532-10 PIECE4 An assembled unit of https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020
Roller Chain Link 3020010519824 010519824 $1 a day Upgrade your Account Upgrade 3020-01-051-9824Roller
Chain Link3020010519824 010519824 CB57-42532 -10 P K1 40 R/L 40K1 CB57-42532-10 PIECE4 An assembled
www.nsnlookup.com /fsg-30/fsc-3020/us 3020-01-051 https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-01-051-9824
Roller Chain Link 3020010519824 010519824 $1 a day Upgrade your Account Upgrade 3020-01-051-9824Roller
Restrictions 3020-01-051-9824
3020-01-051-9824 is a Roller Chain Link that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-01-051-9824
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-01-051-9824
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 3020-01-051-9824
- Part Number
- Manufacturer
- Status
- K1 40 R/L
- Manufacturer
- 71041 - Altra Industrial Motion Corp. (Active)
- Primary Buy
- Primary Buy
- 40K1
- 71041 - Altra Industrial Motion Corp. (Active)
- Secondary Buy
- Secondary Buy
- CB57-42532-10 PIECE4
- 97384 - Textron Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CB57-42532-10 P
- 97384 - Textron Systems Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 3020-01-051-9824
- Characteristic
- Specifications
- FIIG
- Specifications
- A23500
- Material [MATT]
- Steel
- Nominal Pitch Distance [AKGQ]
- 0.500 Inches

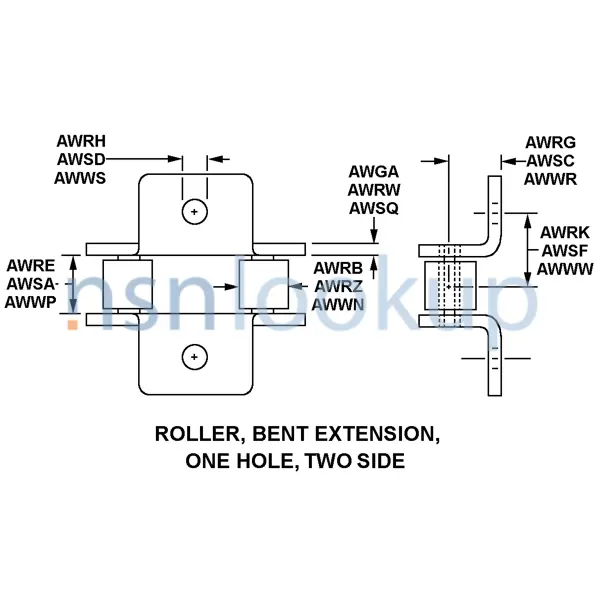

- Link Style [AJXT]
- Roller, Bent Extension, One Hole, Two Sides
- Link Plate Nominal Thickness [AWSQ]
- 0.0600 Inches
- Link Roller Nominal Diameter [AWWN]
- 0.3125 Inches
- Link Nominal Width Between Plates [AWWP]
- 0.3125 Inches
- Link Hole Nominal Height Above Center [AWWR]
- 0.3125 Inches
- Link Hole Nominal Diameter [AWWS]
- 0.1400 Inches
- Link Hole Nominal Distance From Center [AWWW]
- 0.3440 Inches
- Link Row Quantity [AWFN]
- 1
DLA Procurement Analysis 3020-01-051-9824
Management Data 3020-01-051-9824
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3020-01-051-9824
Freight Information 3020-01-051-9824
3020-01-051-9824 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 132330. A Sub NMFC of X. It has a NMFC Description of TRANSMISSIONS/CLUTCHES/PARTS,NOI. 3020-01-051-9824 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64340 which rates the freight between FCL and LCL. 3020-01-051-9824 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 3020-01-051-9824 is not classified as a special type of cargo when transported by water. 3020-01-051-9824 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-01-051-9824
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 5lb to 7.5lb, all dimensions less than 24"
- Above 110G
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 3020-01-051-9824 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
