3020-01-029-9262

Internal Gear

3020010299262 010299262 537AS596

A gear with teeth formed on the inner surface of a cylinder or cone. View more Internal Gear

3020-01-029-9262 GEAR,INTERNAL 3020010299262 010299262

Managed by United States
NSN Created on 26 Oct 1976
Data Last Changed
May 2023
NATO Update Count
3
NATO Data Quality
AAQL Style 1 for 3020-01-029-9262 1/2
NSN 3020-01-029-9262 (Identification) 1/2
STYL Style 49 for 3020-01-029-9262 2/2
NSN 3020-01-029-9262 (Identification) 2/2

3020-01-029-9262 Stock and Availability Marketplace 3020-01-029-9262

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
3020-01-029-9262 BUY NE FedMallFedMall.mil
eBay Updated Every Day
3020-01-029-9262 RQST NE eBay
eBay Updated Every Day
3020-01-029-9262 RQST eBay
Amazon Updated Every Day
3020-01-029-9262 RQST NE Amazon

3020-01-029-9262 Related Documents Related Documents 3020-01-029-9262 1+ Documents (More...)

Updated Every Day 3020-01-029-9262 RQST NE Updated Every Day 3020-01-029-9262 RQST Updated Every Day
3020-01-029-9262 RQST NE Related Documents 3020-01-029-9262 1+ Documents ( More... ) https//www.nsnlookup.com
/fsg-30/fsc-3020/us 3020-01-029-9262 Internal Gear 3020010299262010299262 (Identification) 1/2 NSN 3020

3020-01-029-9262 Demil Restrictions 3020-01-029-9262

DEMIL: A | DEMILI: | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

3020-01-029-9262 is a Internal Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

3020-01-029-9262 HTS and ScheduleB Import and Export 3020-01-029-9262

3020-01-029-9262 End Users End Users 3020-01-029-9262

US Navy (N9BC)
Effective Date:
1 Jul 2005
Former MOE Rule:
N9CD
Supplementary Collaborators:
HD

3020-01-029-9262 Manufacturers Approved Sources 3020-01-029-9262

3020-01-029-9262 Technical Data Datasheet 3020-01-029-9262

Characteristic
Specifications
FIIG
A27300
Material [MATT]
Steel Overall
Material Document And Classification [MDCL]
Mil-S-46850,Type Iii,Grade 300 Mil Spec Single Material Response Overall
Hardness Rating [CQFM]
50.0 Rockwell C Nominal Overall
Teeth Quantity [AJLA]
48
Teeth Type [CWMW]
Spur
Pressure Angle [CWPP]
14.4832 Degrees
Style Designator [STYL]

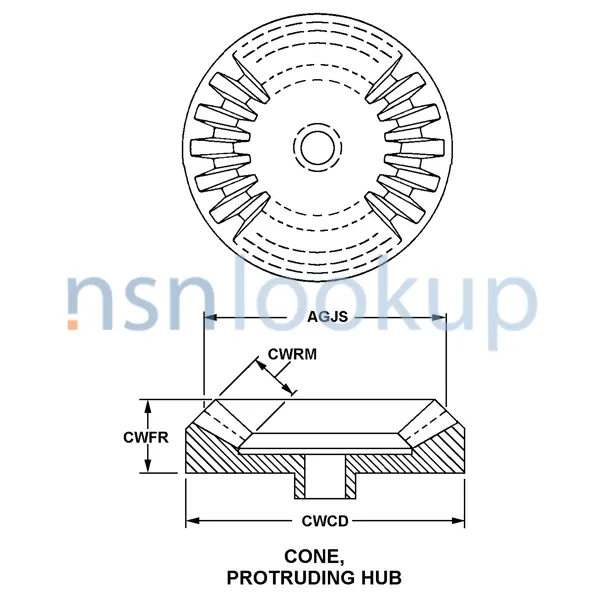

Cone, Protruding Hub
