3020-00-936-8281

Spur Gear

3020009368281 009368281 7709846

A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION. View more Spur Gear

Managed by United States

NSN Created on 10 Mar 1967

Data Last Changed
November 2025

NATO Update Count
27

NATO Data Quality

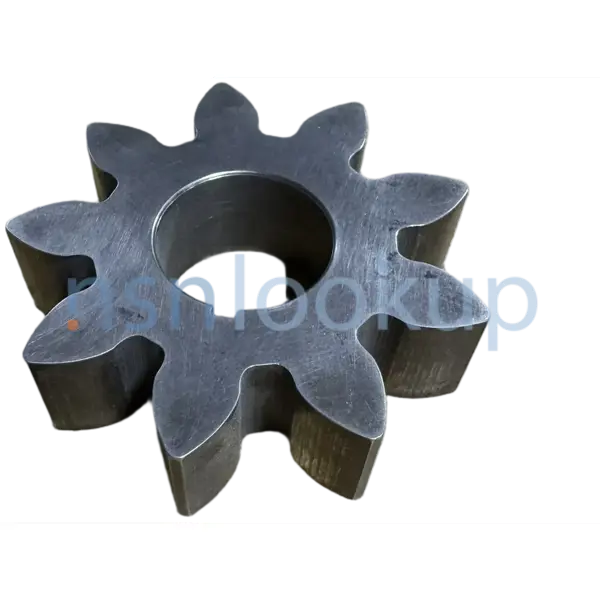

3020-00-936-8281 GEAR,SPUR 3020009368281 009368281 1/3 — 3020-00-936-8281 Photo 1/3

AAQL Style 1 for 3020-00-936-8281 2/3 — NSN 3020-00-936-8281 (Identification) 2/3

STYL Style 1 for 3020-00-936-8281 3/3 — NSN 3020-00-936-8281 (Identification) 3/3

Marketplace 3020-00-936-8281

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

7709846 GEAR,SPUR RQST NS

Subscribe to View Vendor Details...

3020-00-936-8281 GEAR,SPUR RQST NS

Updated Every Day

3020-00-936-8281 RQST NE

Updated Every Day

3020-00-936-8281 RQST

Updated Every Day

3020-00-936-8281 RQST NE

Related Documents 3020-00-936-8281 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-30/fsc-3020/us

3020-00-936-8281 Spur Gear 3020009368281 009368281,7709846

Photo 1/3 NSN 3020-00-936-8281 (Identification) 2/3 NSN 3020-00-936-8281 (Identification) 3/3 -
Updated Every Day 3020-00-936-8281 RQST NE Related Documents 3020-00-936-8281 5+ Documents ( More...
) https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-936-8281 Spur Gear 3020009368281 009368281,7709846

https//www.nsnlookup.com
/fsg-30/fsc-3020/us

3020-00-611-2904 Spur Gear 3020006112904 006112904,9004603

3020-00-914-1004 3020-00-097-2475 3020-00-611-2904 https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-936-8281
Spur Gear 3020009368281 009368281,7709846 053-3141 3020-00-089-2533 3020-01-216-8592 3020-00-239
611-2904 3020-01-216-8592 3020-00-097-2475 3020-12-187-9244 3020-00-851-9176 3020-00-272-6038 3020-00-936-8281

https//www.nsnlookup.com
/fsg-58/fsc-5845/ca

5845-21-816-6210 Spur Gear 5845218166210 218166210

www.nsnlookup.com /fsg-58/fsc-5845/ca 5845-21-816-6210 Spur Gear 5845218166210218166210 272-6038 3020-00-936-8281
fsg-58/fsc-5845/ca 5845-21-816-6210 Spur Gear 5845218166210218166210 851-9176 3020-00-272-6038 3020-00-936-8281
816-6210 3020-01-216-8592 3020-00-097-2475 3020-12-187-9244 3020-00-851-9176 3020-00-272-6038 3020-00-936-8281

https//www.nsnlookup.com
/fsg-58/fsc-5845/ca

5845-21-848-5616 Spur Gear 5845218485616 218485616

www.nsnlookup.com /fsg-58/fsc-5845/ca 5845-21-848-5616 Spur Gear 5845218485616218485616 272-6038 3020-00-936-8281
fsg-58/fsc-5845/ca 5845-21-848-5616 Spur Gear 5845218485616218485616 851-9176 3020-00-272-6038 3020-00-936-8281
848-5616 3020-01-216-8592 3020-00-097-2475 3020-12-187-9244 3020-00-851-9176 3020-00-272-6038 3020-00-936-8281

https//www.nsnlookup.com
/fsg-30/fsc-3020/us

3020-00-914-1004 Spur Gear 3020009141004 009141004,8350398

3020-01-491-2622 3020-00-239-3859 3020-00-914-1004 https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-936-8281
Spur Gear 3020009368281 009368281,7709846 936-8281 3020-00-920-3282 3020-00-053-3141 3020-00-089
914-1004 3020-01-216-8592 3020-00-097-2475 3020-12-187-9244 3020-00-851-9176 3020-00-272-6038 3020-00-936-8281

Restrictions 3020-00-936-8281

3020-00-936-8281 is a Spur Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 3020-00-936-8281

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 3020-00-936-8281

US Army (A920)
Effective Date:: 1 Jul 2005
Former MOE Rule:: A181
Supplementary Receivers:: AZBF; AMC 1 AMSC G IMC Z IMCACTY AZ

Austria (WB01)
Effective Date:: 1 Feb 2005

Spain (YB01)
Effective Date:: 1 Mar 1999

Israel (YD01)
Effective Date:: 1 Jul 2016

Morocco (YP01)
Effective Date:: 1 Sep 2011

Germany (ZG01)
Effective Date:: 1 Jan 2015

Republic of Korea (ZH01)
Effective Date:: 1 Apr 2002

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Jun 1994

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 3020-00-936-8281

Part Number
Manufacturer
Status
7709846: 19207 - U S Army Tank Automotive Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
3020009368281: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 3020-00-936-8281

Characteristic
Specifications
FIIG: A27300
Body Style [AAQL]: Plain, Solid
Bore Nominal Diameter [CWRS]: 1.000 Inches Both Ends
Bore Style [ANTP]: W/ Keyway Both Ends
Face Nominal Width [CWRM]: 0.746 Inches
Nominal Distance From Bore Center To Keyway Bottom [CWSR]: 0.564 Inches Both Ends
Nominal Outside Diameter [CWCD]: 2.750 Inches
Hardness Rating [CQFM]: 90.0 Rockwell Superficial 15-N Minimum Overall
Material [MATT]: Steel Comp 8620 Overall
Keyway Nominal Width [CWSN]: 0.127 Inches Both Ends
Material Document And Classification [MDCL]: 66 Fed Std Single Material Response Overall
Pitch Diameter [AGJS]: 2.2500 Inches Nominal
Pressure Angle [CWPP]: 28.0000 Degrees
Tooth Form [CWNH]: Standard
Style Designator [STYL]: Hubless
Surface Treatment [SFTT]: Phosphate Overall
Teeth Quantity [AJLA]: 9

Weapon Systems (WSDC) 3020-00-936-8281

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 3020-00-936-8281

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 3020-00-936-8281

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Similar Supply Items to 3020-00-936-8281

Freight Information 3020-00-936-8281

3020-00-936-8281 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062070. A Sub NMFC of Z. It has a NMFC Description of GEAR MOTORS/PARTS NOI. 3020-00-936-8281 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64910 which rates the freight between FCL and LCL. 3020-00-936-8281 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-00-936-8281 is not classified as a special type of cargo when transported by water. 3020-00-936-8281 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 3020-00-936-8281

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; --; --; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: Any Suitable Fiber Box
