3020-00-916-2113
Internal Gear
3020009162113 009162113 10902002 2520009162113
A gear with teeth formed on the inner surface of a cylinder or cone. View more Internal Gear
Managed by United States
NSN Created on 3 Nov 1965
Data Last Changed
May 2023
May 2023
NATO Update Count
26
26
NATO Data Quality
Marketplace 3020-00-916-2113
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-916-2113 2+ Documents (More...)
https//www.nsnlookup.com
/fsg-30/fsc-3020/us
/fsg-30/fsc-3020/us
3020-00-916-2113 Internal Gear 3020009162113 009162113,
10902002 2520009162113 A gear with teeth formed on the inner surface of a cylinder or cone.
(Identification) 1/2 NSN 3020-00-916-2113 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 3020-00-916-2113 RQST Updated Every Day 3020-00-916-2113 RQST NE Related
(Identification) 1/2 NSN 3020-00-916-2113 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 3020-00-916-2113 RQST Updated Every Day 3020-00-916-2113 RQST NE Related
to enable JavaScript in your web browser . 4710-33-161-0105Plastic Pipe4710331610105 331610105 -10902002
Every Day 4710-33-161-0105 RQST NE Restrictions https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-916-2113
Internal Gear 3020009162113 009162113 Restrictions Approved Sources Datasheet Management https/
Every Day 4710-33-161-0105 RQST NE Restrictions https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-916-2113
Internal Gear 3020009162113 009162113 Restrictions Approved Sources Datasheet Management https/
Restrictions 3020-00-916-2113
3020-00-916-2113 is a Internal Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-00-916-2113
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-916-2113
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3020-00-916-2113
- Part Number
- Manufacturer
- Status
- 10902002
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 2520009162113
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2520009162113
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3020-00-916-2113
- Characteristic
- Specifications
- FIIG
- Specifications
- A27300
- Material [MATT]
- Steel Comp 8640 Overall
- Material Document And Classification [MDCL]
- Mil-S-13048 Mil Spec Single Material Response Overall
- Teeth Quantity [AJLA]
- 25
- Teeth Type [CWMW]
- Spur
- Pressure Angle [CWPP]
- 20.0000 Degrees
- Pitch Angle [CWQD]
- 90.0000 Degrees
- Style Designator [STYL]

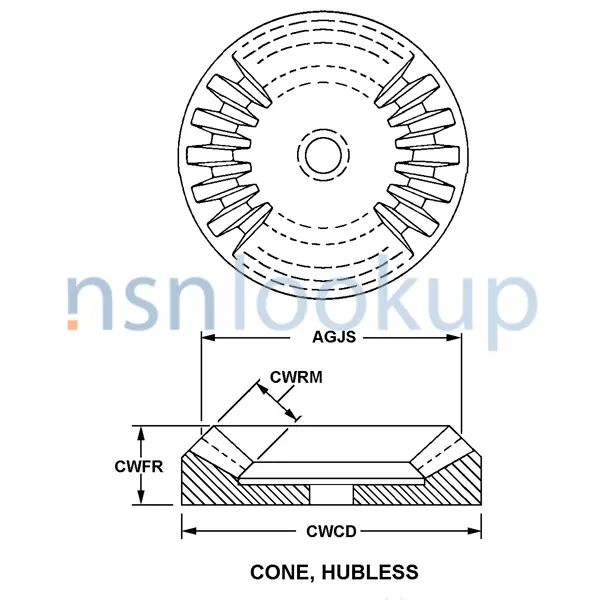

- Cone, Hubless
- Pitch Diameter [AGJS]
- 3.1250 Inches Nominal
- Nominal Overall Length [CWFR]
- 1.000 Inches
- Nominal Outside Diameter [CWCD]
- 4.750 Inches
- Face Nominal Width [CWRM]
- 0.875 Inches
- Bore Style [ANTP]
- Thread Series Designator Fully Threaded Both Ends
- Thread Series Designator [THSD]
- Unf Both Ends
- Nominal Thread Size [CQJX]
- 1.000 Inches Both Ends
- Thread Class [AAJD]
- 2B Both Ends
- Thread Direction [AAJF]
- Right-Hand Both Ends
- Body Style [AAQL]
- Plain, Solid
- Attachment Method [ABSX]
- Mounting Hole
- Mounting Hole Type And Quantity [CTQY]
- 4 Threaded Axially Through Flange
- Mounting Hole Thread Series Designator [CMLK]
- Unf Axially Through Flange
- Mounting Hole Nominal Thread Size [CQLT]
- 0.438 Inches Axially Through Flange
- Special Features [FEAT]
- Second End 4.750In.Dia,0.500In.W Flange With Recessed Face 2.750In.Dia,0.125In.Deep
