3020-00-911-9950

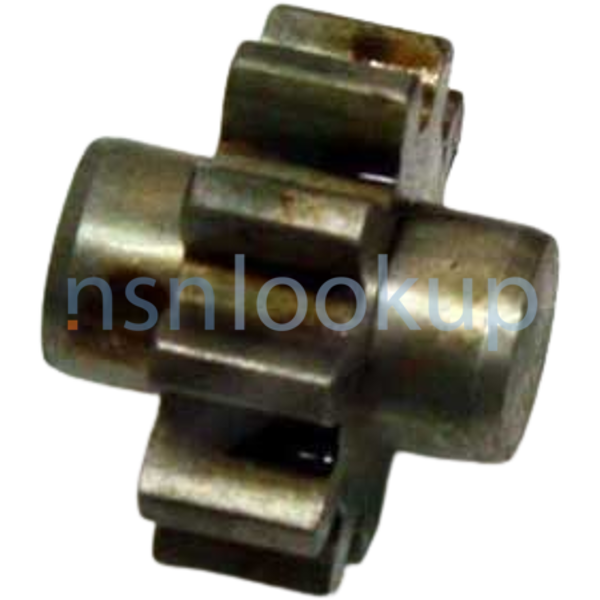

Spur Gear
3020009119950 009119950 PC5100313 05100313 5100313 K-5100313
A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION. View more Spur Gear
Managed by United States
NSN Created on 1 Jan 1960
Data Last Changed
August 2025
August 2025
NATO Update Count
39
39
NATO Data Quality
Marketplace 3020-00-911-9950
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-911-9950 3+ Documents (More...)
PC5100313 05100313 5100313 K-5100313 A gear, cylindrical in form, with straight teeth on the outer surface
/fsg-30/fsc-3020/us 3020-00-911-9950 Spur Gear 3020009119950009119950,PC5100313 PC5100313051003135100313K
-5100313 A gear, cylindrical in form, with straight teeth on the outer surface /fsg-30/fsc-3020/us 3020
/fsg-30/fsc-3020/us 3020-00-911-9950 Spur Gear 3020009119950009119950,PC5100313 PC5100313051003135100313K
-5100313 A gear, cylindrical in form, with straight teeth on the outer surface /fsg-30/fsc-3020/us 3020
K5100313 INLET,COOLER 1 EA NS Request Quotation Subscribe to View Vendor Details... 5100313 INLET,COOLER
Spur Gear 3020009119950 009119950,PC5100313 Upgrade your Account Upgrade 3020-00-911-9950Spur Gear3020009119950
009119950 PC5100313 05100313 5100313 K-5100313 A gear, cylindrical in form, with straight teeth on the
Spur Gear 3020009119950 009119950,PC5100313 Upgrade your Account Upgrade 3020-00-911-9950Spur Gear3020009119950
009119950 PC5100313 05100313 5100313 K-5100313 A gear, cylindrical in form, with straight teeth on the
your web browser . 5330-14-363-8624Nonmetallic Special Shaped Section Seal5330143638624 143638624 5100313
www.nsnlookup.com /fsg-16/fsc-1650/us 1650-00-004-2889 Cooler Inlet 1650000042889 000042889,5100313 K-5100313
surface parallel to the axis GEAR,SPUR 1 EA NS Request Quotation Subscribe to View Vendor Details... 5100313
www.nsnlookup.com /fsg-16/fsc-1650/us 1650-00-004-2889 Cooler Inlet 1650000042889 000042889,5100313 K-5100313
surface parallel to the axis GEAR,SPUR 1 EA NS Request Quotation Subscribe to View Vendor Details... 5100313
Restrictions 3020-00-911-9950
3020-00-911-9950 is a Spur Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-00-911-9950
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-911-9950
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Supplementary Receivers:
- AZBF
- US Coast Guard (C911)
- Effective Date:
- 1 Jan 2007
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Supplementary Collaborators:
- GTHD
- Lithuania (WI)
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Malaysia (YW)
- Malaysia (YW01)
- Effective Date:
- 1 Jan 1998
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA)
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB)
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN)
- Netherlands (ZN01)
- Effective Date:
- 1 Sep 2007
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- United States of America (ZZ)
Approved Sources 3020-00-911-9950
- Part Number
- Manufacturer
- Status
- 05100313
- Manufacturer
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Primary Buy
- Primary Buy
- PC5100313
- C7432 - Power Components (Deutschland) Gmbh (Obsolete)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 5100313
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5100313
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- K-5100313
- 18954 - Korody-Colyer Corp A Cr Industries (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3020-00-911-9950
- Characteristic
- Specifications
- FIIG
- Specifications
- A27300
- Material [MATT]
- Steel Overall
- Teeth Quantity [AJLA]
- 10
- Tooth Form [CWNH]
- Standard
- Style Designator [STYL]
- Protruding Hubs
- Pitch Diameter [AGJS]
- 1.0937 Inches Nominal
- Nominal Outside Diameter [CWCD]
- 1.188 Inches
- Face Nominal Width [CWRM]
- 0.375 Inches
- Nominal Distance Between Body Face And Protruding Hub End [CWQL]
- 0.313 Inches Both Ends
- Hub Style Designator [CWTR]
- Plain Both Ends
- Hub Nominal Diameter [CWTX]
- 0.500 Inches Both Ends
- Body Style [AAQL]
- Plain, Solid
- End Item Identification [AGAV]
- Detroit Diesel Engine,General Motors Corp,Series 71; Nsn 2320-01-097-0260 Hemtt (Heavy Expanded Mobility Tactical Truck)
Weapon Systems (WSDC) 3020-00-911-9950
DLA Procurement Analysis 3020-00-911-9950
- Last Stock Position:
- 188 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3020-00-911-9950
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- US Coast Guard (GP)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 2910
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2910
- X
- US Coast Guard (GP)
- C
- X
- Formerly 2910
- X
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 3020-00-911-9950
Freight Information 3020-00-911-9950
3020-00-911-9950 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062070. A Sub NMFC of Z. It has a NMFC Description of GEAR MOTORS/PARTS NOI. 3020-00-911-9950 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64910 which rates the freight between FCL and LCL. 3020-00-911-9950 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-00-911-9950 is not classified as a special type of cargo when transported by water. 3020-00-911-9950 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 3020-00-911-9950 2 Records
Contracting Technical Data File (CTDF) 3020-00-911-9950 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
