3020-00-844-0135

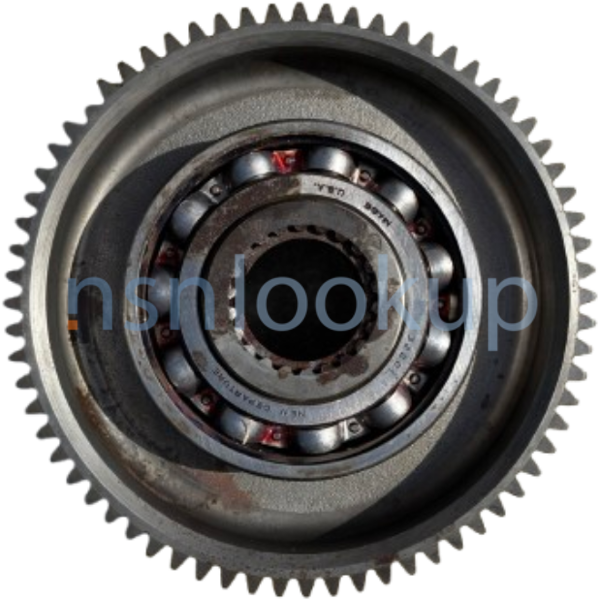

Spur Gear
3020008440135 008440135 8351746
A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION. View more Spur Gear
November 2023
29
Marketplace 3020-00-844-0135
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-844-0135 2+ Documents (More...)
Restrictions 3020-00-844-0135
3020-00-844-0135 is a Spur Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-00-844-0135
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-844-0135
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Jul 1993
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3020-00-844-0135
- Part Number
- Manufacturer
- Status
- 8351746
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 3020008440135
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3020-00-844-0135
- Characteristic
- Specifications
- FIIG
- Specifications
- A27300
- Attachment Method [ABSX]
- Mounting Hole
- Body Style [AAQL]
- Webbed, Offset, With Lightening Holes
- Bore Nominal Diameter [CWRS]
- 2.940 Inches Both Ends
- Bore Style [ANTP]
- Involute Spline Both Ends
- End Nominal Diameter [CWWN]
- 3.878 Inches First End
- End Nominal Length [CWWH]
- 0.980 Inches First End
- Face Nominal Width [CWRM]
- 1.900 Inches
- First Step Nominal Diameter [CWXB]
- 4.134 Inches First End
- First Step Nominal Length [CWWS]
- 1.939 Inches First End
- Hub Style Designator [CWTR]
- 1 Step First End
- Hub Style Designator [CWTR]
- Plain Second End
- Hub Nominal Diameter [CWTX]
- 3.937 Inches Second End
- Mounting Hole Nominal Diameter [CWZK]
- 0.750 Inches Transversely Through Face
- Mounting Hole Type And Quantity [CTQY]
- 3 Plain Transversely Through Face
- Nominal Distance Between Body Face And Protruding Hub End [CWQL]
- 0.360 Inches Second End
- Nominal Distance Between Body Face And Protruding Hub End [CWQL]
- 2.560 Inches First End
- Nominal Outside Diameter [CWCD]
- 11.657 Inches
- Hardness Rating [CQFM]
- 50.0 Rockwell C Nominal Hub
- Hardness Rating [CQFM]
- 60.0 Rockwell C Nominal Teeth
- Material [MATT]
- Steel Comp 8620 Overall
- Material Document And Classification [MDCL]
- Fed Std 66 Fed Std Single Material Response Overall
- Pitch Diameter [AGJS]
- 11.3333 Inches Nominal
- Pressure Angle [CWPP]
- 20.0000 Degrees
- Special Features [FEAT]
- First End Counterbore,3.000 In. Dia.,2.620 In Depth
- Tooth Form [CWNH]
- Standard
- Spline Pitch Diameter [BDTX]
- 2.7500 Inches Nominal Both Ends
- Spline Quantity [ABSA]
- 22 Both Ends
- Style Designator [STYL]
- Protruding Hubs
- Surface Treatment [SFTT]
- Phosphate Teeth
- Teeth Quantity [AJLA]
- 68
