3020-00-817-9538

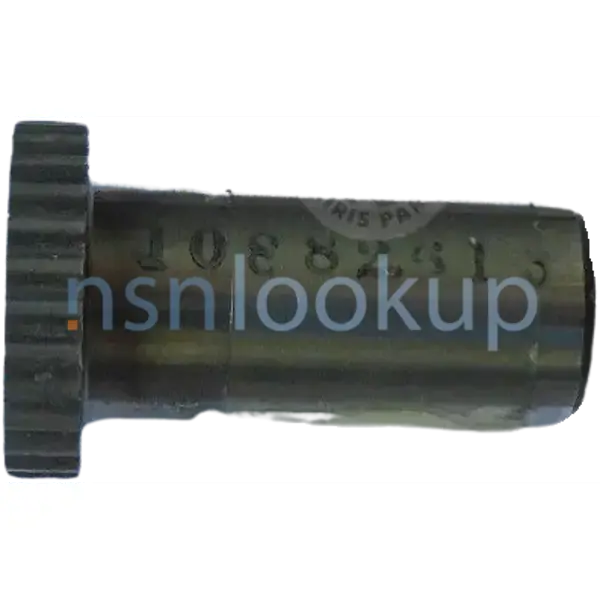

Spur Gear
3020008179538 008179538 10882613
A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION. View more Spur Gear
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
May 2023
May 2023
NATO Update Count
26
26
NATO Data Quality
Marketplace 3020-00-817-9538
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-817-9538 1+ Documents (More...)
(Identification) 1/2 NSN 3020-00-817-9538 (Identification) 2/2 - - 1.
GEAR,SPUR 1 EA NS Request Quotation Subscribe to View Vendor Details... 10882613 GEAR,SPUR 50 EA
Every Day 3020-00-817-9538 RQST NE Updated Every Day 3020-00-817-9538 RQST Updated Every Day 3020-00-
GEAR,SPUR 1 EA NS Request Quotation Subscribe to View Vendor Details... 10882613 GEAR,SPUR 50 EA
Every Day 3020-00-817-9538 RQST NE Updated Every Day 3020-00-817-9538 RQST Updated Every Day 3020-00-
Restrictions 3020-00-817-9538
3020-00-817-9538 is a Spur Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-00-817-9538
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-817-9538
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Oct 1999
Approved Sources 3020-00-817-9538
- Part Number
- Manufacturer
- Status
- 10882613
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 10882613
- 02978 - Renk America Llc (Active)
- Secondary Buy
- Secondary Buy
- 3020008179538
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 10882613
- 02184 - Obrien Gear Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3020-00-817-9538
- Characteristic
- Specifications
- FIIG
- Specifications
- A27300
- Body Style [AAQL]
- Plain, Solid
- Bore Nominal Diameter [CWRS]
- 0.538 Inches Both Ends
- Bore Style [ANTP]
- Involute Spline Both Ends
- Face Nominal Width [CWRM]
- 0.250 Inches
- Hub Style Designator [CWTR]
- Plain First End
- Hub Nominal Diameter [CWTX]
- 0.810 Inches First End
- Nominal Distance Between Body Face And Protruding Hub End [CWQL]
- 1.660 Inches First End
- Nominal Outside Diameter [CWCD]
- 1.208 Inches
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum And 34.0 Rockwell C Maximum Teeth
- Material [MATT]
- Steel Overall
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall And Aisi/Sae 1035 Thru 1045 Assn Std Single Material Response Overall
- Pitch Diameter [AGJS]
- 1.1667 Inches Nominal
- Pressure Angle [CWPP]
- 30.0000 Degrees
- Tooth Form [CWNH]
- Standard
- Spline Pitch Diameter [BDTX]
- 0.4583 Inches Nominal Both Ends
- Spline Quantity [ABSA]
- 11 Both Ends
- Style Designator [STYL]
- Protruding Hub
- Teeth Quantity [AJLA]
- 28
