3020-00-733-4752

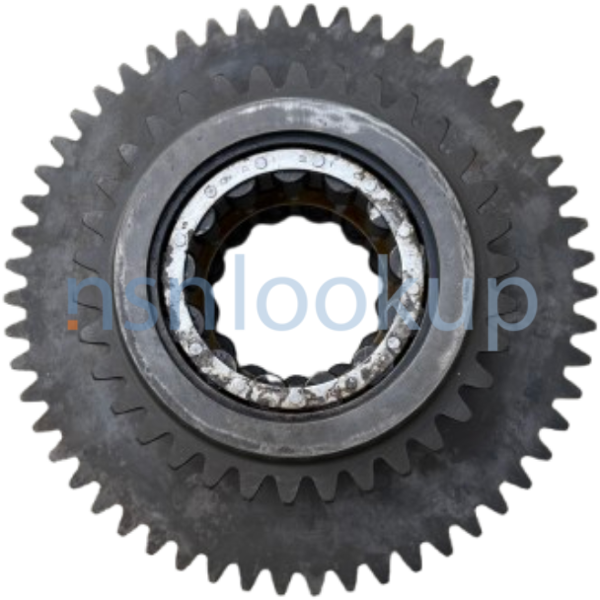

Gear Cluster
3020007334752 007334752 K2574 8351744 3040007334752 2520007334752
A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER. View more Gear Cluster
January 2024
30
Marketplace 3020-00-733-4752
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-733-4752 5+ Documents (More...)
Updated Every Day 3020-00-733-4752 RQST Updated Every Day 3020-00-733-4752 RQST NE Related Documents
3020-00-733-4752 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-733-4752
Gear Cluster 3020007334752 007334752,,K2574 Day 3020-00-733-4752 RQST NE Related Documents https
Restrictions 3020-00-733-4752
3020-00-733-4752 is a Gear Cluster that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-00-733-4752
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-733-4752
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Jul 2003
Approved Sources 3020-00-733-4752
- Part Number
- Manufacturer
- Status
- 8351744
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 3040007334752
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2520007334752
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2520007334752
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 3040007334752
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 3020007334752
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- K2574
- G0768 - Kanakas Th. & G. O.E (Active)
- Related NATO Reproduction
- Related NATO Reproduction
Datasheet 3020-00-733-4752
- Characteristic
- Specifications
- FIIG
- Specifications
- A270A0
- Material [MATT]
- Steel Comp 8620 Overall
- Material Document And Classification [MDCL]
- Qq-S-624 Fed Spec Single Material Response Overall
- Hardness Rating [CQFM]
- 60.0 Rockwell C Maximum Teeth
- Hardness Rating [CQFM]
- 50.0 Rockwell C Minimum Overall
- Construction [CQCF]
- Solid
- Design Type [APGF]
- Spur First Gear
- Design Type [APGF]
- Spur Second Gear
- Nominal Outside Diameter [CWCD]
- 9.3230 Inches First Gear
- Nominal Outside Diameter [CWCD]
- 5.9900 Inches Second Gear
- Nominal Overall Length [CWFR]
- 3.640 Inches
- Hub Style Designator [CWTR]
- Plain Between First And Second Gear
- Hub Nominal Length [CWQN]
- 0.860 Inches Between First And Second Gear
- Hub Nominal Diameter [CWTX]
- 5.030 Inches Between First And Second Gear
- Special Features [FEAT]
- Microinch Finish: 32.0 End Faces And Od; 12.0 On Teeth,16.0 On Mtg Bore
Weapon Systems (WSDC) 3020-00-733-4752
DLA Procurement Analysis 3020-00-733-4752
Management Data 3020-00-733-4752
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- X
- Formerly 2520
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2520
- X
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 3020-00-733-4752
Freight Information 3020-00-733-4752
3020-00-733-4752 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 197339. A Sub NMFC of X. It has a NMFC Description of WHEELS COG/GEAR/PINION I/S. 3020-00-733-4752 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 96710 which rates the freight between FCL and LCL. 3020-00-733-4752 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-00-733-4752 is not classified as a special type of cargo when transported by water. 3020-00-733-4752 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-00-733-4752
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 11.4" H x 11.4" W x -- L
- --
- --
- Preservative Coating Only
- Any Suitable Process
- 11.4" H x 11.4" W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-11796, Class 3, Light Preservative Compound, Soft Film, Hot Application
- MIL-PRF-121, Type I, Medium Duty, Greaseproof, Waterproof Barrier
- Weather Resistant Fiberboard Meeting the Requirements of ASTM-D4727 used as Pads, Cells, Die-cuts or Sleeves; or Plastic Molding Material conforming to MIL-P-19644; or Polyurethane Foam conforming to MIL-PRF-26514
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- No special marking
- MIL-PRF-121, Type I, Medium Duty, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 3020-00-733-4752 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
