3020-00-705-5003
Helical Gear
3020007055003 007055003 15908 159285 7902037-17 3020PL1339003
A gear, cylindrical in form, with teeth on the outer surface at an angle to the axis of the gear. See also GEAR, ANTIBACKLASH, HELICAL: View more Helical Gear
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
39
39
NATO Data Quality
Marketplace 3020-00-705-5003
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-705-5003 5+ Documents (More...)
15908 159285 7902037-17 3020PL1339003 A gear, cylindrical in form, with teeth on the outer surface at
Vendor Details... 159285 GEAR,HELICAL 1 EA NS Request Quotation Subscribe to View Vendor Details... 3020
Subscribe to View Vendor Details... 7902037-17 GEAR,HELICAL 14 EA NS Request Quotation 159285 GEAR,HELICAL
Vendor Details... 159285 GEAR,HELICAL 1 EA NS Request Quotation Subscribe to View Vendor Details... 3020
Subscribe to View Vendor Details... 7902037-17 GEAR,HELICAL 14 EA NS Request Quotation 159285 GEAR,HELICAL
https//www.nsnlookup.com
/fsg-53/fsc-5365/de
/fsg-53/fsc-5365/de
5365-12-308-9052 Externally Threaded Ring 5365123089052
your web browser . 5365-12-308-9052Externally Threaded Ring5365123089052 123089052 1281-14400.22 159285
https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-705-5003 Helical Gear 3020007055003 007055003,15908
for $1 a day Upgrade your Account Upgrade 3020-00-705-5003Helical Gear3020007055003 007055003 15908
https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-705-5003 Helical Gear 3020007055003 007055003,15908
for $1 a day Upgrade your Account Upgrade 3020-00-705-5003Helical Gear3020007055003 007055003 15908
how to enable JavaScript in your web browser . 5340-99-794-8762Loop Clamp5340997948762 997948762 N 159285
https//www.nsnlookup.com /fsg-53/fsc-5340/uk 5340-99-794-8762 Loop Clamp 5340997948762997948762,N 159285
5310-01-644-1859 Hexagon Castellated Plain Nut 5310016441859 Loop Clamp 5340997948762997948762,N 159285
https//www.nsnlookup.com /fsg-53/fsc-5340/uk 5340-99-794-8762 Loop Clamp 5340997948762997948762,N 159285
5310-01-644-1859 Hexagon Castellated Plain Nut 5310016441859 Loop Clamp 5340997948762997948762,N 159285
https//www.nsnlookup.com /fsg-53/fsc-5340/uk 5340-99-794-8762 Loop Clamp 5340997948762 997948762,N 159285
how to enable JavaScript in your web browser . 5340-99-794-8762Loop Clamp5340997948762 997948762 N 159285
https//www.nsnlookup.com /fsg-53/fsc-5340/uk 5340-99-794-8762 Loop Clamp 5340997948762997948762,N 159285
how to enable JavaScript in your web browser . 5340-99-794-8762Loop Clamp5340997948762 997948762 N 159285
https//www.nsnlookup.com /fsg-53/fsc-5340/uk 5340-99-794-8762 Loop Clamp 5340997948762997948762,N 159285
how to enable JavaScript in your web browser . 3110-99-758-0881Ball Bearing3110997580881 997580881 159285
https//www.nsnlookup.com /fsg-53/fsc-5340/uk 5340-99-794-8762 Loop Clamp 5340997948762997948762,N 159285
your web browser . 5365-12-308-9052Externally Threaded Ring5365123089052 123089052 1281-14400.22 159285
https//www.nsnlookup.com /fsg-53/fsc-5340/uk 5340-99-794-8762 Loop Clamp 5340997948762997948762,N 159285
your web browser . 5365-12-308-9052Externally Threaded Ring5365123089052 123089052 1281-14400.22 159285
Restrictions 3020-00-705-5003
3020-00-705-5003 is a Helical Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-00-705-5003
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-705-5003
- US Army (A920)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- CL
- US Air Force (FXGC)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTJBHD
- MOE Rule:
- S911
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- S001
- Poland (WP01)
- Effective Date:
- 1 Apr 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 3020-00-705-5003
- Part Number
- Manufacturer
- Status
- 159285
- Manufacturer
- 57712 - Telemechanics Inc (Active)
- Primary Buy
- Primary Buy
- 7902037-17
- 90536 - Lockheed Martin Corp (Active)
- Secondary Buy
- Secondary Buy
- 159285
- 70408 - At And T Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 3020PL1339003
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 159285
- 64959 - American Telephone And Telegraph Co (Replaced)
- Advisory Reference
- Advisory Reference
- 15908
- 70408 - At And T Corp (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 3020-00-705-5003
- Characteristic
- Specifications
- FIIG
- Specifications
- A27300
- Material [MATT]
- Plastic Polyamide Body
- Material [MATT]
- Steel Hub
- Teeth Quantity [AJLA]
- 84
- Teeth Type [CWMW]
- Single Helix
- Tooth Form [CWNH]
- Standard
- Tooth Direction [CWNM]
- Right
- Pressure Angle [CWPP]
- 20.0000 Degrees
- Helix Angle [CWPZ]
- 20.0000 Degrees
- Style Designator [STYL]
- Hubless, Recessed Body
- Pitch Diameter [AGJS]
- 3.2307 Inches Nominal
- Nominal Outside Diameter [CWCD]
- 3.3077 Inches
- Face Nominal Width [CWRM]
- 0.312 Inches
- Body Recess Nominal Depth [CWRB]
- 0.031 Inches First End
- Body Recess Nominal Depth [CWRB]
- 0.156 Inches Second End
- Bore Style [ANTP]
- Plain Both Ends
- Bore Nominal Diameter [CWRS]
- 0.5000 Inches Both Ends
- Body Style [AAQL]

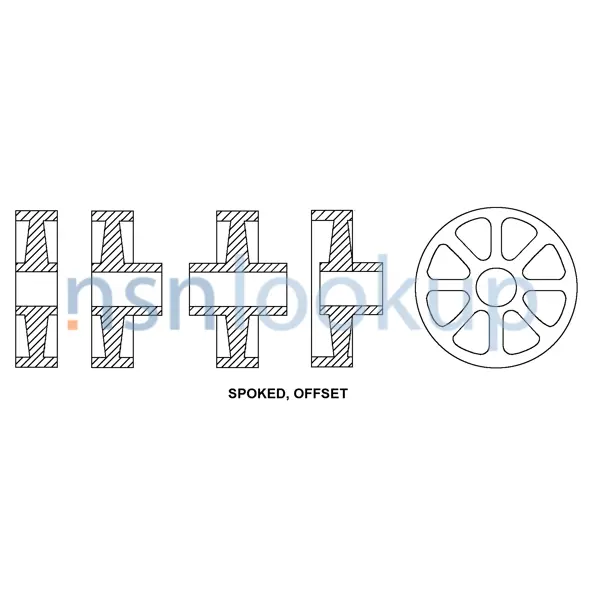

- Spoked, Offset
- Attachment Method [ABSX]
- Mounting Hole
- Mounting Hole Type And Quantity [CTQY]
- 2 Plain Axially Through Hub, First End
- Mounting Hole Nominal Diameter [CWZK]
- 0.162 Inches Axially Through Hub, First End
- Bolt Hole Circle Nominal Diameter [CWZN]
