3020-00-679-9189

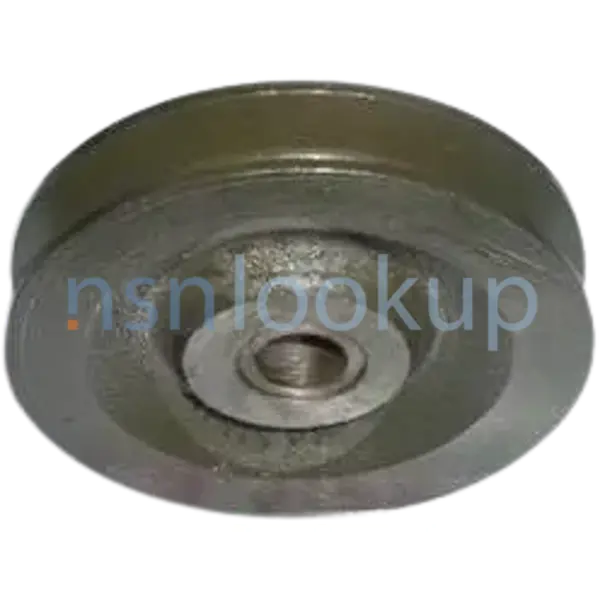

Groove Pulley
3020006799189 006799189 8756915 1064415 3020PL1865814
A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE.For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION. View more Groove Pulley
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
July 2025
July 2025
NATO Update Count
45
45
NATO Data Quality
Marketplace 3020-00-679-9189
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 3020-00-679-9189 RQST NE
Updated Every Day 3020-00-679-9189 RQST
Updated Every Day 3020-00-679-9189 RQST NE
Related Documents 3020-00-679-9189 5+ Documents (More...)
8756915 1064415 3020PL1865814 A pulley with one or more grooved faces or rims of the same diameter.
Quotation 1064415 PULLEY,GROOVE 1 EA NS Request Quotation Subscribe to View Vendor Details... 8756915
3020/us 3020-00-679-9189 Groove Pulley 3020006799189 006799189,8756915 875691510644153020PL1865814 A
Quotation 1064415 PULLEY,GROOVE 1 EA NS Request Quotation Subscribe to View Vendor Details... 8756915
3020/us 3020-00-679-9189 Groove Pulley 3020006799189 006799189,8756915 875691510644153020PL1865814 A
029-8561 3020-01-132-6399 3020-00-921-6994 3020-14-533-3686 3020-00-181-3068 3020-01-060-2547 3020-00-679-9189
029-8561 3020-01-132-6399 3020-00-921-6994 3020-14-533-3686 3020-00-181-3068 3020-01-060-2547 3020-00-679-9189
029-8561 3020-01-132-6399 3020-00-921-6994 3020-14-533-3686 3020-00-181-3068 3020-01-060-2547 3020-00-679-9189
029-8561 3020-01-132-6399 3020-00-921-6994 3020-14-533-3686 3020-00-181-3068 3020-01-060-2547 3020-00-679-9189
Restrictions 3020-00-679-9189
3020-00-679-9189 is a Groove Pulley that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-00-679-9189
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-679-9189
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Mar 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Jul 2003
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 May 2010
Approved Sources 3020-00-679-9189
- Part Number
- Manufacturer
- Status
- 8756915
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 1064415
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 1064415
- 80212 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 3020006799189
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3020PL1865814
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 3020-00-679-9189
- Characteristic
- Specifications
- FIIG
- Specifications
- T353-A
- Bearing Quantity [BDDY]
- 1
- Bearing Type [BYDT]
- Sleeve
- Bearings [AWJQ]
- Included
- Bore Diameter [ABXV]
- 0.626 Inches Minimum And 0.627 Inches Maximum
- Bore Feature [BYDS]
- Included
- Bore Length [ADGE]
- 0.750 Inches Nominal
- Bore Type [ASBP]
- Straight
- Counterbore Feature [AXND]
- Not Included
- Design Form [ARJD]
- Webbed
- Face Width [AQPL]
- 0.750 Inches Nominal
- Groove Depth [ABGA]
- 0.500 Inches Nominal
- Groove Quantity [AXHQ]
- 1
- Groove Shape [BXSM]
- V
- Groove Width [ABGF]
- 0.563 Inches Nominal
- Hub End Outside Diameter And Location [BYZD]
- 1.500 Inches Nominal Both Ends
- Outside Diameter [ABHE]
- 4.000 Inches Nominal
- Integral Cooling Vane [BXSK]
- Not Included
- Keying Facility [BSGG]
- Not Included
- Lightening Hole [BXSJ]
- Not Included
- Material And Location [ANNQ]
- Iron, Cast, Qq-I-652, Class 30 Overall And Iron, Mil-I-11444, Class 8 Overall And Iron, Mil-I-11466, Class D4018 Overall
- Pitch Diameter [AGJS]
- 3.700 Inches Minimum And 4.000 Inches Maximum
- V Groove Angle In Deg [AGGS]
- 30.0
- Web/Spoke Relationship To Face Centerline [BXSH]
- Not Offset
- Split Hub Feature [BSYG]
- Not Included
- Style Designator [STYL]
- Webbed Or Spoked
- Surface Treatment [SFTT]
- Cadmium
Weapon Systems (WSDC) 3020-00-679-9189
DLA Procurement Analysis 3020-00-679-9189
- Last Stock Position:
- 10 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3020-00-679-9189
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3020-00-679-9189
Freight Information 3020-00-679-9189
3020-00-679-9189 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127320. A Sub NMFC of X. It has a NMFC Description of PULLEYS/SHEAVES,NOI. 3020-00-679-9189 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3020-00-679-9189 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-00-679-9189 is not classified as a special type of cargo when transported by water. 3020-00-679-9189 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-00-679-9189
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x 4.0" W x -- L
- --
- --
- --
- Any Suitable Process
- 4.0" H x 4.0" W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- No Requirement
- Not Applicable
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 3020-00-679-9189 4 Records
Contracting Technical Data File (CTDF) 3020-00-679-9189 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
