3020-00-678-4238

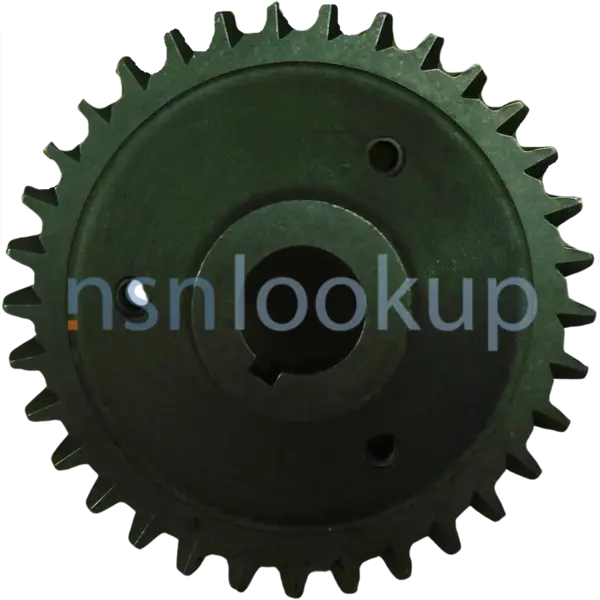

Spur Gear
3020006784238 006784238 8682691
A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION. View more Spur Gear
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
28
28
NATO Data Quality
Marketplace 3020-00-678-4238
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-678-4238 5+ Documents (More...)
instructions how to enable JavaScript in your web browser . 3020-27-025-3332Spur Gear3020270253332 270253332 8682691
Spur Gear 3020006784238 006784238,8682691 Upgrade for $1 a day Upgrade your Account Upgrade 3020
-00-678-4238Spur Gear3020006784238 006784238 8682691 Details... 3020-00-678-4238 GEAR,SPUR 8 EA NS Request
Spur Gear 3020006784238 006784238,8682691 Upgrade for $1 a day Upgrade your Account Upgrade 3020
-00-678-4238Spur Gear3020006784238 006784238 8682691 Details... 3020-00-678-4238 GEAR,SPUR 8 EA NS Request
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 8682691
Documents 3020-01-439-3445 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-678-4238
Spur Gear 3020006784238 006784238,8682691 AssyUOMTechnical DocumentQuantative ExpressionUS Marine
Documents 3020-01-439-3445 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-678-4238
Spur Gear 3020006784238 006784238,8682691 AssyUOMTechnical DocumentQuantative ExpressionUS Marine
Documents 2840-00-877-0062 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-678-4238
Spur Gear 3020006784238 006784238,8682691 3020-00-678-4238 3020006784238 006784238 is a gear, cylindrical
Spur Gear 3020006784238 006784238,8682691 3020-00-678-4238 3020006784238 006784238 is a gear, cylindrical
8682683 3040-00-851-4909 11 24 19207 8682684 30 9 31 30 19207 8682689 3020-00-678-4239 27 32 19207 8682691
3020-00-678-4238 27 14 19207 8682694 42 29 42 35 19207 8682700 2815-00-679-8093 54 8 19207 8682701 2815
3020-00-678-4238 27 14 19207 8682694 42 29 42 35 19207 8682700 2815-00-679-8093 54 8 19207 8682701 2815
8682683 3040-00-851-4909 11 21 19207 8682684 53 21 54 21 19207 8682689 3020-00-678-4239 28 34 19207 8682691
3020-00-678-4238 28 16 19207 8682694 40 11 40 22 19207 8682700 2815-00-679-8093 51 7 19207 8682701 2815
3020-00-678-4238 28 16 19207 8682694 40 11 40 22 19207 8682700 2815-00-679-8093 51 7 19207 8682701 2815
Restrictions 3020-00-678-4238
3020-00-678-4238 is a Spur Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-00-678-4238
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-678-4238
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3020-00-678-4238
- Part Number
- Manufacturer
- Status
- 8682691
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 8682691
- 02978 - Renk America Llc (Active)
- Secondary Buy
- Secondary Buy
- 8682691
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- 3020006784238
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3020-00-678-4238
- Characteristic
- Specifications
- FIIG
- Specifications
- A27300
- Attachment Method [ABSX]
- Mounting Hole
- Body Style [AAQL]
- Webbed, Offset, Solid
- Bolt Hole Circle Nominal Diameter [CWZN]
- 3.120 Inches Axially Through Body, First End
- Bore Style [ANTP]
- Tapered W/Keyway Both Ends
- Face Nominal Width [CWRM]
- 0.880 Inches
- Hub Style Designator [CWTR]
- Plain Both Ends
- Hub Nominal Diameter [CWTX]
- 1.910 Inches First End
- Hub Nominal Diameter [CWTX]
- 2.090 Inches Second End
- Material Document And Classification [MDCL]
- Mil-S-13048 Mil Spec Single Material Response Overall
- Mounting Hole Nominal Thread Size [CQLT]
- 0.312 Inches Transversely Through Face
- Mounting Hole Thread Quantity Per Inch [CMLM]
- 24 Axially Through Body, First End
- Mounting Hole Thread Series Designator [CMLK]
- Unf Axially Through Body, First End
- Mounting Hole Type And Quantity [CTQY]
- 3 Threaded Axially Through Body, First End
- Nominal Distance Between Body Face And Protruding Hub End [CWQL]
- 0.250 Inches Second End
- Nominal Distance Between Body Face And Protruding Hub End [CWQL]
- 1.030 Inches First End
- Nominal Distance Between Body Face And Recessed Hub End [CWQR]
- 0.630 Inches Second End
- Nominal Distance From Bore Center To Keyway Bottom [CWSR]
- 0.550 Inches First End
- Nominal Distance From Bore Center To Keyway Bottom [CWSR]
- 0.679 Inches Second End
- Nominal Outside Diameter [CWCD]
- 5.747 Inches
- Nominal Overall Length [CWFR]
- 1.910 Inches
- Hardness Rating [CQFM]
- 45.0 Rockwell C Minimum And 52.0 Rockwell C Maximum Overall
- Material [MATT]
- Steel Overall
- Keyway Nominal Width [CWSN]
- 0.252 Inches Both Ends
- Pitch Diameter [AGJS]
- 5.5000 Inches Nominal
- Pressure Angle [CWPP]
- 20.0000 Degrees
- Tooth Form [CWNH]
- Standard
- Style Designator [STYL]
- One Protruding Hub, One Recessed Hub
- Taper Major Nominal Diameter [CWSW]
- 1.358 Inches Second End
- Teeth Quantity [AJLA]
- 33
Weapon Systems (WSDC) 3020-00-678-4238
DLA Procurement Analysis 3020-00-678-4238
- Last Stock Position:
- 212 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3020-00-678-4238
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Dec 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 3020-01-439-3445
- 0
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 3020-00-678-4238
2805-99-413-7274 3020-12-146-9707 3020-12-199-8468 3020-99-223-1536 3020-21-905-8135 3020-66-115-3516 3020-12-159-7736 3020-12-188-8438 3020-22-126-4785 3020-99-763-3240 3020-99-438-9083 3020-12-381-3656 3020-12-320-4918 5825-99-952-6815 3020-99-350-6007 3020-12-386-1783 3020-99-543-0526 3020-12-339-5116
Freight Information 3020-00-678-4238
3020-00-678-4238 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062070. A Sub NMFC of Z. It has a NMFC Description of GEAR MOTORS/PARTS NOI. 3020-00-678-4238 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64910 which rates the freight between FCL and LCL. 3020-00-678-4238 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-00-678-4238 is not classified as a special type of cargo when transported by water. 3020-00-678-4238 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-00-678-4238
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 3020-00-678-4238 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7L516M0342
- 05 Jan 2016
- Subscribe
- 178
- Subscribe
- Subscribe
- Subscribe
- SPE7L015M3004P00001
- 21 Jul 2015
- Subscribe
- 53
- Subscribe
- Subscribe
- Subscribe
- SPE7L415M2818
- 16 Jun 2015
- Subscribe
- 188
- Subscribe
- Subscribe
- Subscribe
- SPE7L513M0091
- 30 Sep 2013
- Subscribe
- 39
- Subscribe
- Subscribe
- Subscribe
- SPM7L213V2684
- 07 Feb 2013
- Subscribe
- 53
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 3020-00-678-4238 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
