3020-00-433-2167

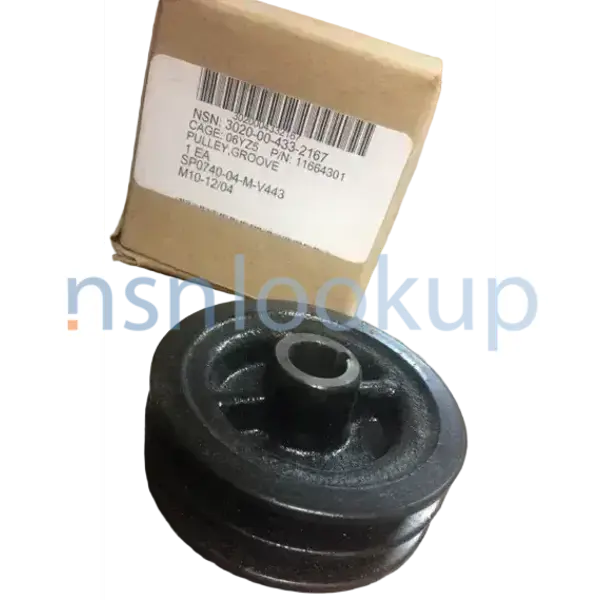

Groove Pulley
3020004332167 004332167 11664301 PU677
A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE.For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION. View more Groove Pulley
Managed by United States
NSN Created on 30 Jul 1970
Data Last Changed
November 2023
November 2023
NATO Update Count
39
39
NATO Data Quality
Marketplace 3020-00-433-2167
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-433-2167 4+ Documents (More...)
29 Aug 1969 2920-00-433-3720 Retainer Parts Kit P90-2059RNCC: 5 | RNVC: 9 | DAC: 5 5 Feb 1972 3020-00-433-2167
Feb 1972 5310-00-432-3959 Hexagon Self-Locking Nut 76985RNCC: 3 | RNVC: 2 | DAC: 5 3 May 1971 3020-00-433-2167
CAGE 7PU67 Rose Township Of in Holly, MI United States
CAGE 77PU6 Success Resources, Llc in Durham, NC United States
Restrictions 3020-00-433-2167
3020-00-433-2167 is a Groove Pulley that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-00-433-2167
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-433-2167
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZCTBD
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Brazil (YA01)
- Effective Date:
- 1 Jan 2003
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3020-00-433-2167
- Part Number
- Manufacturer
- Status
- 11664301
- Manufacturer
- 34623 - Am General Llc (Active)
- Primary Buy
- Primary Buy
- 11664301
- 19207 - U S Army Tank Automotive Command (Active)
- Secondary Buy
- Secondary Buy
- PU677
- 24975 - Prestolite Electric Inc (Active)
- Secondary Buy
- Secondary Buy
- PU677
- 68505 - Prestolite Electric Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3020004332167
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3020-00-433-2167
- Characteristic
- Specifications
- FIIG
- Specifications
- T353-A
- Distance From Center Of Bore To Bottom Of Keyway [AEVF]
- 0.403 Inches Minimum And 0.409 Inches Maximum
- Distance From Outside Flange/Rim To Hub End And Location [BYZF]
- 0.342 Inches Nominal Aa End And 0.187 Inches Maximum Bb End
- Bearings [AWJQ]
- Not Included
- Bore Diameter [ABXV]
- 0.669 Inches Nominal
- Bore Feature [BYDS]
- Included
- Bore Length [ADGE]
- 1.303 Inches Minimum And 1.305 Inches Maximum
- Bore Type [ASBP]
- Straight
- Counterbore Feature [AXND]
- Not Included
- Design Form [ARJD]
- Webbed
- Face Width [AQPL]
- 1.218 Inches Nominal
- Groove Width [ABGF]
- 0.310 Inches Nominal
- Groove Depth [ABGA]
- 0.500 Inches Nominal
- Groove Quantity [AXHQ]
- 2
- Groove Shape [BXSM]
- V
- Hub End Outside Diameter And Location [BYZD]
- 1.000 Inches Nominal Both Ends
- Outside Diameter [ABHE]
- 3.620 Inches Nominal
- Integral Cooling Vane [BXSK]
- Not Included
- Keyway Width [ABRR]
- 0.125 Inches Nominal
- Keying Facility [BSGG]
- Included
- Keying Facility Type [BSGK]
- Keyway
- Lightening Hole [BXSJ]
- Not Included
- Material And Location [ANNQ]
- Iron, Cast, Qq-I-652, Class 25 Overall
- Pitch Diameter [AGJS]
- 3.500 Inches Nominal
- Protruding Hub Characteristic [BYDZ]
- Plain
- Quantity [NMBR]
- 1
- Overall Length [ABHP]
- 1.560 Inches Nominal
- V Groove Angle In Deg [AGGS]
- 36.0
- Web/Spoke Relationship To Face Centerline [BXSH]
- Offset
- Split Hub Feature [BSYG]
- Not Included
- Style Designator [STYL]
- Webbed Or Spoked
- Surface Treatment [SFTT]
- Enamel,Black
Weapon Systems (WSDC) 3020-00-433-2167
DLA Procurement Analysis 3020-00-433-2167
- Last Stock Position:
- 81 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3020-00-433-2167
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 3020-00-433-2167
3020-99-660-2973 3020-12-303-0137 3020-12-339-8652 3020-21-902-1543 3020-99-051-2732 3020-17-102-8872 3020-12-330-2546 3020-99-338-4180 3020-99-754-2704 3020-99-833-2781 3020-66-059-8089 3020-14-571-5989 3020-17-111-7320 3020-99-773-5652 3020-12-330-7699 3020-66-155-3652 3020-99-725-6485 3020-12-327-9955
Freight Information 3020-00-433-2167
3020-00-433-2167 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127320. A Sub NMFC of X. It has a NMFC Description of PULLEYS/SHEAVES,NOI. 3020-00-433-2167 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3020-00-433-2167 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-00-433-2167 is not classified as a special type of cargo when transported by water. 3020-00-433-2167 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-00-433-2167
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-203, Kraft Wrapping Paper
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- A-A-203, Kraft Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 3020-00-433-2167 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
