3020-00-272-6038

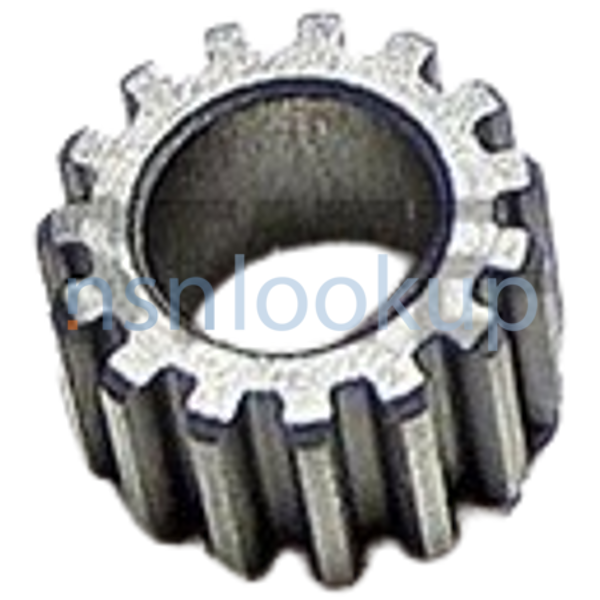

Spur Gear
3020002726038 002726038 33419 A5226400 5226400 3020-272-6038 K-5226400 6207436 PC5226400
A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION. View more Spur Gear
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
66
66
NATO Data Quality
Marketplace 3020-00-272-6038
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
33419 GEAR,SPUR 1800 EA NS
K-5226400 GEAR,SPUR 900 EA NS
K-5226400 GEAR,SPUR 900 EA NS
33419 GEAR,SPUR 1800 EA NS
PC5226400 GEAR,SPUR 2 EA NS
K-5226400 GEAR,SPUR 2 EA NS
33419 GEAR,SPUR 1 EA NS
5226400 GEAR,SPUR 1 EA NS
A5226400 GEAR,SPUR 3 EA NS
A5226400 RQST NE
5226400 RQST NE
Updated Every Day 3020-00-272-6038 RQST NE
Updated Every Day 3020-00-272-6038 RQST
Updated Every Day 3020-00-272-6038 RQST NE
Related Documents 3020-00-272-6038 5+ Documents (More...)
33419 A5226400 5226400 3020-272-6038 K-5226400 6207436 PC5226400 A gear, cylindrical in form, with straight
PC5226400 GEAR,SPUR 2 EA NS Request Quotation K-5226400 GEAR,SPUR 2 EA NS Request Quotation 33419 GEAR
Every Day A5226400 RQST NE Updated Every Day 5226400 RQST NE Updated Every Day 3020-00-272-6038 RQST
PC5226400 GEAR,SPUR 2 EA NS Request Quotation K-5226400 GEAR,SPUR 2 EA NS Request Quotation 33419 GEAR
Every Day A5226400 RQST NE Updated Every Day 5226400 RQST NE Updated Every Day 3020-00-272-6038 RQST
https//www.nsnlookup.com
/fsg-10/fsc-1010/us
/fsg-10/fsc-1010/us
1010-00-360-1503 Bracket 1010003601503 003601503,395404
Spur Gear 3020002726038 002726038,,33419 day Upgrade your Account Upgrade 3020-00-272-6038Spur
Gear3020002726038 002726038 33419 A5226400 5226400 3020-272-6038 K-5226400 6207436 PC5226400 A gear,
https//www.nsnlookup.com /fsg-29/fsc-2910/us 2910-00-620-7436 Spur Gear 2910006207436 006207436 K-5226400
Gear3020002726038 002726038 33419 A5226400 5226400 3020-272-6038 K-5226400 6207436 PC5226400 A gear,
https//www.nsnlookup.com /fsg-29/fsc-2910/us 2910-00-620-7436 Spur Gear 2910006207436 006207436 K-5226400
K-5226400 GEAR,SPUR 900 EA NS Request Quotation 33419 GEAR,SPUR 1800 EA NS Request Quotation 33419 GEAR
,SPUR 1800 EA NS Request Quotation K-5226400 GEAR,SPUR 900 EA NS Request Quotation Subscribe to View
GEAR,SPUR 1 EA NS Request Quotation PC5226400 GEAR,SPUR 2 EA NS Request Quotation 5226400 GEAR,SPUR
,SPUR 1800 EA NS Request Quotation K-5226400 GEAR,SPUR 900 EA NS Request Quotation Subscribe to View
GEAR,SPUR 1 EA NS Request Quotation PC5226400 GEAR,SPUR 2 EA NS Request Quotation 5226400 GEAR,SPUR
GEAR,SPUR 1800 EA NS Request Quotation K-5226400 GEAR,SPUR 900 EA NS Request Quotation K-5226400 GEAR
Details... 5226400 GEAR,SPUR 42 EA NS Request Quotation Subscribe to View Vendor Details... 5226400
GEAR,SPUR 1 EA NS Request Quotation PC5226400 GEAR,SPUR 2 EA NS Request Quotation K-5226400 GEAR,SPUR
Details... 5226400 GEAR,SPUR 42 EA NS Request Quotation Subscribe to View Vendor Details... 5226400
GEAR,SPUR 1 EA NS Request Quotation PC5226400 GEAR,SPUR 2 EA NS Request Quotation K-5226400 GEAR,SPUR
Dec 1965 6695-00-034-3918 Valve Injector Gage A5228696RNCC: 5 | RNVC: 2 | DAC: 6 1 Jan 1961 3020-00-272-6038
Restrictions 3020-00-272-6038
3020-00-272-6038 is a Spur Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-00-272-6038
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-272-6038
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZCLBFBD
- US Coast Guard (C911)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- C001
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTKEJBHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Jun 1996
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 3020-00-272-6038
- Part Number
- Manufacturer
- Status
- 5226400
- Manufacturer
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Primary Buy
- Primary Buy
- 5226400
- K4285 - Terex Equipment Ltd (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 5226400
- 55380 - Hatch & Kirk, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 5226400
- 71934 - General Motors Corp Rochester (Obsolete)
- Secondary Buy
- Secondary Buy
- 5226400
- 80072 - H20 Tank Inc U S Motors Div (Active)
- Secondary Buy
- Secondary Buy
- 33419
- 13841 - Tiffin Parts, L.L.C. (Active)
- Secondary Buy
- Secondary Buy
- A5226400
- 60101 - Interstate Diesel Service, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 5226400
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3020-272-6038
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3020002726038
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- K-5226400
- 18954 - Korody-Colyer Corp A Cr Industries (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 6207436
- 19207 - U S Army Tank Automotive Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PC5226400
- C7432 - Power Components (Deutschland) Gmbh (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5226400
- F0742 - Delphi France Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3020-00-272-6038
- Characteristic
- Specifications
- FIIG
- Specifications
- A27300
- Body Style [AAQL]
- Plain, Solid
- Bore Nominal Diameter [CWRS]
- 0.2660 Inches Both Ends
- Bore Style [ANTP]
- Plain Both Ends
- Face Nominal Width [CWRM]
- 0.3120 Inches
- Nominal Outside Diameter [CWCD]
- 0.520 Inches
- Hardness Rating [CQFM]
- 72.0 Rockwell C Minimum And 75.0 Rockwell C Maximum Overall
- Material [MATT]
- Steel Comp 1212 Overall
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall And Aisi B1112,1212/Sae 1112 Assn Std Single Material Response Overall
- Pressure Angle [CWPP]
- 14.5000 Degrees
- Pitch Diameter [AGJS]
- 0.4687 Inches Nominal
- Style Designator [STYL]
- Hubless
- Teeth Quantity [AJLA]
- 15
- Tooth Form [CWNH]
- Standard
Weapon Systems (WSDC) 3020-00-272-6038
DLA Procurement Analysis 3020-00-272-6038
- Last Stock Position:
- 237 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3020-00-272-6038
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 3020-00-272-6038
2805-99-413-7274 3020-12-146-9707 3020-12-199-8468 3020-99-223-1536 3020-21-905-8135 3020-66-115-3516 3020-12-159-7736 3020-12-188-8438 3020-22-126-4785 3020-99-763-3240 3020-99-438-9083 3020-12-381-3656 3020-12-320-4918 5825-99-952-6815 3020-99-350-6007 3020-12-386-1783 3020-99-543-0526 3020-12-339-5116
Freight Information 3020-00-272-6038
3020-00-272-6038 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 197337. A Sub NMFC of Z. It has a NMFC Description of WHEELS COG/GEAR/PINION/SPROCK. 3020-00-272-6038 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 96690 which rates the freight between FCL and LCL. 3020-00-272-6038 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-00-272-6038 is not classified as a special type of cargo when transported by water. 3020-00-272-6038 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-00-272-6038
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 3020-00-272-6038 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
