3020-00-230-0066

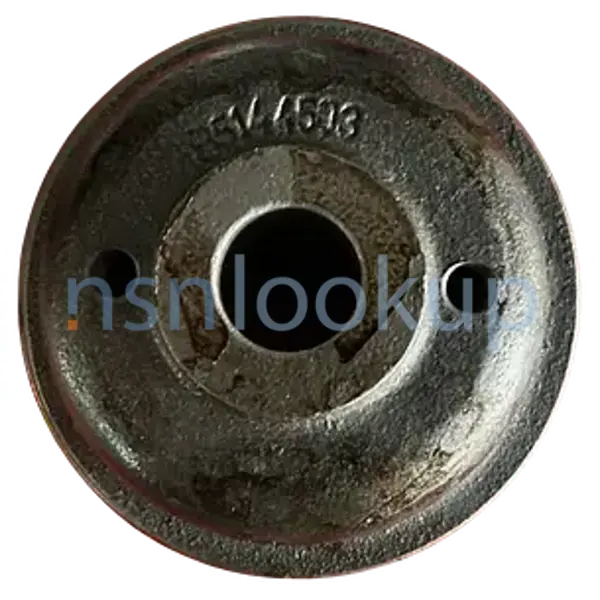

Groove Pulley
3020002300066 002300066 5144503 B5144503 5144502 K-5144503
A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE.For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION. View more Groove Pulley
Managed by United States
NSN Created on 3 Mar 1971
Data Last Changed
November 2023
November 2023
NATO Update Count
50
50
NATO Data Quality
Marketplace 3020-00-230-0066
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-230-0066 3+ Documents (More...)
https//www.nsnlookup.com
/fsg-30/fsc-3020/us
/fsg-30/fsc-3020/us
3020-00-230-0066 Groove Pulley 3020002300066 002300066,
5144503 B5144503 5144502 K-5144503 A pulley with one or more grooved faces or rims of the same diameter
RQST NE Updated Every Day 3020-00-230-0066 RQST Updated Every Day 3020-00-230-0066 RQST NE Related
Documents 3020-00-230-0066 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020
RQST NE Updated Every Day 3020-00-230-0066 RQST Updated Every Day 3020-00-230-0066 RQST NE Related
Documents 3020-00-230-0066 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020
enable JavaScript in your web browser . 4710-27-055-4180Metal Tube Assembly4710270554180 270554180 5144503
Every Day 4710-27-055-4180 RQST NE Restrictions https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-230-0066
Groove Pulley 3020002300066 002300066, B5144503 5144502 K-5144503 A pulley with one or more grooved
Every Day 4710-27-055-4180 RQST NE Restrictions https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-230-0066
Groove Pulley 3020002300066 002300066, B5144503 5144502 K-5144503 A pulley with one or more grooved
20763020009022076009022076 PULLEY,GROOVE Restrictions https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-230-0066
Groove Pulley 3020002300066 002300066, B51445035144502K-5144503 A pulley with one or more grooved
Navy (DN)NZDiscontinued-Use 3020-00-230-0066Defense Logistics Agency (DS)IZDiscontinued-Use 3020-00-230-0066
Groove Pulley 3020002300066 002300066, B51445035144502K-5144503 A pulley with one or more grooved
Navy (DN)NZDiscontinued-Use 3020-00-230-0066Defense Logistics Agency (DS)IZDiscontinued-Use 3020-00-230-0066
Restrictions 3020-00-230-0066
3020-00-230-0066 is a Groove Pulley that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3020-00-230-0066
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-230-0066
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Coast Guard (C911)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- C001
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Sep 2011
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Jun 2015
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 3020-00-230-0066
- Part Number
- Manufacturer
- Status
- 5144503
- Manufacturer
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Primary Buy
- Primary Buy
- B5144503
- 7U177 - Federal-Mogul Corporation (Active)
- Secondary Buy
- Secondary Buy
- 3020002300066
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5144502
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- K-5144503
- 18954 - Korody-Colyer Corp A Cr Industries (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5144503
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3020-00-230-0066
- Characteristic
- Specifications
- FIIG
- Specifications
- T353-A
- Distance From Outside Flange/Rim To Hub End And Location [BYZF]
- 1.094 Inches Nominal Aa End And 1.531 Inches Nominal Bb End
- Bearings [AWJQ]
- Not Included
- Bore Diameter [ABXV]
- 0.750 Inches Nominal
- Bore Feature [BYDS]
- Included
- Bore Length [ADGE]
- 0.812 Inches Nominal
- Bore Type [ASBP]
- Straight
- Counterbore Feature [AXND]
- Not Included
- Design Form [ARJD]
- Webbed
- Face Width [AQPL]
- 1.750 Inches Nominal
- Groove Depth [ABGA]
- 0.500 Inches Nominal
- Groove Quantity [AXHQ]
- 2
- Groove Shape [BXSM]
- V
- Groove Width [ABGF]
- 0.375 Inches Nominal
- Hole Location [BFYT]
- Thru Hub Face 180 Degapart
- Outside Diameter [ABHE]
- 3.750 Inches Nominal
- Integral Cooling Vane [BXSK]
- Not Included
- Keying Facility [BSGG]
- Not Included
- Lightening Hole [BXSJ]
- Not Included
- Material And Location [ANNQ]
- Steel Overall
- Securing Method [BSNP]
- Threaded Hole
- Securing Hole Quantity [AHYF]
- 2
- Securing Location [BYFF]
- Aa End
- Overall Length [ABHP]
- 2.344 Inches Nominal
- Pitch Diameter [AGJS]
- 3.250 Inches Nominal
- V Groove Angle In Deg [AGGS]
- 20.0
- Split Hub Feature [BSYG]
- Not Included
- Style Designator [STYL]
- Webbed Or Spoked
- Thread Size [ABUJ]
- 0.312-18
Weapon Systems (WSDC) 3020-00-230-0066
DLA Procurement Analysis 3020-00-230-0066
- Last Stock Position:
- 100 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3020-00-230-0066
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 3020-00-230-0066
3020-99-660-2973 3020-12-303-0137 3020-12-339-8652 3020-21-902-1543 3020-99-051-2732 3020-17-102-8872 3020-12-330-2546 3020-99-338-4180 3020-99-754-2704 3020-99-833-2781 3020-66-059-8089 3020-14-571-5989 3020-17-111-7320 3020-99-773-5652 3020-12-330-7699 3020-66-155-3652 3020-99-725-6485 3020-12-327-9955
Freight Information 3020-00-230-0066
3020-00-230-0066 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127320. A Sub NMFC of X. It has a NMFC Description of PULLEYS/SHEAVES,NOI. 3020-00-230-0066 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3020-00-230-0066 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-00-230-0066 is not classified as a special type of cargo when transported by water. 3020-00-230-0066 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-00-230-0066
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x 3.0" W x 2.0" L
- --
- --
- --
- Any Suitable Process
- 4.0" H x 3.0" W x 2.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 3020-00-230-0066 3 Records
Contracting Technical Data File (CTDF) 3020-00-230-0066 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
