3020-00-181-3068

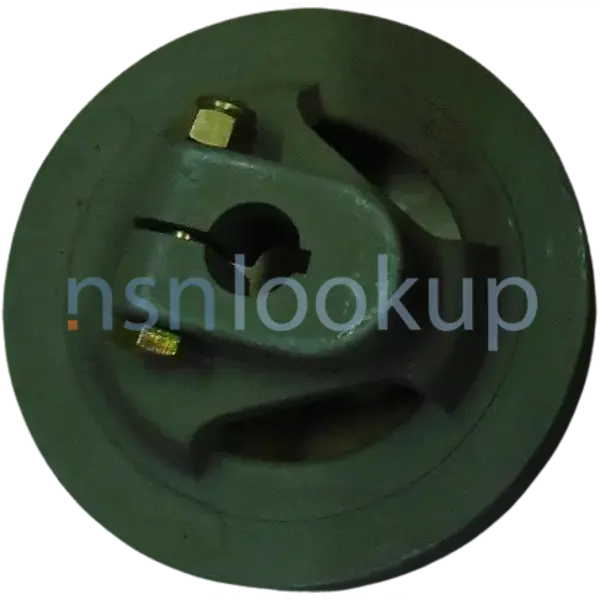

Groove Pulley
3020001813068 001813068 11661358
A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE.For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION. View more Groove Pulley
July 2025
43
Marketplace 3020-00-181-3068
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-181-3068 5+ Documents (More...)
/fsg-30/fsc-3020/us
to View Vendor Details... 11661358 PULLEY 1 EA NS Request Quotation 11661358 PULLEY 15 EA NS Request
Day 3020-00-181-3068 RQST Updated Every Day 3020-00-181-3068 RQST NE Related Documents 3020-00-181-3068
Restrictions 3020-00-181-3068
3020-00-181-3068 is a Groove Pulley that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-00-181-3068
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-181-3068
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Nov 1998
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1998
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3020-00-181-3068
- Part Number
- Manufacturer
- Status
- 11661358
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 3020001813068
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3020001813068
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3020-00-181-3068
- Characteristic
- Specifications
- FIIG
- Specifications
- T353-A
- Distance From Center Of Bore To Bottom Of Keyway [AEVF]
- 0.464 Inches Nominal
- Distance From Outside Flange/Rim To Hub End And Location [BYZF]
- 1.717 Inches Nominal Aa End And 1.407 Inches Nominal Bb End
- Bearings [AWJQ]
- Not Included
- Bore Diameter [ABXV]
- 0.751 Inches Minimum And 0.755 Inches Maximum
- Bore Feature [BYDS]
- Included
- Bore Length [ADGE]
- 1.750 Inches Nominal
- Bore Type [ASBP]
- Straight
- Clamping Bolt Quantity [BYFD]
- 1
- Counterbore Feature [AXND]
- Not Included
- Design Form [ARJD]
- Webbed
- Face Width [AQPL]
- 1.440 Inches Nominal
- Groove Width [ABGF]
- 0.437 Inches Nominal
- Groove Depth [ABGA]
- 0.716 Inches Nominal
- Groove Quantity [AXHQ]
- 2
- Groove Shape [BXSM]
- V
- Hub End Outside Diameter And Location [BYZD]
- 2.620 Inches Nominal Aa End And 1.399 Inches Nominal Bb End
- Hub Split Location [BYFC]
- Through One Wall
- Outside Diameter [ABHE]
- 5.200 Inches Nominal
- Integral Cooling Vane [BXSK]
- Not Included
- Keyway Spacing In Deg [AEVJ]
- 180.0
- Keyway Width [ABRR]
- 0.1885 Inches Minimum And 0.1905 Inches Maximum
- Keying Facility Type [BSGK]
- Keyway
- Keying Facility [BSGG]
- Included
- Lightening Hole [BXSJ]
- Not Included
- Material And Location [ANNQ]
- Steel, Carbon Hub And Steel, Sheet Body
- Quantity [NMBR]
- 1
- Securing Location [BYFF]
- Aa End
- Securing Method [BSNP]
- Compression
- Overall Length [ABHP]
- 3.157 Inches Nominal
- V Groove Angle In Deg [AGGS]
- 36.0
- Web/Spoke Relationship To Face Centerline [BXSH]
- Offset
- Split Hub Feature [BSYG]
- Included
- Style Designator [STYL]
- Webbed Or Spoked
- Surface Treatment [SFTT]
- Enamel
Similar Supply Items to 3020-00-181-3068
Freight Information 3020-00-181-3068
3020-00-181-3068 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127300. A Sub NMFC of X. It has a NMFC Description of PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS. 3020-00-181-3068 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. 3020-00-181-3068 is rated as class 60 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-00-181-3068 is not classified as a special type of cargo when transported by water. 3020-00-181-3068 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-00-181-3068
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- 6.2" H x 5.8" W x 3.6" L
- --
- --
- --
- Special Requirements
- 6.2" H x 5.8" W x 3.6" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Special requirement – See specific instructions or drawings provided
