3020-00-097-2475

Spur Gear

3020000972475 000972475 5181747 K-5181747 5174970 PC5181747

A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION. View more Spur Gear

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
May 2025

NATO Update Count
49

NATO Data Quality

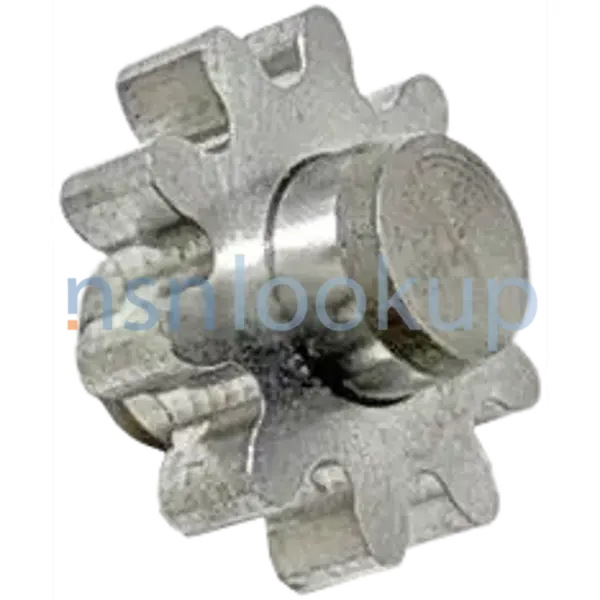

3020-00-097-2475 GEAR,SPUR 3020000972475 000972475 1/3 — 3020-00-097-2475 Photo 1/3

AAQL Style 1 for 3020-00-097-2475 2/3 — NSN 3020-00-097-2475 (Identification) 2/3

STYL Style 4 for 3020-00-097-2475 3/3 — NSN 3020-00-097-2475 (Identification) 3/3

Marketplace 3020-00-097-2475

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5181747GEARDETROIT GEAR,SPUR RQST NS

Subscribe to View Vendor Details...

K5181747 GEAR,SPUR 1 EA NS

Subscribe to View Vendor Details...

3020-00-097-2475 GEAR,SPUR RQST NS

Updated Every Day

5181747 RQST NE

Updated Every Day

3020-00-097-2475 RQST NE

Updated Every Day

3020-00-097-2475 RQST

Updated Every Day

3020-00-097-2475 RQST NE

Restrictions 3020-00-097-2475

3020-00-097-2475 is a Spur Gear that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 3020-00-097-2475

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 3020-00-097-2475

US Army (A920)
Effective Date:: 1 Jul 2005
Former MOE Rule:: A181
Supplementary Receivers:: AZ; AMC 1 AMSC L IMC Z IMCACTY AJ

US Coast Guard (C911)
Effective Date:: 1 Jul 2005
Former MOE Rule:: C001; AMC 1 AMSC L

US Air Force (FXGC)
Effective Date:: 1 Jul 2005
Former MOE Rule:: FXAX; AMC 1 AMSC L IMC Z IMCACTY SX

US Navy (N9BC)
Effective Date:: 1 Jul 2005
Former MOE Rule:: NICD
Supplementary Collaborators:: GTKEJBHD; AMC 1 AMSC L IMC Z IMCACTY GH

Lithuania (WI01)
Effective Date:: 1 May 2001

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Argentina (YF01)
Effective Date:: 1 Sep 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Jan 1998

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Nov 1997

Italy (ZR01)
Effective Date:: 1 Jul 1997

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

Approved Sources 3020-00-097-2475

Datasheet 3020-00-097-2475

Characteristic
Specifications
FIIG: A27300
Material [MATT]: Steel Overall
Teeth Quantity [AJLA]: 10
Tooth Form [CWNH]: Stub
Pressure Angle [CWPP]: 20.0000 Degrees
Style Designator [STYL]: Protruding Hubs
Pitch Diameter [AGJS]: 1.0000 Inches Nominal
Nominal Outside Diameter [CWCD]: 1.200 Inches
Face Nominal Width [CWRM]: 0.250 Inches
Nominal Distance Between Body Face And Protruding Hub End [CWQL]: 0.2940 Inches First End
Hub Style Designator [CWTR]: Plain Both Ends
Hub Nominal Diameter [CWTX]: 0.5000 Inches Both Ends
Body Style [AAQL]: Plain, Solid
Special Features [FEAT]: Used On Detroit Diesel Engine,General Motors Corp,Series 7
