3020-00-019-3968

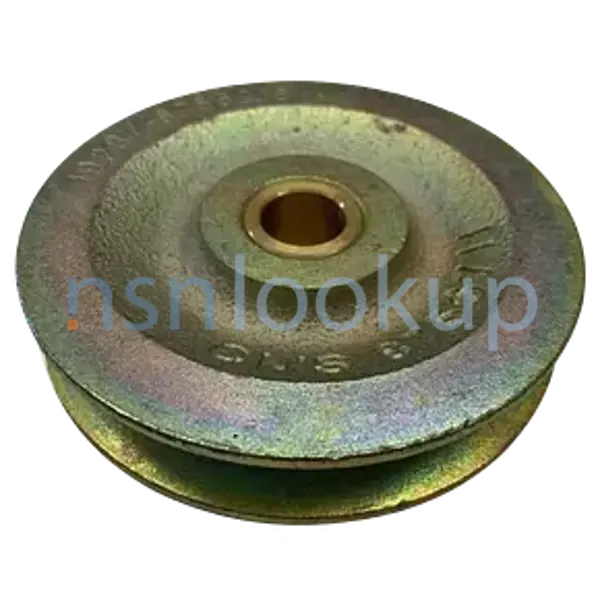

Groove Pulley
3020000193968 000193968 8756711
A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE.For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION. View more Groove Pulley
July 2025
44
Marketplace 3020-00-019-3968
Request a Quotation from participating marketplace vendors
Related Documents 3020-00-019-3968 5+ Documents (More...)
-019-3968 RQST Updated Every Day 3020-00-019-3968 RQST NE Related Documents 3020-00-019-3968 1+ Documents
( More... ) https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-00-019-3968 Groove Pulley 3020000193968
Restrictions 3020-00-019-3968
3020-00-019-3968 is a Groove Pulley that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3020-00-019-3968
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3020-00-019-3968
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 2000
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 3020-00-019-3968
- Part Number
- Manufacturer
- Status
- 8756711
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 3020000193968
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3020000193968
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3020-00-019-3968
- Characteristic
- Specifications
- FIIG
- Specifications
- T353-A
- Bearings [AWJQ]
- Not Included
- Bore Diameter [ABXV]
- 0.877 Inches Minimum And 0.878 Inches Maximum
- Bore Feature [BYDS]
- Included
- Bore Length [ADGE]
- 0.750 Inches Minimum And 0.781 Inches Maximum
- Bore Type [ASBP]
- Straight
- Counterbore Feature [AXND]
- Not Included
- Design Form [ARJD]
- Webbed
- Face Width [AQPL]
- 0.750 Inches Minimum And 0.781 Inches Maximum
- Groove Quantity [AXHQ]
- 1
- Groove Radius [AGWA]
- 0.200 Inches Nominal
- Groove Shape [BXSM]
- U
- Groove Width [ABGF]
- 0.400 Inches Nominal
- Groove Depth [ABGA]
- 0.500 Inches Nominal
- Hub End Outside Diameter And Location [BYZD]
- 1.500 Inches Nominal Both Ends
- Outside Diameter [ABHE]
- 4.000 Inches Nominal
- Integral Cooling Vane [BXSK]
- Not Included
- Keying Facility [BSGG]
- Not Included
- Lightening Hole [BXSJ]
- Not Included
- Material And Location [ANNQ]
- Iron, Cast, Qq-I-652, Class 30 Overall
- Protruding Hub Characteristic [BYDZ]
- Plain
- Web/Spoke Relationship To Face Centerline [BXSH]
- Not Offset
- Split Hub Feature [BSYG]
- Not Included
- Style Designator [STYL]
- Webbed Or Spoked
- Surface Treatment [SFTT]
- Cadmium Plated,Fed Qq-P-416,Type 1,Class 3
DLA Procurement Analysis 3020-00-019-3968
Management Data 3020-00-019-3968
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2004
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- V
- Discontinued Without Replacement
- V
Similar Supply Items to 3020-00-019-3968
Freight Information 3020-00-019-3968
3020-00-019-3968 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127320. A Sub NMFC of X. It has a NMFC Description of PULLEYS/SHEAVES,NOI. 3020-00-019-3968 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64560 which rates the freight between FCL and LCL. 3020-00-019-3968 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3020-00-019-3968 is not classified as a special type of cargo when transported by water. 3020-00-019-3968 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3020-00-019-3968
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension over 2", but less than 24"
- Above 110G
- MIL-PRF-16173, Cosmoline, Grade 2, Soft Film
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 6.0" H x 6.0" W x 3.0" L
- --
- --
- Preservative Coating Only
- Any Suitable Process
- 6.0" H x 6.0" W x 3.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 2, Corrosion Preventive, Solvent Cutback, Cold Application, Soft Film
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
- No Requirement
- Not Applicable
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- No special marking
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
