3010-01-621-9926
Rigid Shaft Coupling
3010016219926 016219926 M300A1412C
A device for connecting the ends of two shafts to produce in effect, one piece of rigid shafting so that the rotary motion of one shaft is transmitted to the other shaft. Couplings of the sleeve type must have an over-all length exceeding the outside diameter, or must have an internal spline. View more Rigid Shaft Coupling
November 2023
2
Marketplace 3010-01-621-9926
Request a Quotation from participating marketplace vendors
Related Documents 3010-01-621-9926 1+ Documents (More...)
BUY NE FedMall Updated Every Day 3010-01-621-9926 RQST NE Updated Every Day 3010-01-621-9926 RQST
Updated Every Day 3010-01-621-9926 RQST NE Related Documents 3010-01-621-9926 1+ Documents ( More...
Restrictions 3010-01-621-9926
3010-01-621-9926 is a Rigid Shaft Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3010-01-621-9926
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3010-01-621-9926
- US Air Force (FGGC)
- Effective Date:
- 1 Sep 2013
Approved Sources 3010-01-621-9926
- Part Number
- Manufacturer
- Status
- M300A1412C
- Manufacturer
- 1J878 - Sunsource/Activation (Active)
- Primary Buy
- Primary Buy
Datasheet 3010-01-621-9926
- Characteristic
- Specifications
- FIIG
- Specifications
- A522C0
- End Item Identification [AGAV]
- B1b Se
- Bore Shape [AGZD]
- Splined Through Bore
- Features Provided [CBBL]
- Keyway
- Body Material [CQRG]
- Steel
- Overall Diameter [ADAV]
- 3.449 Inches Minimum And 3.451 Inches Maximum
- Overall Length [ABHP]
- 3.570 Inches Minimum And 3.590 Inches Maximum
- Part Name Assigned By Controlling Agency [CXCY]
- Spline Coupling
- Special Features [FEAT]
- Clamp Type Spline
- Spline Major Diameter [AAUJ]
- 1.250 Inches Nominal Through Bore
- Spline Quantity [ABSA]
- 14 Through Bore
- Spline Type [AXYS]
- Straight Through Bore

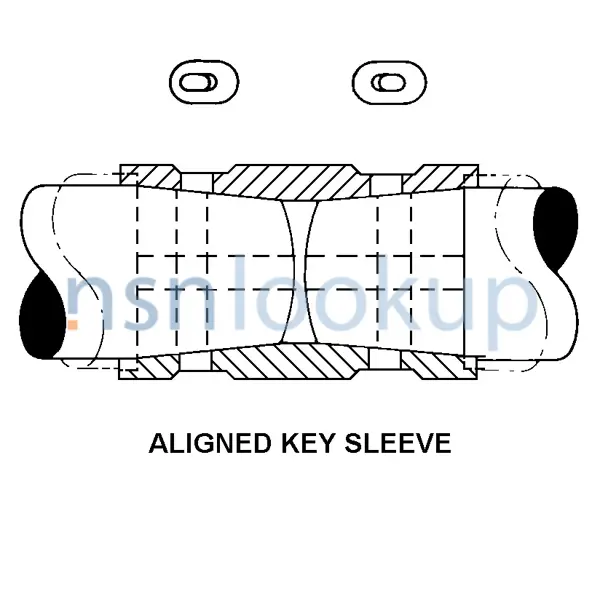

- Style Designator [STYL]
- Aligned Key Sleeve
Weapon Systems (WSDC) 3010-01-621-9926
DLA Procurement Analysis 3010-01-621-9926
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3010-01-621-9926
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 3010-01-621-9926
Freight Information 3010-01-621-9926
3010-01-621-9926 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 126880. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING PULLEYS. 3010-01-621-9926 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64300 which rates the freight between FCL and LCL. 3010-01-621-9926 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3010-01-621-9926 is not classified as a special type of cargo when transported by water. 3010-01-621-9926 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 3010-01-621-9926 2 Records
Contracting Technical Data File (CTDF) 3010-01-621-9926 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
