3010-01-417-9451
Shaft Coupling Half
3010014179451 014179451 352-0X7/8 IN. BORE 084188
A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling. View more Shaft Coupling Half
May 2023
4
Marketplace 3010-01-417-9451
Request a Quotation from participating marketplace vendors
Related Documents 3010-01-417-9451 2+ Documents (More...)
BUY NE FedMall Updated Every Day 3010-01-417-9451 RQST NE Updated Every Day 3010-01-417-9451 RQST
Updated Every Day 3010-01-417-9451 RQST NE Related Documents 3010-01-417-9451 2+ Documents ( More...
Shaft Coupling Half 3010014179451 014179451 RQST NE Updated Every Day 3010-01-417-9451 RQST https
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IZDiscontinued-Use 3010-01-417-9451
Restrictions 3010-01-417-9451
3010-01-417-9451 is a Shaft Coupling Half that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3010-01-417-9451
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3010-01-417-9451
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
Approved Sources 3010-01-417-9451
- Part Number
- Manufacturer
- Status
- 352-0X7/8 IN. BORE
- Manufacturer
- 5U072 - Motion Industries, Inc. (Active)
- Primary Buy
- Primary Buy
- 352-0X7/8 IN. BORE
- 76474 - Emerson Power Transmission (Active)
- Original Design
- Original Design
- 084188
- 76474 - Emerson Power Transmission (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3010-01-417-9451
- Characteristic
- Specifications
- FIIG
- Specifications
- A521X0
- Material [MATT]
- Steel

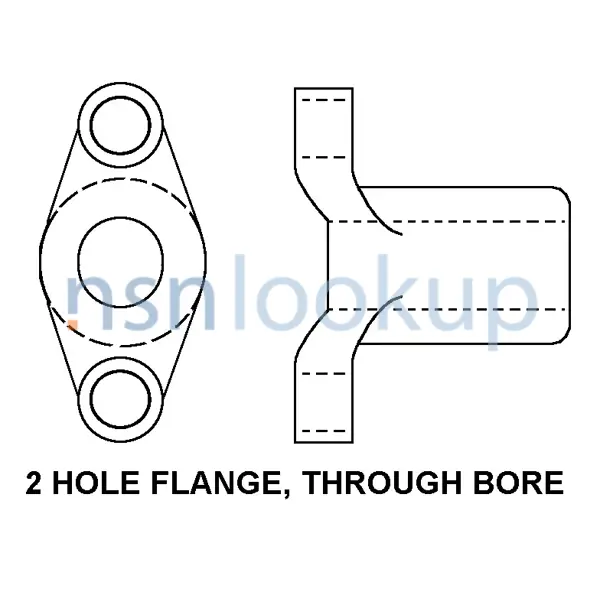

- Body Style [AAQL]
- 2 Hole Flange, Through Bore
- Overall Length [ABHP]
- 1.000 Inches Nominal
- Bore Shape [AGZD]
- Straight
- Bore Diameter [ABXV]
- 0.8750 Inches Nominal
- Bore Length [ADGE]
- 1.0000 Inches Nominal
- Special Features [FEAT]
- Unthreaded Bore Dia.:0.312" Nom.; Positioning Facility Bolt Circle Dia.:2.250" Nom.; Positioning Facility Qty:2; Positioning Hole Style:Plain; Bore Counterbore Feature:Not Included; Keying Facility:Not Included; O/A Outside Dimension:3" Nom.; Hub Od:1.375" Nom.; Thread Provision:Unthreaded; Flange Thickness:0.250" Nom.
- End Item Identification [AGAV]
- Weapons System Aircraft, Eagle F-15
DLA Procurement Analysis 3010-01-417-9451
Management Data 3010-01-417-9451
Similar Supply Items to 3010-01-417-9451
Freight Information 3010-01-417-9451
3010-01-417-9451 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126880. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING PULLEYS. 3010-01-417-9451 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64300 which rates the freight between FCL and LCL. 3010-01-417-9451 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3010-01-417-9451 is not classified as a special type of cargo when transported by water. 3010-01-417-9451 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3010-01-417-9451 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
