3010-00-312-0605

Flexible Coupling Insert

3010003120605 003120605 SM-C-178484 505-1766-002

An item specifically designed to be inserted between the driving and driven members of a flexible coupling to allow for slight misalignment of the shafts. View more Flexible Coupling Insert

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
August 2023

NATO Update Count
19

NATO Data Quality

STYL Style A6 for 3010-00-312-0605 1/1 — NSN 3010-00-312-0605 (Identification) 1/1

Marketplace 3010-00-312-0605

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

SM-C-178484 INSERT,FLEXIBLE COUPLING 1 EA NS

Subscribe to View Vendor Details...

505-1766-002 INSERT,FLEXIBLE COUPLING 7 EA NS

Updated Every Day

3010-00-312-0605 RQST NE

Updated Every Day

3010-00-312-0605 RQST

Updated Every Day

3010-00-312-0605 RQST NE

Restrictions 3010-00-312-0605

3010-00-312-0605 is a Flexible Coupling Insert that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 3010-00-312-0605

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 3010-00-312-0605

US Coast Guard (C911)
Effective Date:: 1 Jul 2005
Former MOE Rule:: C001; AMC 1 AMSC G

US Air Force (FXGC)
Effective Date:: 1 Jul 2005
Former MOE Rule:: FXAX; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC40)
Effective Date:: 1 Jul 2005
Former MOE Rule:: MC01; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Jul 2005
Former MOE Rule:: N9CD
Supplementary Collaborators:: GTHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Spain (YB01)
Effective Date:: 1 Feb 1994

Canada (ZC01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 3010-00-312-0605

Part Number
Manufacturer
Status
SM-C-178484: 80063 - Us Army Communications & Electronics (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
505-1766-002: 13499 - Rockwell Collins, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
505-1766-002: 95105 - Rockwell Collins, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6

Datasheet 3010-00-312-0605

Characteristic
Specifications
FIIG: A52200
Material [MATT]: Steel Corrosion Resisting

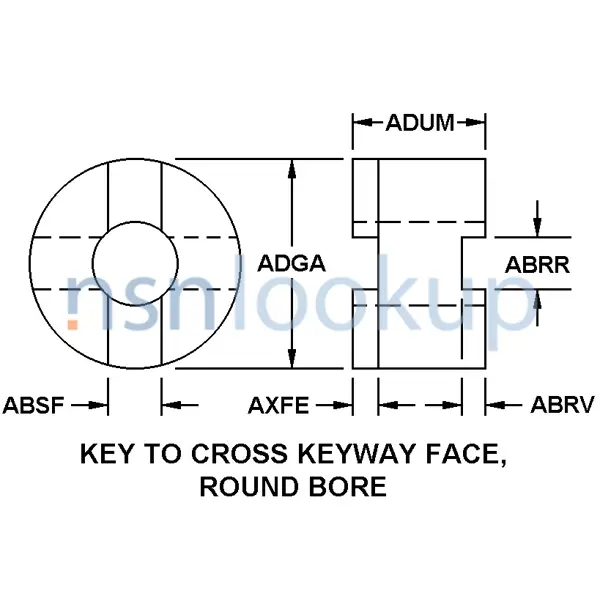

Style Designator [STYL]: Key To Cross Keyway Face, Round Bore
Keyway Width [ABRR]: 0.156 Inches Nominal
Keyway Depth [ABRV]: 0.072 Inches Nominal
Key Width [ABSF]: 0.156 Inches Nominal
Overall Outside Diameter [ADGA]: 0.875 Inches Nominal
Overall Thickness [ADUM]: 0.140 Inches Nominal
Key Height [AXFE]: 0.072 Inches Nominal
Special Features [FEAT]: Laminated Construction Feature-Not Incl.;Bore Dia 0.437 In.
End Item Identification [AGAV]: An/Frt-96 5820-01-237-3800

Subscribe
View Data

DLA Procurement Analysis 3010-00-312-0605

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 3010-00-312-0605

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Mar 2023: Department of the Navy (DN); EA; Subscribe; 1
Oct 2022: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2021: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5815-00-395-9064
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5820-00-395-9064
US Marine Corps (DM): M; X; Formerly 5821
Department of the Navy (DN): N; X; Formerly 5821
Defense Logistics Agency (DS): I; X; Formerly 5821

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 3010-00-312-0605

3010-14-216-5517 3010-66-147-3028 3010-12-195-0360 3010-99-100-5580 3010-14-559-7526 3010-12-187-3452 3010-14-331-3113 3010-99-835-9182 3010-14-535-8801 3010-14-505-2342 3010-99-413-1560 3010-12-390-2309 3010-21-902-1358 3010-12-195-8525 5845-14-385-0852 3010-12-194-4109 3010-12-378-6472 3010-14-382-1447

Freight Information 3010-00-312-0605

3010-00-312-0605 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 132330. A Sub NMFC of X. It has a NMFC Description of TRANSMISSIONS/CLUTCHES/PARTS,NOI. 3010-00-312-0605 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64340 which rates the freight between FCL and LCL. 3010-00-312-0605 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3010-00-312-0605 is not classified as a special type of cargo when transported by water. 3010-00-312-0605 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 3010-00-312-0605

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 0.9" H x 0.2" W x 0.9" L; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Contracting Technical Data File (CTDF) 3010-00-312-0605 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
