2940-01-288-8431

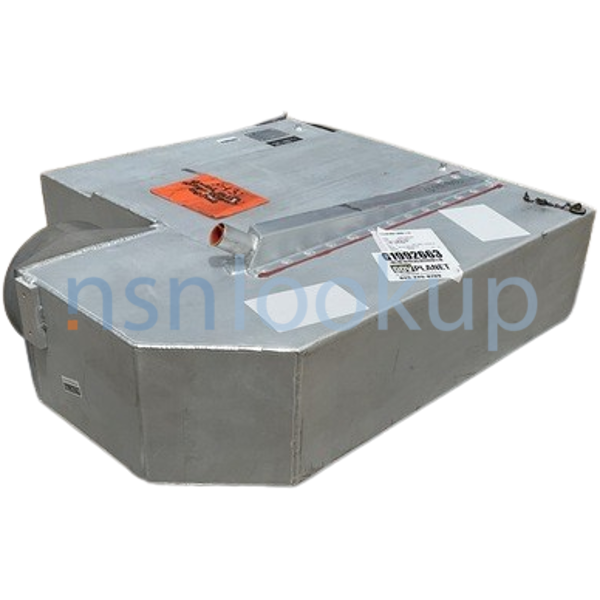

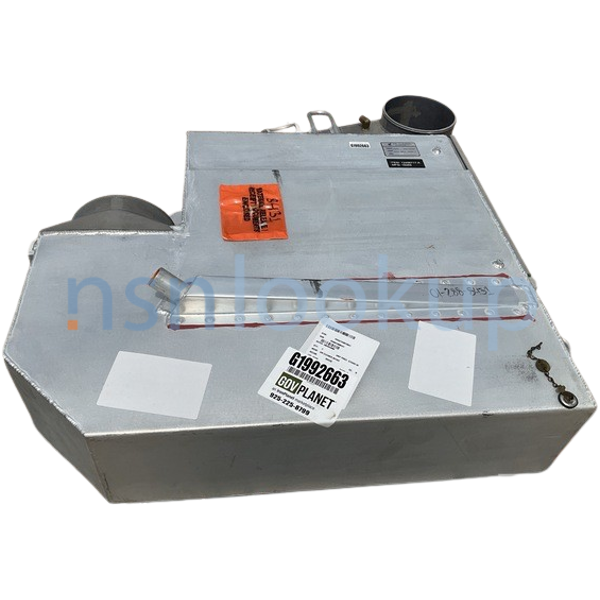

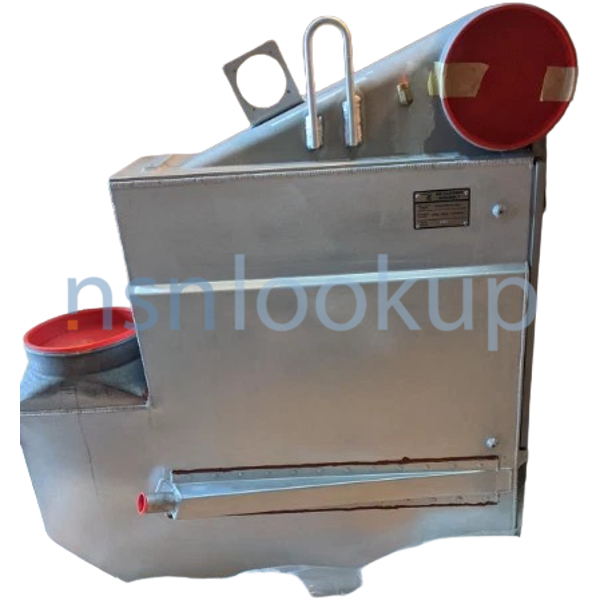

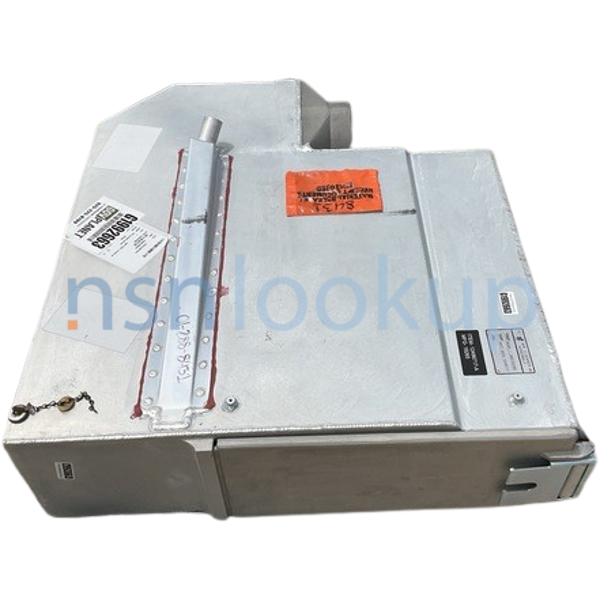

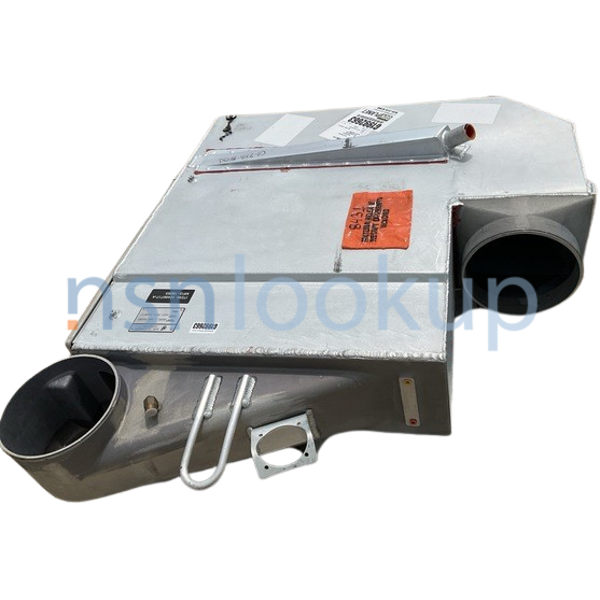

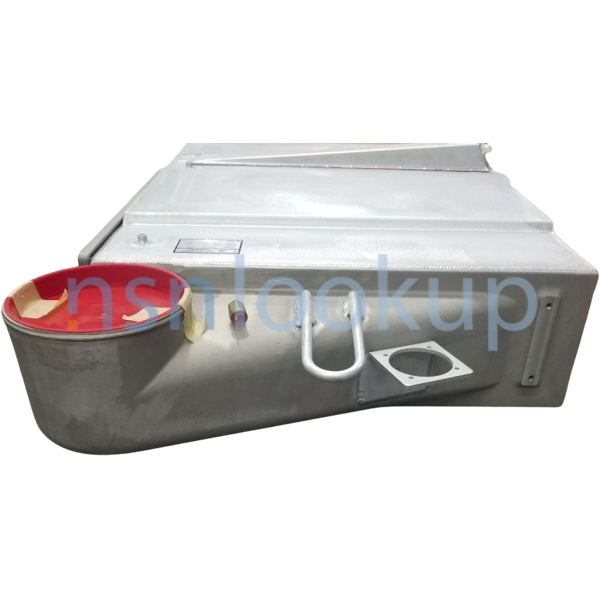

Intake Air Cleaner
2940012888431 012888431 12358962 G160585 12496717 SMG16-0585 G16-0620 SMG16-0620
A device designed to prevent foreign particles from entering the air intake system of an internal combustion engine or air compressor. Excludes mufflers. View more Intake Air Cleaner
Managed by United States
NSN Created on 17 Nov 1988
Data Last Changed
August 2025
August 2025
NATO Update Count
10
10
NATO Data Quality
Marketplace 2940-01-288-8431
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
FedMall
Updated Every 15 Minutes
Updated Every 15 Minutes 2940-01-288-8431 BUY NE FedMall
G160585 RQST NE
SMG16-0585 RQST NE
G16-0620 RQST NE
SMG16-0620 RQST NE
Updated Every Day 2940-01-288-8431 RQST NE
Updated Every Day 2940-01-288-8431 RQST
Updated Every Day 2940-01-288-8431 RQST NE
Related Documents 2940-01-288-8431 5+ Documents (More...)
12358962 G160585 12496717 SMG16-0585 G16-0620 SMG16-0620 A device designed to prevent foreign particles
G16-0620 AIR CLEANER 4 EA NS Request Quotation SMG16-0585 AIR CLEANER 23 EA NS Request Quotation Subscribe
BUY NE FedMall Updated Every Day G160585 RQST NE Updated Every Day SMG16-0585 RQST NE Updated Every
G16-0620 AIR CLEANER 4 EA NS Request Quotation SMG16-0585 AIR CLEANER 23 EA NS Request Quotation Subscribe
BUY NE FedMall Updated Every Day G160585 RQST NE Updated Every Day SMG16-0585 RQST NE Updated Every
RQST NE Updated Every Day https https//www.nsnlookup.com /fsg-29/fsc-2940/us 2940-01-288-8431 Intake
Air Cleaner 2940012888431 012888431 -0585 G16-0620 SMG16-0620 A device designed to prevent foreign particles
2940012888431012888431 Account Upgrade 2940-01-288 Rod End Plain Bearing 3120142501570142501570 Every Day SMG16-0620
Air Cleaner 2940012888431 012888431 -0585 G16-0620 SMG16-0620 A device designed to prevent foreign particles
2940012888431012888431 Account Upgrade 2940-01-288 Rod End Plain Bearing 3120142501570142501570 Every Day SMG16-0620
Upgrade for $1 a day Upgrade your Account Upgrade 6250-01-234-5994Lampholder6250012345994 012345994 G160585
) https//www.nsnlookup.com /fsg-62/fsc-6250/us 6250-01-234-5994 Lampholder 6250012345994012345994,G160585
) https//www.nsnlookup.com /fsg-62/fsc-6250/us 6250-01-234-5994 Lampholder 6250012345994012345994,G160585
) https//www.nsnlookup.com /fsg-62/fsc-6250/us 6250-01-234-5994 Lampholder 6250012345994012345994,G160585
) https//www.nsnlookup.com /fsg-62/fsc-6250/us 6250-01-234-5994 Lampholder 6250012345994012345994,G160585
| ADPEC : 9999-14-501-0804 is a Intake Air Cleaner Similar Supply Items to 9999-14-501-0804 2940-01-288-8431
Day 3120-14-532-7091 RQST NE Restrictions https https//www.nsnlookup.com /fsg-29/fsc-2940/us 2940-01-288-8431
Intake Air Cleaner 2940012888431 012888431 electrically and mechanically accommodate a lamp https
Intake Air Cleaner 2940012888431 012888431 electrically and mechanically accommodate a lamp https
Restrictions 2940-01-288-8431
2940-01-288-8431 is a Intake Air Cleaner that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2940-01-288-8431
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2940-01-288-8431
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
Approved Sources 2940-01-288-8431
- Part Number
- Manufacturer
- Status
- 12358962
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- G160585
- 18265 - Donaldson Company, Inc. (Active)
- Primary Buy
- Primary Buy
- 12496717
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- SMG16-0585
- 18265 - Donaldson Company, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- G16-0620
- 18265 - Donaldson Company, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SMG16-0620
- 18265 - Donaldson Company, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2940-01-288-8431
- Characteristic
- Specifications
- FIIG
- Specifications
- T135-D
- Element Type [ARZF]
- Free Flow
- End Item Identification [AGAV]
- 2350-01-248-7619
- Backfire Valve [ARYF]
- Not Included
- Filter Type [ALTR]
- Dry
- Mounting Outside Diameter [ADHZ]
- 10.500 Inches Nominal
- Outlet Sleeve Type [ARZP]
- Protruding
- Outlet Type [ARZG]
- Sleeve
- Outlet Location [ARTJ]
- Side Of Cleaner
- Inlet Type [ARYG]
- Open
- Integral Clamp [ARZR]
- Not Included
- Pressure Relief Valve [ARYE]
- Not Included
- Remote Location Inlet Adapter [ARZW]
- Not Included
- Overall Height [ABKW]
- 37.870 Inches Nominal
- Overall Length [ABHP]
- 38.000 Inches Nominal
- Width [ABGL]
- 9.870 Inches Nominal
- Submersibility [AHZV]
- Nonsubmersible
Weapon Systems (WSDC) 2940-01-288-8431
DLA Procurement Analysis 2940-01-288-8431
Management Data 2940-01-288-8431
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 3
- Insurance Items
This code will identify items for which there may be occasional intermittent demands not sufficiently repetitive to warrant classification as regular stock items, but for which prudence requires that nominal quantity be stocked for the reason that the essentiality of the item and the long lead time required to obtain such items by purchase would create an unacceptable situation if no stock were carried.
- Weapons System / End Item / Homogeneous Group:
- MM
- Armored Carriers
Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavalry Fighting Vehicle (M3, M3A1, M3A2)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 2940-01-288-8431
Freight Information 2940-01-288-8431
2940-01-288-8431 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 069100. A Sub NMFC of Z. It has a NMFC Description of FILTERS:CARTRIDGES/ELEMENTS. 2940-01-288-8431 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 21275 which rates the freight between FCL and LCL. 2940-01-288-8431 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 2940-01-288-8431 is not classified as a special type of cargo when transported by water. 2940-01-288-8431 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2940-01-288-8431
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Vendor's Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 2940-01-288-8431 8 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7L323P3269
- 16 Feb 2023
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7L322P5164
- 12 May 2022
- Subscribe
- 14
- Subscribe
- Subscribe
- Subscribe
- SPE7L319P1481
- 26 Nov 2018
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7L319P1205P00001
- 13 Nov 2018
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7L316M6214
- 10 Jun 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L316M5482
- 12 May 2016
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D001188W6
- 22 Sep 2015
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPE7L114D0002678C
- 10 Aug 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 2940-01-288-8431 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
