2930-01-591-9704
Radiator Fan Shroud
2930015919704 015919704 1E006167 24KP958
An item designed to be bolted to the radiator core to disperse direct air circulation to pass over the engine, may provide a guard for the fan blades. May include bolts and the like. View more Radiator Fan Shroud
October 2024
3
Product Information 2930-01-591-9704

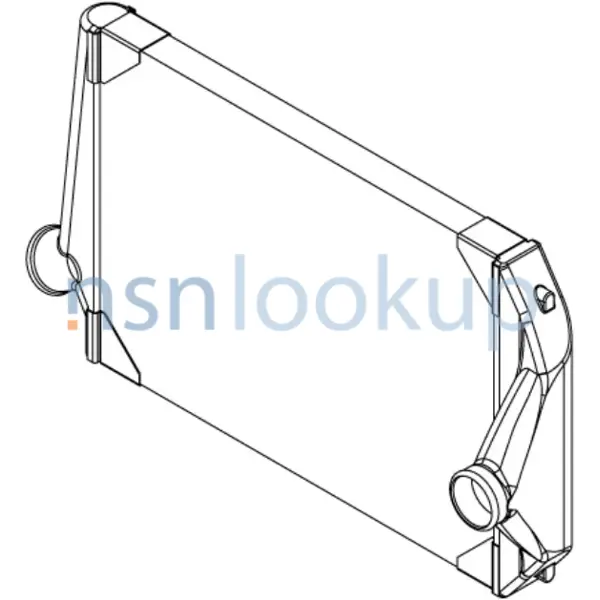

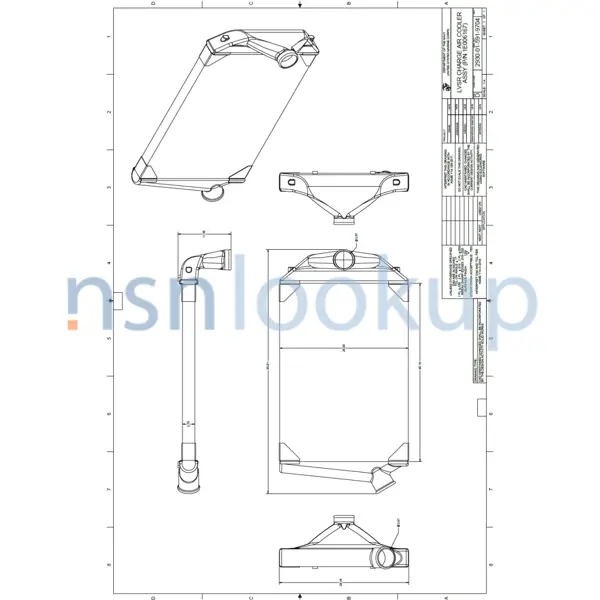

Charge Air Cooler (CAC), LVSR
Core Measurements:
- Type = Welded-on headers (plug weld at junction of header and core body)
- Tubes sealed to headers with synthetic sealing rings
- Flow = Crossflow
- Tube Rows = 1-row
- Tube Qty per Row = 34
- Tube shape = slotted (3/8 in width x 2-3/4 in length) - nominal dimensions
- Height of core = 29 in
- Width of core = 40 in
- Depth of core = 2-3/4 in
- Overall Height of CAC= 29-1/4 in
- Overall Width of CAC = 56-1/2 in
- Overall Depth of CAC = 4-1/4 in (to outlet fittings)
- Version 1.4 23 July 2024
- Inlet Pipe nominal ID: 4 inches
- Outlet Pipe nominal ID: 4 inches
- Center-to-Center distance between inlet and Outlet Pipes: 54.3 inches
- Number of fins per inch (FPI) = 14 fpi
- Fin type = Automotive
- Material of fins = aluminum
Marketplace 2930-01-591-9704
Request a Quotation from participating marketplace vendors
Related Documents 2930-01-591-9704 5+ Documents (More...)
Photo 1/2 2930-01-591-9704 Photo 2/2 - - 1.
United States (US) 4. 2930-01-591-9704 Marketplace Restrictions Approved Sources Datasheet Management
Radiator Fan Shroud 2930015919704 015919704 | RNVC: 2 | DAC: 3 16 Feb 2011 2930-01-591-9704 https
/www.nsnlookup.com /fsg-29 Engine Cooling System Components, Nonaircraft (FSC 2930) Feb 2011 2930-01-591-9704
Restrictions 2930-01-591-9704
2930-01-591-9704 is a Radiator Fan Shroud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2930-01-591-9704
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2930-01-591-9704
- US Marine Corps (MC40)
- Effective Date:
- 1 Feb 2011
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 2930-01-591-9704
- Part Number
- Manufacturer
- Status
- 1E006167
- Manufacturer
- 3FQN6 - Modine Manufacturing Co (Active)
- Primary Buy
- Primary Buy
- 24KP958
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 24KP958
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2930-01-591-9704
- Characteristic
- Specifications
- FIIG
- Specifications
- A515K0
- Part Name Assigned By Controlling Agency [CXCY]
- Cooling Module Assembly
Weapon Systems (WSDC) 2930-01-591-9704
DLA Procurement Analysis 2930-01-591-9704
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2930-01-591-9704
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 2930-01-591-9704
Freight Information 2930-01-591-9704
2930-01-591-9704 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 120975. A Sub NMFC of X. It has a NMFC Description of FAN/FAN BLADE ASSEMBLIES STEEL. 2930-01-591-9704 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58952 which rates the freight between FCL and LCL. 2930-01-591-9704 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2930-01-591-9704 is not classified as a special type of cargo when transported by water. 2930-01-591-9704 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
