2930-01-188-3682

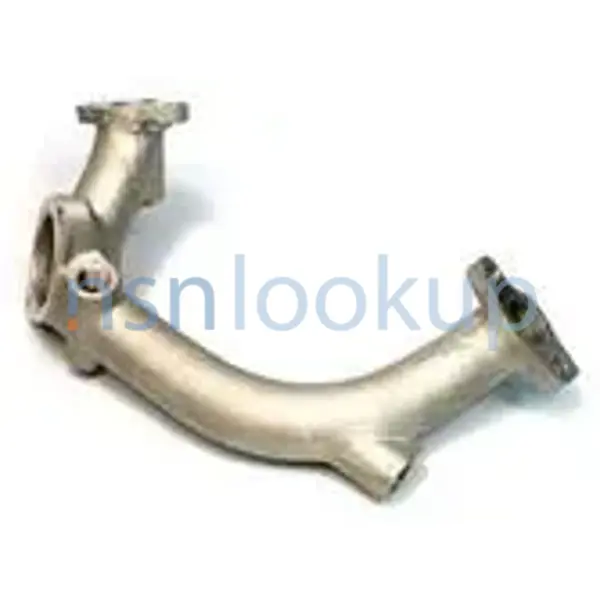

Engine Water Outlet
2930011883682 011883682 23500012 5740077
An item designed to allow the flow of coolant out of the block to the radiator. May be lip and/or bolt flange. View more Engine Water Outlet
November 2023
17
Marketplace 2930-01-188-3682
Request a Quotation from participating marketplace vendors
Related Documents 2930-01-188-3682 3+ Documents (More...)
United States (US) 4. 2930-01-188-3682 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 2930-01-188-3682 RQST NE Updated Every Day 2930-01-188-3682 RQST Updated Every
Updated Every Day 5977-01-204-8723 RQST Updated https//www.nsnlookup.com /fsg-29/fsc-2930/us 2930-01-188-3682
Engine Water Outlet 2930011883682 011883682 Updated Every Day 2930-01-188-3682 RQST Updated Every
/www.nsnlookup.com /fsg-59/fsc-5977/us 5977-01-204-8722 Electrical Contact Brush Holder Assembly 23500012
Documents 5977-01-204-8722 2+ Documents ( More... https//www.nsnlookup.com /fsg-29/fsc-2930/us 2930-01-188-3682
Restrictions 2930-01-188-3682
2930-01-188-3682 is a Engine Water Outlet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2930-01-188-3682
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2930-01-188-3682
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AJCLBDAZ
- US Air Force (FUGC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FUAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 Jun 2011
- Denmark (ZS01)
- Effective Date:
- 1 Jan 1997
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 2930-01-188-3682
- Part Number
- Manufacturer
- Status
- 23500012
- Manufacturer
- 7X677 - General Motors Llc (Active)
- Primary Buy
- Primary Buy
- 5740077
- 34623 - Am General Llc (Active)
- Secondary Buy
- Secondary Buy
- 23500012
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 23500012
- 11862 - General Motors Corp Chevrolet Motor (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 2930011883682
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2930-01-188-3682
- Characteristic
- Specifications
- FIIG
- Specifications
- A520H0
- Material [MATT]
- Aluminum
- Special Features [FEAT]
- Prebent Tube,1.250 In. Id,Flange End W/2 Mtg Holes 0.417 In. Dia And 2 Holes 0.433 In. Dia,11.260 In. Lg
- End Item Identification [AGAV]
- 2320-01-107-7153
Weapon Systems (WSDC) 2930-01-188-3682
DLA Procurement Analysis 2930-01-188-3682
- Last Stock Position:
- 23 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2930-01-188-3682
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 2930-01-188-3682
Freight Information 2930-01-188-3682
2930-01-188-3682 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 2930-01-188-3682 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 2930-01-188-3682 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2930-01-188-3682 is not classified as a special type of cargo when transported by water. 2930-01-188-3682 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2930-01-188-3682
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 2930-01-188-3682 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
