2930-01-090-4932

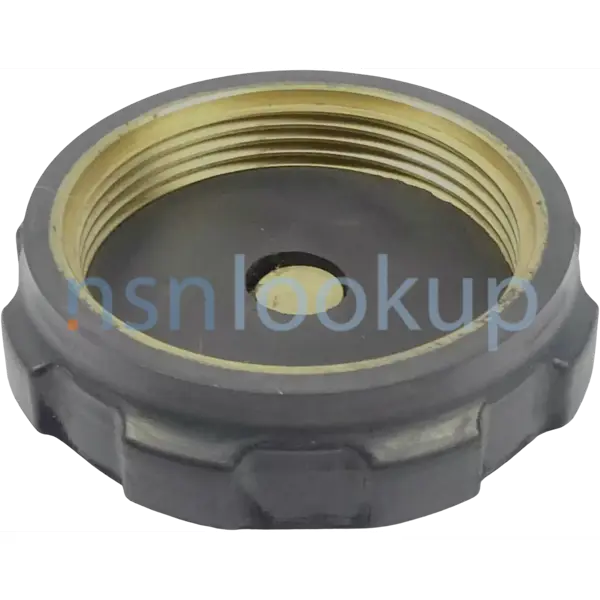

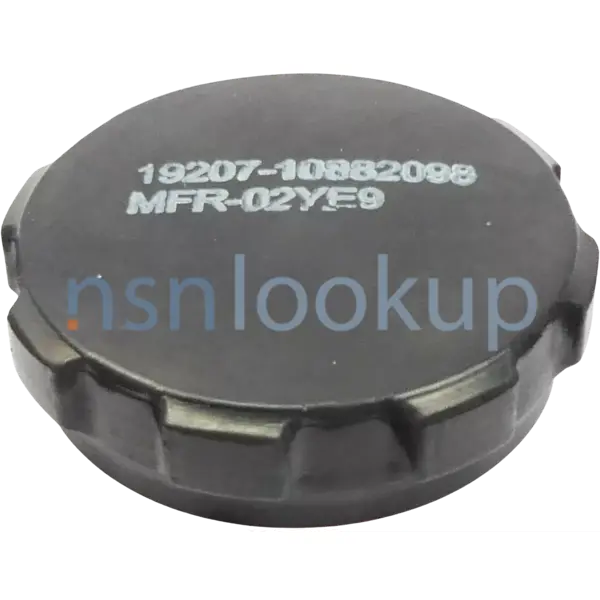

Filler Opening Cap
2930010904932 010904932 10882098
A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified). View more Filler Opening Cap
March 2025
33
Marketplace 2930-01-090-4932
Request a Quotation from participating marketplace vendors
Related Documents 2930-01-090-4932 5+ Documents (More...)
Request Quotation Updated Every Day 2930-01-090-4932 RQST NE Updated Every Day 2930-01-090-4932 RQST
Updated Every Day 2930-01-090-4932 RQST NE Related Documents 2930-01-090-4932 2+ Documents ( More...
Restrictions 2930-01-090-4932
2930-01-090-4932 is a Filler Opening Cap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2930-01-090-4932
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2930-01-090-4932
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBF
- US Air Force (FUGC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FUAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 10 Nov 2010
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 2930-01-090-4932
- Part Number
- Manufacturer
- Status
- 10882098
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 2930-01-090-4932
- Characteristic
- Specifications
- FIIG
- Specifications
- A083A0
- Material [MATT]
- Rubber Natural Body
- Material [MATT]
- Copper Alloy Threaded Portion
- Style Designator [STYL]
- Threaded Type-Internal
- Outside Diameter [ABKV]
- 3.375 Inches Nominal
- Overall Height [ABKW]
- 1.000 Inches Nominal
- System For Which Designed [AGEJ]
- Nonpressurized
- Thread Series Designator [THSD]
- Uns
- Thread Diameter [AWDP]
- 2.5000 Inches Nominal
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 0.531 Inches Nominal
- Gripping Accommodation Type [ABEZ]
- Lugs
Weapon Systems (WSDC) 2930-01-090-4932
DLA Procurement Analysis 2930-01-090-4932
- Last Stock Position:
- 578 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2930-01-090-4932
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 2930-01-090-4932
Freight Information 2930-01-090-4932
2930-01-090-4932 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 116430. A Sub NMFC of Z. It has a NMFC Description of CAPS,ENGINE RADIATOR. 2930-01-090-4932 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 20415 which rates the freight between FCL and LCL. 2930-01-090-4932 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2930-01-090-4932 is not classified as a special type of cargo when transported by water. 2930-01-090-4932 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2930-01-090-4932
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- --
- Type I, shelf life
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Vendor's Fiberboard Box
Contracting Technical Data File (CTDF) 2930-01-090-4932 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
