2925-01-507-3527
Engine Accessory Generator
2925015073527 015073527 ECP3-2L/2-SG36ECP32L0012B34S EC03-2L/2-SG36ECO32L0012B34S EC03-2L/C-SG36ECO32L0012B34S 7010418
A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT. View more Engine Accessory Generator
August 2023
5
Marketplace 2925-01-507-3527
Request a Quotation from participating marketplace vendors
Related Documents 2925-01-507-3527 1+ Documents (More...)
(Identification) 1/2 NSN 2925-01-507-3527 (Identification) 2/2 - - 1.
United States (US) 4. 2925-01-507-3527 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 2925-01-507-3527
2925-01-507-3527 is a Engine Accessory Generator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2925-01-507-3527
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2925-01-507-3527
- US Marine Corps (MC41)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 2925-01-507-3527
- Part Number
- Manufacturer
- Status
- EC03-2L/2-SG36ECO32L0012B34S
- Manufacturer
- 3CS03 - Magil Corporation (Active)
- Original Design
- Original Design
- ECP3-2L/2-SG36ECP32L0012B34S
- A4626 - Mecc Alte Spa (Active)
- Secondary Buy
- Secondary Buy
- EC03-2L/C-SG36ECO32L0012B34S
- 3CS03 - Magil Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7010418
- 0MLM6 - Marine Corps Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 2925-01-507-3527
- Characteristic
- Specifications
- FIIG
- Specifications
- A14700

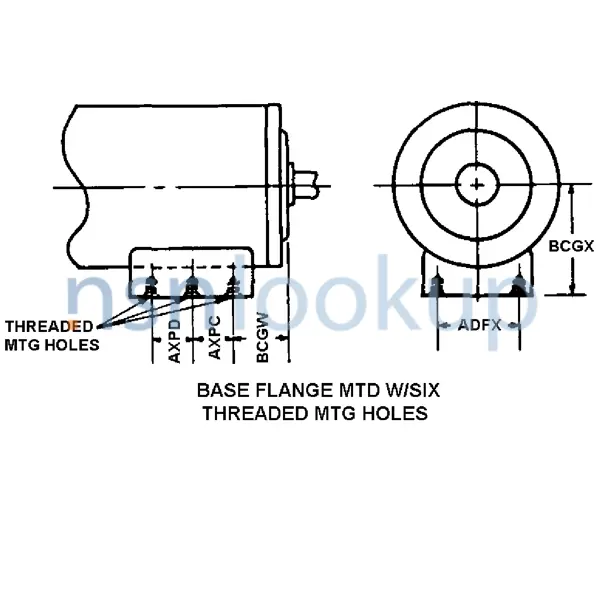

- Mounting Style [ADER]
- Base Flange Mtd W/Six Threaded Mtg Holes
- Center To Center Distance Between Mounting Holes Along Width [ADFX]
- 8.661 Inches Nominal
- Center To Center Distance Between First And Second Mounting Holes [AXPC]
- 14.606 Inches Nominal
- Center To Center Distance Between Second And Third Mounting Holes [AXPD]
- 16.575 Inches Nominal
- Distance From Raised Face To First Mounting Hole Center [BCGW]
- 1.890 Inches Nominal
- Distance From Shaft Centerline To Mounting Flange Surface [BCGX]
- 5.197 Inches Nominal
- Shaft Drive End Style [BCGS]
- Straight Shaft End W/Keyway
- Unthreaded Portion Length [ABVA]
- 2.283 Inches Nominal
- Largest Diameter [AGQA]
- 1.378 Inches Nominal
Weapon Systems (WSDC) 2925-01-507-3527
DLA Procurement Analysis 2925-01-507-3527
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2925-01-507-3527
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jun 2023
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Sep 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 2925-01-507-3527
Freight Information 2925-01-507-3527
2925-01-507-3527 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of Z. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI. 2925-01-507-3527 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 2925-01-507-3527 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 590 for ocean manifesting and military sealift. 2925-01-507-3527 is not classified as a special type of cargo when transported by water. 2925-01-507-3527 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2925-01-507-3527
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Delicate instrument
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 2925-01-507-3527 7 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A723P8455
- 30 Mar 2023
- Subscribe
- 16
- Subscribe
- Subscribe
- Subscribe
- SPE4A723P7817
- 17 Mar 2023
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE4A722PD755
- 29 Jul 2022
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE4A418V3154
- 10 Jan 2018
- Subscribe
- 12
- Subscribe
- Subscribe
- Subscribe
- SPE4A717V0275
- 16 Nov 2016
- Subscribe
- 9
- Subscribe
- Subscribe
- Subscribe
- SPE4A715M7053
- 13 May 2015
- Subscribe
- 12
- Subscribe
- Subscribe
- Subscribe
- SPE4A413V8918P00002
- 12 Apr 2013
- Subscribe
- 14
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 2925-01-507-3527 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
