2920-01-444-4994
Ignition Coil
2920014444994 014444994 UC16
An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines. View more Ignition Coil
May 2023
1
Marketplace 2920-01-444-4994
Request a Quotation from participating marketplace vendors
Related Documents 2920-01-444-4994 5+ Documents (More...)
Updated Every Day 2920-01-444-4994 RQST NE Related Documents 2920-01-444-4994 5+ Documents ( More...
,UC16 BUY NE FedMall Updated Every Day 2920-01-444-4994 RQST NE Updated Every Day 2920-01-444-4994 RQST
Ignition Coil 2920014444994 014444994,UC16 Dial Indicating Pressure Gage 6685144577979 6685-14-
,UC16 Cleaning Plug4940016314666 213 https//www.nsnlookup.com /fsg-53/fsc-5340/ca 5340-21-891-6375 Loop
Condenser Tube Cleaning Plug 4940226127273 631-4666 https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920-01-444-4994
Ignition Coil 2920014444994 014444994,UC16 Ignition Coil 2920014444994014444994,UC16 Cleaning Plug4940016314666
6685-14-457-7979Dial Indicating Pressure Gage6685144577979 144577979 213-53D63M0P100BAR-RAC-BAS-G1/4B UC16
https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920-01-444-4994 Ignition Coil 2920014444994 014444994,
Restrictions 2920-01-444-4994
2920-01-444-4994 is a Ignition Coil that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2920-01-444-4994
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-01-444-4994
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 2920-01-444-4994
- Part Number
- Manufacturer
- Status
- UC16
- Manufacturer
- 04YQ9 - Conway Auto Parts Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 2920-01-444-4994
- Characteristic
- Specifications
- FIIG
- Specifications
- T130-D

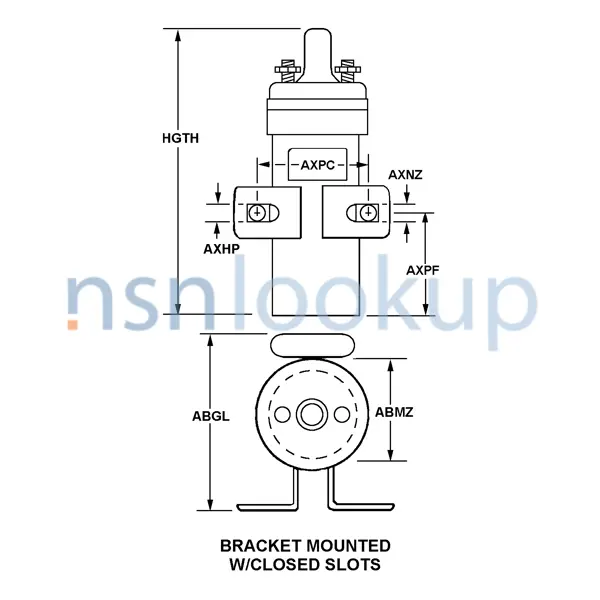

- Style Designator [STYL]
- Bracket Mounted W/Closed Slots
- Dc Primary Voltage Rating [ARLX]
- 12.0 Volts Nominal
- High Voltage Terminal Type [ARLY]
- Friction
- High Voltage Terminal Quantity [ARLZ]
- 1
- Low Voltage Terminal Type [ARMA]
- Threaded Stud
- Low Voltage Terminal Quantity [ARMB]
- 2
- Ground Terminal [ARNY]
- Not Provided
- Inclosure Material Type [AKPZ]
- Metallic
- Vibrator Adjustability [ARNZ]
- Nonadjustable
- Filling Medium [ARPA]
- Compound
- Submersibility [AHZV]
- Nonsubmersible
- Mounting Removability [ARPC]
- Nonremovable
- Special Features [FEAT]
- For Chrysler 1979 Thru 1990
DLA Procurement Analysis 2920-01-444-4994
Management Data 2920-01-444-4994
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2920-01-444-4994
Freight Information 2920-01-444-4994
2920-01-444-4994 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063120. A Sub NMFC of X. It has a NMFC Description of SPARK COILS IN BOXES/PKGS 1241/1273. 2920-01-444-4994 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35190 which rates the freight between FCL and LCL. 2920-01-444-4994 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2920-01-444-4994 is not classified as a special type of cargo when transported by water. 2920-01-444-4994 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2920-01-444-4994
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Vendor's Setup or Folding Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 2920-01-444-4994 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
