2920-01-131-4931
Engine Accessory Generator
2920011314931 011314931 A0014630JA 4630JA 1309050
A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT. View more Engine Accessory Generator
September 2023
11
Product Information 2920-01-131-4931
24V 65 Amp Generator for HEMTT M977 8X8 TRUCK
Marketplace 2920-01-131-4931
Request a Quotation from participating marketplace vendors
Related Documents 2920-01-131-4931 3+ Documents (More...)

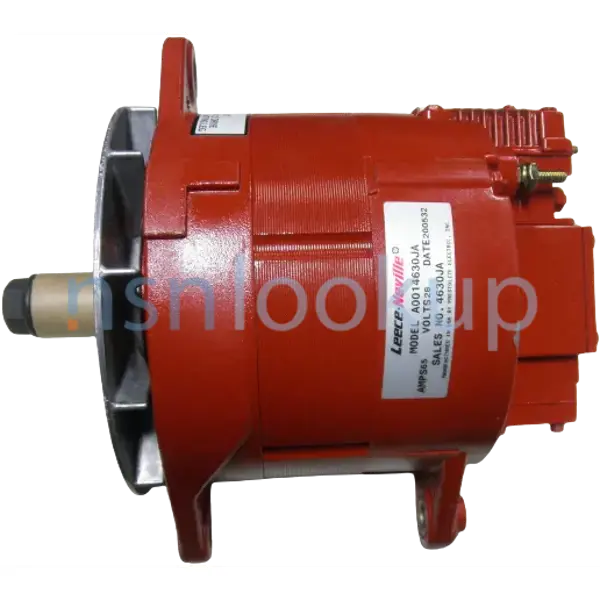

Photo 1/2 NSN 2920-01-131-4931 (Identification) 2/2 - - 1.
A0014630JA GENERATOR 5 EA NS Request Quotation Subscribe to View Vendor Details...
Engine Accessory Generator 2920011314931 Request Quotation Subscribe to View Vendor Details...
4931AAADefense Logistics Agency (DS)IDod I&S Family Master Nsn - - -AABUS Coast Guard (GP)CGReplaces 2920-01-131-4931
Restrictions 2920-01-131-4931
IUID Required
2920-01-131-4931 is a Engine Accessory Generator The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2920-01-131-4931
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-01-131-4931
- US Army (A204)
- Effective Date:
- 1 Jan 2004
- Former MOE Rule:
- A181
- Supplementary Receivers:
- BDCT
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1999
- Greece (ZU01)
- Effective Date:
- 1 May 2006
Approved Sources 2920-01-131-4931
- Part Number
- Manufacturer
- Status
- A0014630JA
- Manufacturer
- 24975 - Prestolite Electric Inc (Active)
- Primary Buy
- Primary Buy
- 1309050
- 75Q65 - Oshkosh Defense Llc (Active)
- Primary Buy
- Primary Buy
- 4630JA
- 24975 - Prestolite Electric Inc (Active)
- Primary Buy
- Primary Buy
- 4630JA
- 35510 - Prestolite Electric Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1309050
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A0014630JA
- 35510 - Prestolite Electric Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2920-01-131-4931
- Characteristic
- Specifications
- FIIG
- Specifications
- A14700
- Voltage In Volts [ELEC]
- 28.0
- Shaft Rotation Direction [AKCT]
- Clockwise
- Shaft Drive End Style [BCGS]
- Straight Shaft End, Threaded, W/Keyway
- Thread Length [AASA]
- 0.930 Inches Nominal
- Second Step Diameter [ABPT]
- 0.874 Inches Nominal
- Unthreaded Portion Length [ABVA]
- 1.330 Inches Nominal
- Thread Series [BZRR]
- Unf
- Thread Diameter [AWDP]
- 0.620 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 18
- Thread Class [CFHL]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Special Features [FEAT]
- Mounting Hole For .50 Dia Mtg Bolt 2-Places; 60 Amps; Key Shipped Extra
- Terminal Type [AARB]
- Connector, Receptacle
- Terminal Quantity [AARA]
- 3
- Reference Data And Literature [RDAL]
- Otc Drwg 1301040 For Additional Tech Requirements
DLA Procurement Analysis 2920-01-131-4931
Management Data 2920-01-131-4931
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- E
- Replaced By 2920-01-482-8799
- E
- Defense Logistics Agency (DS)
- I
- E
- Replaced By 2920-01-482-8799
- E
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- NR
- Tactical Vehicles
Heavy Expanded Mobility Tactical Trucks (HEMTT), all body types (ABT) M977, M978, M983, M984, M984A1,M985
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Echelon Management:
- 26
- Operational Test:
- No Special Procedures
Similar Supply Items to 2920-01-131-4931
Freight Information 2920-01-131-4931
2920-01-131-4931 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of D. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI SUB4. 2920-01-131-4931 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 2920-01-131-4931 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 590 for ocean manifesting and military sealift. 2920-01-131-4931 is not classified as a special type of cargo when transported by water. 2920-01-131-4931 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2920-01-131-4931
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 27.2" H x 17.5" W x 15.2" L
- --
- --
- --
- Special Requirements
- 27.2" H x 17.5" W x 15.2" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 2920-01-131-4931 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
