2920-01-069-6997
Electrical Engine Starter
2920010696997 010696997 A-A-59294 7260M M0017260MD MS53011-1A AA59294-1 A-A-59294-1 M0017260MA
An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL. View more Electrical Engine Starter
March 2025
47
Product Information 2920-01-069-6997

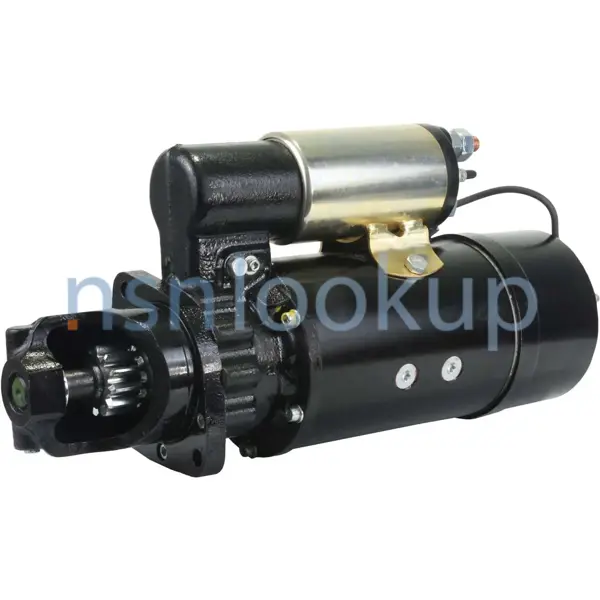

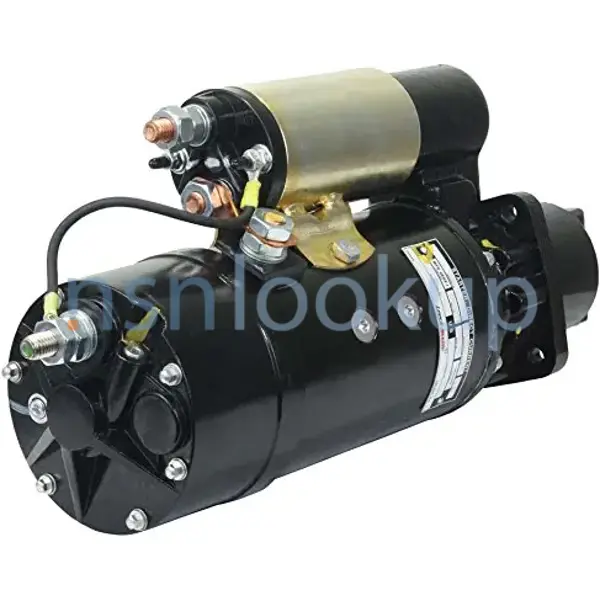

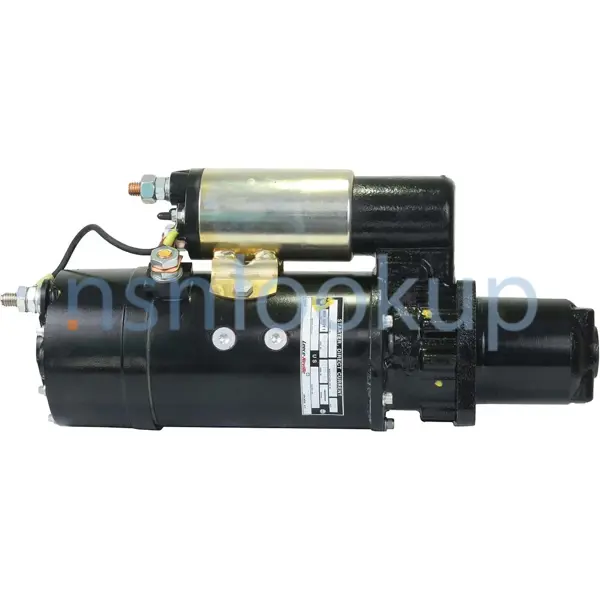

Starter Motor
- Type: Direct-Drive
- Voltage: 24V
- Rotation: Clockwise (CW)
- Teeth: 12
- Gear OD: 1.823In / 46.3mm
- Mounting Holes: 10.7mm Unthreaded
- Specifications: Rotatable Housing
- Weight: 64 lbs.
Used on M109 Self-Propelled Howitzer (SPH) and M992 FAASV:
- M109A1
- M109A2
- M109A3
- M109A4
- M109A5
- M992A1
- M992A2
Marketplace 2920-01-069-6997
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 2920-01-069-6997 2+ Documents (More...)
M0017260MA STARTER,ENGINE,ELECTRICAL 1 EA NS Request Quotation 7260M STARTER,ENGINE,ELECTRICAL 3 EA NS
A-A-59294-1 STARTER 1 EA AR Request Quotation Subscribe to View Vendor Details...
-1 STARTER 1 EA NS Request Quotation A-A-59294-1 STARTER, ENGINE, ELECTRIC 5 EA NS Request Quotation
EA NS Request Quotation A-A-59294-1 STARTER,ENGINE,ELECTRICAL 5 EA NS Request Quotation Subscribe to
Restrictions 2920-01-069-6997
IUID Required
2920-01-069-6997 is a Electrical Engine Starter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2920-01-069-6997
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-01-069-6997
- US Army (A204)
- Effective Date:
- 1 Dec 1997
- Supplementary Receivers:
- ANBD
- US Air Force (FUAZ)
- Effective Date:
- 1 Feb 2001
- US Marine Corps (MA5G)
- Effective Date:
- 1 Dec 1997
- US Navy (N9A5)
- Effective Date:
- 1 Dec 1997
- Supplementary Collaborators:
- GTKE
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP)
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Jan 1996
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK)
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 2010
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS)
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
- NATO Maintenance and Supply Agency (ZX)
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Oct 1999
- United States of America (ZZ)
Approved Sources 2920-01-069-6997
- Part Number
- Manufacturer
- Status
- AA59294-1
- Manufacturer
- 58536 - Federal Commercial Item Description (Active)
- Definitive Standard
- Definitive Standard
- A-A-59294-1
- 58536 - Federal Commercial Item Description (Active)
- Definitive Standard
- Definitive Standard
- A-A-59294
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- 7260M
- 24975 - Prestolite Electric Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- M0017260MD
- 24975 - Prestolite Electric Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS53011-1A
- 96906 - Military Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 7260M
- 35510 - Prestolite Electric Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- M0017260MA
- 24975 - Prestolite Electric Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- M0017260MA
- 35510 - Prestolite Electric Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2920010696997
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2920-01-069-6997
- Characteristic
- Specifications
- FIIG
- Specifications
- A23400
- Voltage In Volts [ELEC]
- 24.0
Weapon Systems (WSDC) 2920-01-069-6997
DLA Procurement Analysis 2920-01-069-6997
- Last Stock Position:
- 410 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2920-01-069-6997
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Feb 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Aug 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- May 2021
- Department of the Army (DA)
- EA
- Subscribe
- EA
- Feb 2021
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- KF
- Combat Vehicles
Howitzer, Full Tracked, Self- propelled 155mm M109
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - P
- Expendable. Reparable. Condemn at Intermediate. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- T
- Maintenance Float Secondary Non-depot Reparables
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2920-01-069-6997
Freight Information 2920-01-069-6997
2920-01-069-6997 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 130385. A Sub NMFC of X. It has a NMFC Description of STARTERS ELEC MTRS I/C ENG. 2920-01-069-6997 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 2920-01-069-6997 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2920-01-069-6997 is not classified as a special type of cargo when transported by water. 2920-01-069-6997 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Open Solicitations 2920-01-069-6997 1 Records
Contracting Technical Data File (CTDF) 2920-01-069-6997 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
