2920-01-047-9551
Engine Accessory Generator
2920010479551 010479551 4191013 N1301-1
A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT. View more Engine Accessory Generator
September 2023
13
Marketplace 2920-01-047-9551
Request a Quotation from participating marketplace vendors
Related Documents 2920-01-047-9551 5+ Documents (More...)

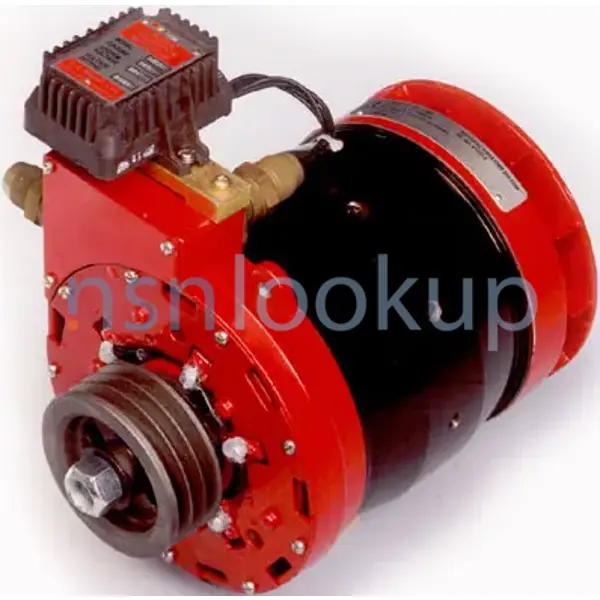

Photo 1/2 NSN 2920-01-047-9551 (Identification) 2/2 - - 1.
GENERATOR,ENGINE ACCESSORY RQST NS Request Quotation Subscribe to View Vendor Details... 4191013
/www.nsnlookup.com /fsg-61/fsc-6110/uk 6110-99-269-3115 Magnetic Contactor 6110992693115992693115 4191013
Engine Accessory Generator 2920010479551 //www.nsnlookup.com /fsg-61/fsc-6110/uk 6110-99-269-3115
enable JavaScript in your web browser . 6110-99-269-3115Magnetic Contactor6110992693115 992693115 4191013
https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920-01-047-9551 Engine Accessory Generator 2920010479551
Engine Accessory Generator 2920010479551 Upgrade your Account Upgrade 2920-01-047-9551Engine Accessory
Generator2920010479551 010479551 4191013 N1301 Terminal Board 5940006437613006437613,N1301 Active) Related
Engine Accessory Generator 2920010479551 Upgrade your Account Upgrade 2920-01-047-9551Engine Accessory
Generator2920010479551 010479551 4191013 N1301 Active) Related Standard RNCC 2 RNVC 1 DAC 3 N1301 https
Restrictions 2920-01-047-9551
2920-01-047-9551 is a Engine Accessory Generator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2920-01-047-9551
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-01-047-9551
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Sep 2009
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 2920-01-047-9551
- Part Number
- Manufacturer
- Status
- 4191013
- Manufacturer
- 80212 - Bae Systems Land & Armaments L.P. (Active)
- Primary Buy
- Primary Buy
- N1301-1
- 76761 - C E Niehoff & Co (Active)
- Secondary Buy
- Secondary Buy
- 2920010479551
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2920-01-047-9551
- Characteristic
- Specifications
- FIIG
- Specifications
- A14700
- Bottom Mounting Hole Diameter [BCMH]
- 0.440 Inches Minimum And 0.462 Inches Maximum
- Distance Between Inside Surfaces Of Hinge Bracket [BCMD]
- 6.125 Inches Nominal
- Distance Between Outside Surfaces Of Hinge Bracket [BCMF]
- 7.125 Inches Nominal
- Ground Polarity Type [AXHX]
- Negative
- Mounting Hole Thread Direction [ACJC]
- Left-Hand
- Mounting Hole Thread Class [CMLN]
- 2B
- Mounting Hole Thread Diameter [CMLL]
- 0.375 Inches Nominal
- Mounting Hole Thread Quantity Per Inch [CMLM]
- 16
- Mounting Hole Thread Series Designator [CMLK]
- Unc
- Mounting Style [ADER]
- Bracket Mtd W/Three Mtg Holes, Top Hole Threaded
Similar Supply Items to 2920-01-047-9551
Freight Information 2920-01-047-9551
2920-01-047-9551 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of Z. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI. 2920-01-047-9551 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2920-01-047-9551 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 590 for ocean manifesting and military sealift. 2920-01-047-9551 is not classified as a special type of cargo when transported by water. 2920-01-047-9551 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
