2920-01-031-9027

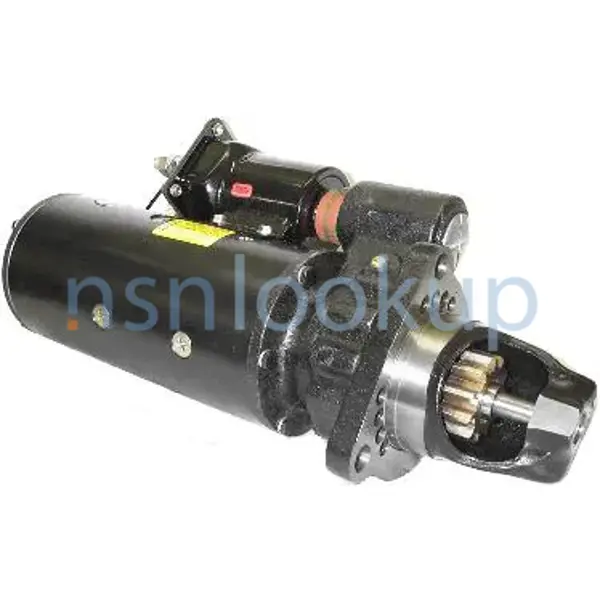

Electrical Engine Starter
2920010319027 010319027 MS53011-2
An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL. View more Electrical Engine Starter
September 2023
16
Product Information 2920-01-031-9027
Starter Motor for M35 2-1/2 Ton Truck
Marketplace 2920-01-031-9027
Request a Quotation from participating marketplace vendors
Related Documents 2920-01-031-9027 1+ Documents (More...)
MS53011-2 STARTER 4 EA NS Request Quotation Subscribe to View Vendor Details... 2920-01-031-9027 STARTER
RQST NE Updated Every Day 2920-01-031-9027 RQST Updated Every Day 2920-01-031-9027 RQST NE Related
Restrictions 2920-01-031-9027
IUID Required
2920-01-031-9027 is a Electrical Engine Starter Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2920-01-031-9027
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-01-031-9027
- US Army (A203)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- BD
- US Air Force (F2AZ)
- Effective Date:
- 1 Sep 2000
- Former MOE Rule:
- F1AZ
- Supplementary Receivers:
- TG
- US Marine Corps (MC02)
- Effective Date:
- 1 Apr 1991
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Aug 2001
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 2920-01-031-9027
- Part Number
- Manufacturer
- Status
- MS53011-2
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- 2920010319027
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2920-01-031-9027
- Characteristic
- Specifications
- FIIG
- Specifications
- A23400
- Armature Actuation Device Type [AKCW]
- Relay-Solenoid
- Engaging Mechanism To Armature Positional Relationship [AKCX]
- Straight
- Mounting Flange Shape Style [ADMD]
- Triangular
- Mounting Hole Circle Radius [ABUH]
- 2.875 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.663 Inches Nominal
- Lock Test Current Rating In Amps [AKCS]
- 500.0
- Shaft Rotation Direction [AKCT]
- Clockwise
- Special Features [FEAT]
- Mounting Flange Adjustable To 12 Positions. For M939a2 Series 5 Ton Trucks Only, Nsn 2920-01-515-8434 Replaces Nsn 2920-01-031-9027
- Voltage In Volts [ELEC]
- 24.0
Management Data 2920-01-031-9027
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Nov 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- R
- Refer To Net Price 373.00
- NET PRICE 373.00
- R
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- NT
- Tactical Vehicles
M939 Family of Vehicles (Includes M939A1 and M939A2)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SU
- AF SICA RESIDUAL MMAC-OO-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - P
- Expendable. Reparable. Condemn at Intermediate. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9A
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- A2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2920-01-031-9027
Freight Information 2920-01-031-9027
2920-01-031-9027 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 130385. A Sub NMFC of X. It has a NMFC Description of STARTERS ELEC MTRS I/C ENG. 2920-01-031-9027 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 2920-01-031-9027 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2920-01-031-9027 is not classified as a special type of cargo when transported by water. 2920-01-031-9027 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2920-01-031-9027
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 25.8" H x 13.6" W x 10.6" L
- --
- --
- --
- Special Requirements
- 25.8" H x 13.6" W x 10.6" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 4, corrosion preventive, solvent cutback, cold application, transparent, non-tacky
- Special Requirements – see Specific Instructions or Drawings provided
- Cushion, Anchor, Block or Brace as Required
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- Reusable container
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
