2920-01-024-4417

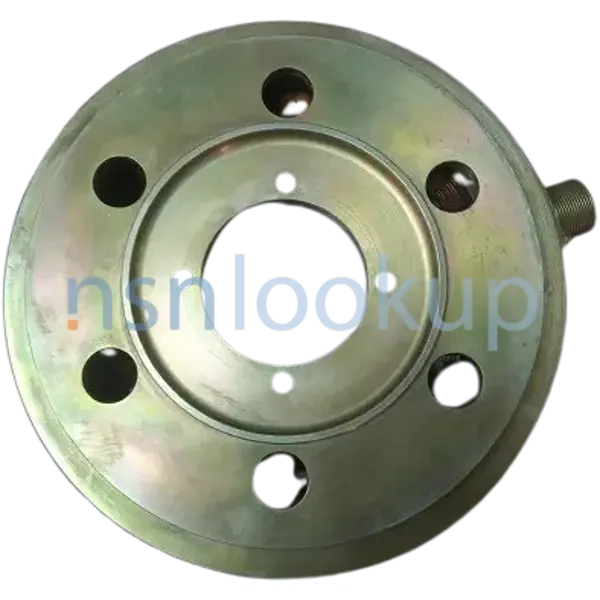

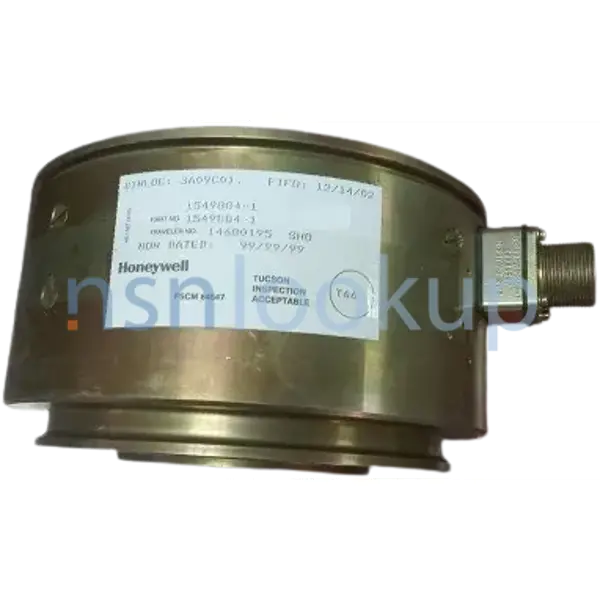

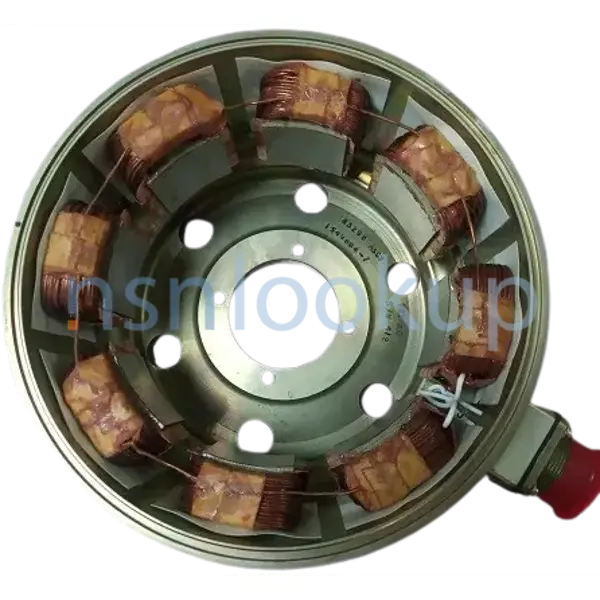

Engine Generator Stator
2920010244417 010244417 1549884-1
A stator which is a maintenance part of a GENERATOR, ENGINE ACCESSORY. View more Engine Generator Stator
July 2025
12
Marketplace 2920-01-024-4417
Request a Quotation from participating marketplace vendors
Related Documents 2920-01-024-4417 1+ Documents (More...)
RQST NE Updated Every Day 2920-01-024-4417 RQST Updated Every Day 2920-01-024-4417 RQST NE Related
Documents 2920-01-024-4417 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920
Restrictions 2920-01-024-4417
2920-01-024-4417 is a Engine Generator Stator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2920-01-024-4417
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-01-024-4417
- US Army (A202)
- Effective Date:
- 1 Apr 1996
- Former MOE Rule:
- A203
- US Marine Corps (MA5T)
- Effective Date:
- 1 Apr 1996
- Spain (YB01)
- Effective Date:
- 1 Feb 1998
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 2920-01-024-4417
- Part Number
- Manufacturer
- Status
- 1549884-1
- Manufacturer
- 64547 - Honeywell International, Inc (Active)
- Primary Buy
- Primary Buy
- 1549884-1
- 83298 - Allied Signal Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2920-01-024-4417
- Characteristic
- Specifications
- FIIG
- Specifications
- T130-F
- External Attachment Mounting Facilities [AWYW]
- Not Provided
- Frame [ABWP]
- Not Included
- Fsc Application Data [ZZZV]
- Generator,Engine,Nonaircraft
- Main Pole Quantity [AWTS]
- 8
- Terminal Quantity [AARA]
- 1
- Terminal Type [AARB]
- Connector, Plug
Management Data 2920-01-024-4417
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- EA
- Mar 2020
- Department of the Army (DA)
- EA
- Subscribe
- EA
- Oct 2019
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- L
- R
- Refer To Net Price 1687.62
- NET PRICE 1687.62
- R
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- JT
- Tanks
Recovery Vehicle, M51/M74/M88
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- A2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 2920-01-024-4417
Freight Information 2920-01-024-4417
2920-01-024-4417 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of Z. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI. 2920-01-024-4417 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2920-01-024-4417 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2920-01-024-4417 is not classified as a special type of cargo when transported by water. 2920-01-024-4417 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2920-01-024-4417
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 14.3" H x 12.3" W x 8.5" L
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- 14.9" H x 13.2" W x 9.1" L
- --
- --
- --
- Special Requirements
- 14.9" H x 13.2" W x 9.1" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
- A-A-1051, Paperboard Cushioning
- 1/4 inch thick
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- No special marking
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
