2920-01-024-4297
Electrical Engine Starter
2920010244297 010244297 MGL-4109 5704740M030SM SM 20702 20702-21-M030SM 318902 0389954 389954 02465-25-M030SM SM17916
An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL. View more Electrical Engine Starter
November 2023
9
Marketplace 2920-01-024-4297
Request a Quotation from participating marketplace vendors
Related Documents 2920-01-024-4297 5+ Documents (More...)
STARTER 1 EA NS Request Quotation SM-20702 STARTER 1 EA NS Request Quotation Updated Every Day 2920-
Updated Every Day 2920- /us 2920-01-024-4297 Electrical Engine Starter 2920010244297 MGL-41095704740M030SMSM
Documents 2920-01-226-7129 2+ Documents ( More https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920-01-024-4297
Electrical Engine Starter 2920010244297 41095704740M030SMSM 2070220702-21-M030SM318902038995438995402465
how to enable JavaScript in your web browser . 5360-01-082-5292Flat Spring5360010825292 010825292 318902
Electrical Engine Starter 2920010244297 4297Electrical Engine Starter2920010244297 010244297 MGL
www.nsnlookup.com /fsg-53/fsc-5360/us 5360-01-082-5292 Flat Spring 5360010825292 010825292,318902 318902
https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920-01-024-4297 Electrical Engine Starter 2920010244297
www.nsnlookup.com /fsg-59/fsc-5995/us 5995-01-214-4221 Radio Frequency Cable Assembly 5995012144221 318902
Upgrade your Account Upgrade 5995-01-214-4221Radio Frequency Cable Assembly5995012144221 012144221 318902
Restrictions 2920-01-024-4297
2920-01-024-4297 is a Electrical Engine Starter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2920-01-024-4297
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-01-024-4297
- US Coast Guard (C911)
- Effective Date:
- 1 Aug 2006
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2920-01-024-4297
- Part Number
- Manufacturer
- Status
- 5704740M030SM
- Manufacturer
- 24956 - United Technologies Corp (Active)
- Primary Buy
- Primary Buy
- 0389954
- 1UVT5 - Brp Us Inc (Active)
- Primary Buy
- Primary Buy
- 389954
- 1UVT5 - Brp Us Inc (Active)
- Secondary Buy
- Secondary Buy
- SM 20702
- 01843 - Ambac International Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 20702-21-M030SM
- 24956 - United Technologies Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SM 20702
- 24956 - United Technologies Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 318902
- 80256 - Outboard Marine Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 0389954
- 21119 - Evinrude Motors (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 389954
- 80256 - Outboard Marine Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 318902
- 21119 - Evinrude Motors (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 389954
- 32195 - Outboard Marine Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 0389954
- 32195 - Outboard Marine Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 0389954
- 80256 - Outboard Marine Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 389954
- 21119 - Evinrude Motors (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 318902
- 32195 - Outboard Marine Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 02465-25-M030SM
- 01843 - Ambac International Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SM17916
- 01843 - Ambac International Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MGL-4109
- 19728 - Prestolite Div Of Bunker Ramo-Eltra (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 2920-01-024-4297
- Characteristic
- Specifications
- FIIG
- Specifications
- A23400

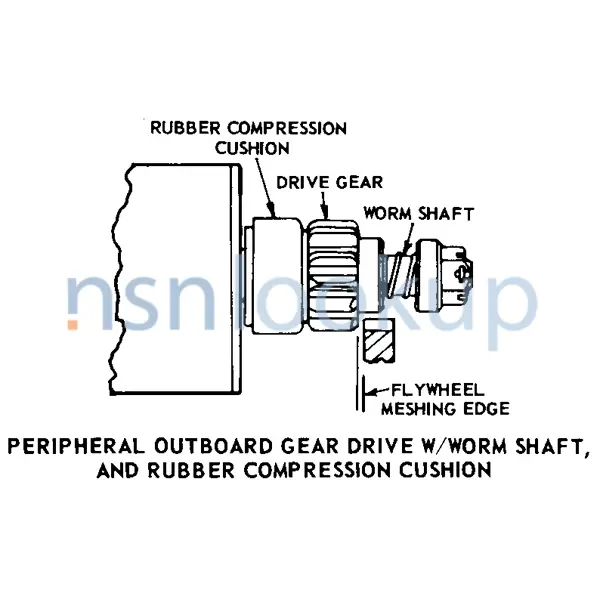

- Engaging Mechanism Style [AKCP]
- Peripheral Outboard Gear Drive W/Worm Shaft, And Rubber Compression Cushion
- Voltage In Volts [ELEC]
- 12.0
- Lock Test Current Rating In Amps [AKCS]
- 585.0
- Shaft Rotation Direction [AKCT]
- Counterclockwise
- Armature Actuation Device Type [AKCW]
- Switch
- Engaging Mechanism To Armature Positional Relationship [AKCX]
- Straight
- Terminal Type And Quantity [TTQY]
- 1 Threaded Stud
- Features Provided [CBBL]
- Submersible
DLA Procurement Analysis 2920-01-024-4297
Management Data 2920-01-024-4297
Navy
- Cognizance:
- 3B
NATO Stock Numbers Related to 2920-01-024-4297
Freight Information 2920-01-024-4297
2920-01-024-4297 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 130385. A Sub NMFC of X. It has a NMFC Description of STARTERS ELEC MTRS I/C ENG. 2920-01-024-4297 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 2920-01-024-4297 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2920-01-024-4297 is not classified as a special type of cargo when transported by water. 2920-01-024-4297 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2920-01-024-4297
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 2920-01-024-4297 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
