2920-00-986-3924
Electrical Engine Starter
2920009863924 009863924 SA547 C3NF11002C
An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL. View more Electrical Engine Starter
August 2023
15
Marketplace 2920-00-986-3924
Request a Quotation from participating marketplace vendors
Related Documents 2920-00-986-3924 3+ Documents (More...)
BUY NE FedMall Updated Every Day 2920-00-986-3924 RQST NE Updated Every Day 2920-00-986-3924 RQST
) https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920-00-986-3924 Electrical Engine Starter 2920009863924
Electrical Engine Starter 2920009863924 RQST NE Updated Every Day 2920-00-986-3924 RQST https//
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NAConsolidated With 2920-00-986-3924
Restrictions 2920-00-986-3924
2920-00-986-3924 is a Electrical Engine Starter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2920-00-986-3924
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-00-986-3924
- US Air Force (FUGC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FUAX
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Supplementary Collaborators:
- GTHD
Approved Sources 2920-00-986-3924
- Part Number
- Manufacturer
- Status
- C3NF11002C
- Manufacturer
- 00501 - New Holland N.V.Nc. (Active)
- Primary Buy
- Primary Buy
- C3NF11002C
- 57526 - Ford Motor Company (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- C3NF11002C
- 23040 - Ford Motor Co Ford Parts And Service (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- SA547
- 00501 - New Holland N.V.Nc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 2920-00-986-3924
- Characteristic
- Specifications
- FIIG
- Specifications
- A23400
- Armature Actuation Device Type [AKCW]
- Relay
- Engaging Mechanism To Armature Positional Relationship [AKCX]
- Straight
- Mounting Flange Angular Deviation In Deg [AKDB]
- 120.0
- Mounting Flange Shape Style [ADMD]
- Triangular
- Mounting Hole Circle Radius [ABUH]
- 2.700 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.375 Inches Minimum And 0.377 Inches Maximum

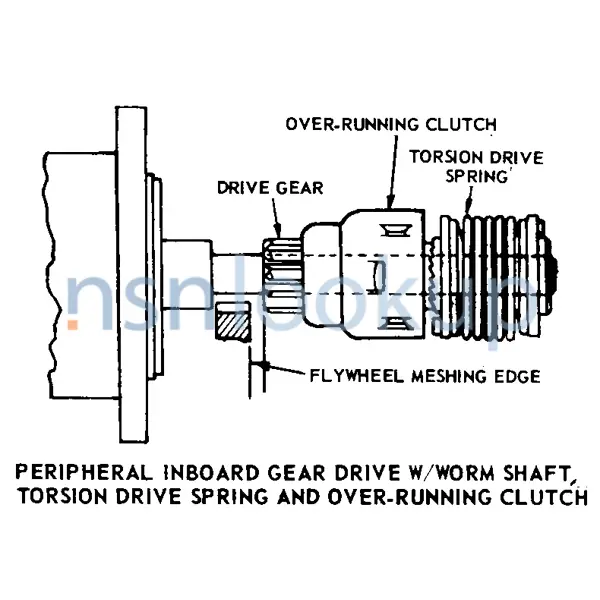

- Engaging Mechanism Style [AKCP]
- Peripheral Inboard Gear Drive W/Worm Shaft, Torsion Drive Spring And Over-Running Clutch
- Shaft Rotation Direction [AKCT]
- Clockwise
- Voltage In Volts [ELEC]
- 12.0
- Terminal Type And Quantity [TTQY]
- 1 Threaded Stud
Weapon Systems (WSDC) 2920-00-986-3924
DLA Procurement Analysis 2920-00-986-3924
Management Data 2920-00-986-3924
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 2920-00-986-3924
Freight Information 2920-00-986-3924
2920-00-986-3924 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of Z. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI. 2920-00-986-3924 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 2920-00-986-3924 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2920-00-986-3924 is not classified as a special type of cargo when transported by water. 2920-00-986-3924 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2920-00-986-3924
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 2920-00-986-3924 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
