2920-00-905-0605
Engine Generator Regulator
2920009050605 009050605 1118434 5912
A regulator designed to automatically maintain the current and/or voltage output of an engine generator within specified limits, regardless of variation of load or input voltages. May include cutout relay. Does not include items in which regulation is accomplished by transformer action. See also REGULATOR, CURRENT and REGULATOR, VOLTAGE. View more Engine Generator Regulator
January 2023
17
Marketplace 2920-00-905-0605
Request a Quotation from participating marketplace vendors
Related Documents 2920-00-905-0605 3+ Documents (More...)
1118434 RQST NE Updated Every Day 2920-00-905-0605 RQST NE Updated Every Day 2920-00-905-0605 RQST Updated
Every Day 2920-00-905-0605 RQST NE Related Documents 2920-00-905-0605 2+ Documents ( More... ) https
,ENGINE GENERATOR 3 EA NS Request Quotation Subscribe to View Vendor Details... 5912 REGULATOR,ENGINE
99 EA NS Request Quotation Subscribe to View Vendor Details... 5912 REGULATOR,ENGINE GENERATOR 8 EA
Restrictions 2920-00-905-0605
2920-00-905-0605 is a Engine Generator Regulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2920-00-905-0605
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-00-905-0605
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2920-00-905-0605
- Part Number
- Manufacturer
- Status
- 1118434
- Manufacturer
- 16764 - General Motors Corp Delco Remy Div (Replaced)
- Original Design
- Original Design
- 1118434
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1118434
- 61928 - General Motors Corp Ac-Delco Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5912
- 16764 - General Motors Corp Delco Remy Div (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1118434
- 1LW55 - Borgwarner Pds (Anderson), L.L.C. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 2920-00-905-0605
- Characteristic
- Specifications
- FIIG
- Specifications
- A18400
- Angle Between Open Slots In Deg [APBE]
- 90.0
- Angle Between Plain Holes In Deg [APBD]
- 100.0
- Center To Center Distance Between Hole And Open Slot Along Width [APBA]
- 1.000 Inches Nominal
- Circuit Control Device Type [ANYR]
- Cutout Relay
- Cut-In Voltage Rating [ANYS]
- 6.0 Minimum And 7.1 Maximum
- Environmental Protection [ADZC]
- Corrosion Resistant And Fungus Resistant
- Field Relay Unit [ANZC]
- Not Included
- Mounting Facility Radius [APBC]
- 2.220 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.225 Inches Minimum And 0.230 Inches Maximum

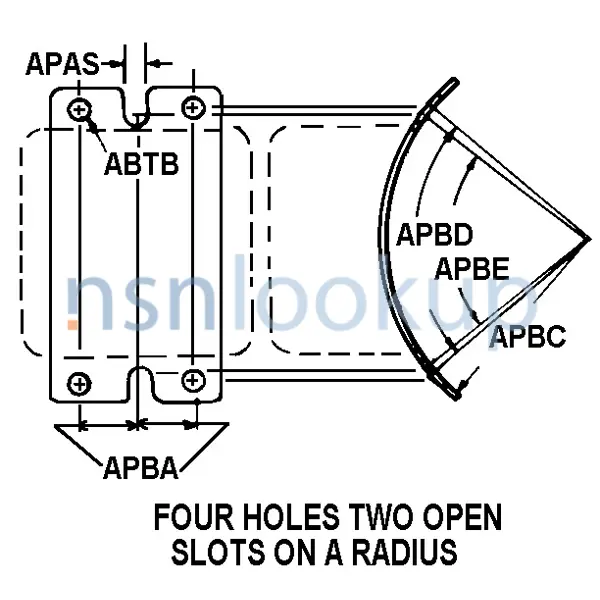

- Mounting Style [ADER]
- Four Holes Two Open Slots On A Radius
- Open Slot Width [APAS]
- 0.220 Inches Nominal
- Output Voltage Rating In Volts [ANPP]
- 6.9 Minimum And 7.5 Maximum
- Radio Interference Shielding [ALBH]
- Not Provided
- Reverse Current Overload Circuit Breaker [ANZB]
- Not Included
- Shock Mount [AGBC]
- Not Provided
- Voltage Regulator Unit Type [ANYE]
- Wire Wound Coil
- Voltage Regulator Unit Quantity [ANYH]
- 1
- System Ground Polarity [ANYD]
- Negative Or Positive
- System Voltage Rating [ANYC]
- 6.0
- Terminal Encasement [ANZE]
- Not Encased
- Terminal Quantity [AARA]
- 3
- Terminal Type [AARB]
- Screw
Similar Supply Items to 2920-00-905-0605
Freight Information 2920-00-905-0605
2920-00-905-0605 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062920. A Sub NMFC of Z. It has a NMFC Description of REGULATORS INDUCTION/VOLTAGE. 2920-00-905-0605 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35120 which rates the freight between FCL and LCL. 2920-00-905-0605 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 2920-00-905-0605 is not classified as a special type of cargo when transported by water. 2920-00-905-0605 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2920-00-905-0605
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
